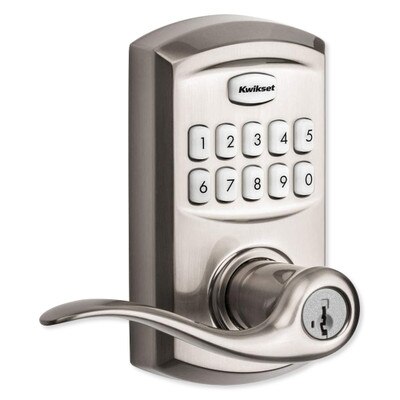

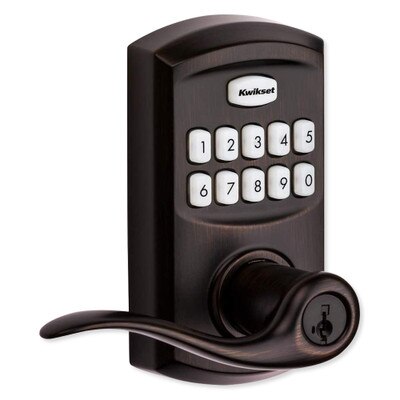

Kwikset Smartcode 917 Residential Electronic Tustin Lever
Product Description
Combine the convenience of keyless entry with the highest residential security grade by installing the Kwikset Smartcode 917 Residential Electronic Lever. Perfect for office doors, storage closets or interior garage doors, the SmartCode 917 delivers the right access solution to make your life more convenient, more stylish and more secure.
The SmartCode 917 residential electronic lever has been tested in three areas most important to homeowners: security, durability, and finish. It is BHMA certified AAA – the highest residential security rating available. It also features SmartKey Security to protect against advanced break-in techniques.
- 30 User Codes: Customize up to 30 unique user codes for controlled access
- Optional programming code allows for management of lock settings from the exterior keypad instead of the programming button in the interior
- The 9V battery will last up to three years, depending on lock usage
- Reversible lever to fit right-hand and left-hand doors
- Optional one-time access code for emergencies
- Keypad can be disabled entirely for entry using key only for long periods of inaccessibility
- BHMA Class AAA Highest Residential Rating
In The Box:
- Kwikset Smartcode 917 Residential Electronic Lever
- Mounting Hardware
- Installation Hardware
- 9V Battery
- User Manual
NOTE: Do not use an electric drill or an electric screwdriver to tighten screws.
Tech Specs
- Part Number:
- Satin Nickel: 99170-001
- Venetian Bronze: 99170-002
- Batteries: 9V battery (included)
- Battery Life: Up to 3 years
- Door Thickness Range: 1-3/8 to 1-3/4 inches thick
- Door Prep:
- Cross Bore 2- 1/8 inches
- Edge Bore 1 inch
- Backset: 2-3/8 or 2-3/4 inches
- Faceplates: 1 x 2-1/4 inches round corner standard
- Strikes: 2-1/4 inches full lip round corner
- Latch: Adjustable 2-3/8 x 2-3/4 inches
- Bolt: 1/2 inch throw, dead latch
- Door Handing: Reversible for right or left-handed doors
- Cylinder: SmartKey Security
- UL Rating: 20 min
- Interior Dimensions: 5-5/8 x 5-3/8 x 2-29/32 inches
- Exterior Dimensions: 5-19/32 x 5-5/32 x 3-3/32 inches
- Operating Temperatures:
- Outside escutcheon: -40°F to 150°F (-40°C to 65°C)
- Inside escutcheon: 32°F to 130°F (0°C to 54°C)
- Certifications: BHMA certified AAA
- Warranty:
- Lifetime Mechanical and Finish Warranty
- 1 Year Electronic Warranty
