Leviton Decora Plus Duplex Receptacle, Residential Grade, 15A
Product Description
Leviton's Residential Grade Decora Duplex Receptacle supports devices rated for all residential applications in a variety of standard configurations. The receptacles come in an array of colors and are designed with thermoplastic, shallow build design for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
- Body and Face Material: Thermoplastic
- NEMA: 5-15R
- Pole: 2
- Wire: 3
- Strap Material: Steel
- Termination: Quickwire Push-In & Side
Tech Specs
- Part Number:

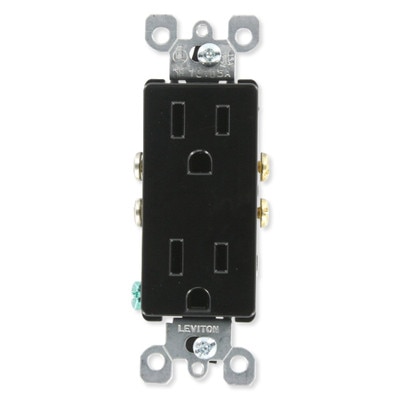

- Black: 5325-E

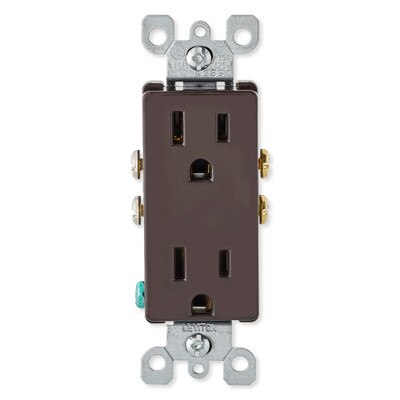

- Brown: 5325

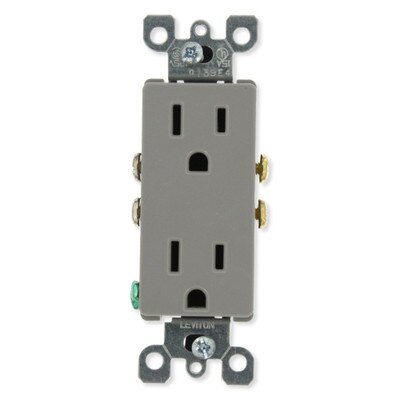

- Gray: 5325-GY

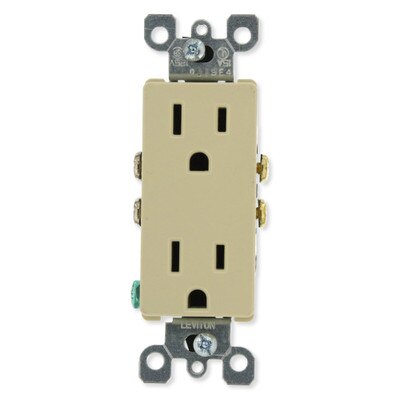

- Ivory: 5325-I

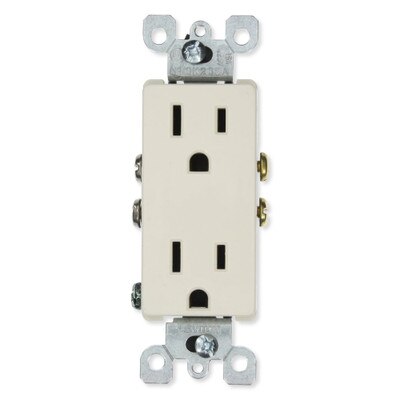

- Light Almond: 5325-T

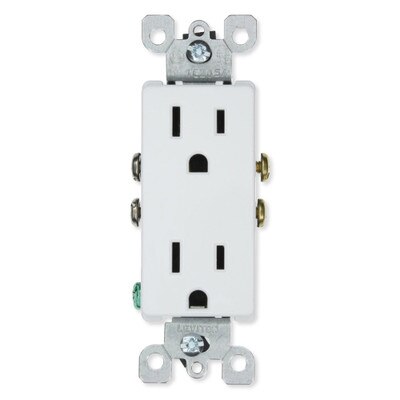

- White: 5325-W
- Electrical Ratings:
- Amperage: 15 A
- Voltage: 125 VAC
- Environmental Specifications:
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Material Specifications:
- Ground Clips: Brass-Plated
- Grounding Screw: Steel 8-32
- Strap Material: Steel
- Terminal Screws: Brass
- Mechanical Specifications:
- Terminal Accommodation: 14-12 AWG
- Terminal ID: Brass-Hot, Green-Ground, White-Neutral
- Standards and Certifications:
- CSA C22.2 No. 42: File 152105; Class 6233-01
- NOM Certified: 057
- UL 498: File E13399
- UL Listed: File E-13399
- Warranty: 2 Year Limited
