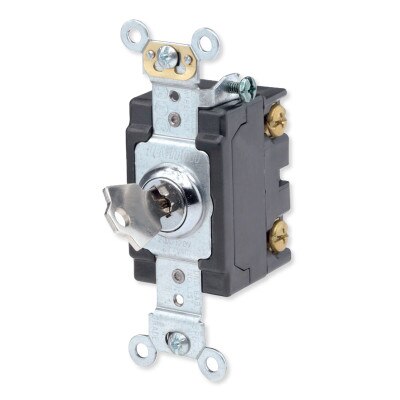

Leviton Extra Heavy-Duty AC Key Locking Switch
Product Description
The Leviton Extra Heavy-Duty AC Key Locking Switch is a high-quality, secure solution for controlling electrical circuits in both residential and commercial applications. Built for durability, this key-operated switch provides ON/OFF access to authorized personnel, making it ideal for schools, institutions, public housing, trailer parks, loading docks, freight yards and other facilities. Its tamper-resistant design ensures only authorized users can operate the switch, providing an added layer of security for sensitive or high-traffic areas. The device is ideal for situations where accidental or unauthorized activation needs to be prevented.
- Key-operated locking switch prevents unauthorized use
- Built for heavy-duty applications with durable construction
- Rated for 20 amps and 120/277 volts AC
- Compatible with standard electrical boxes for easy installation
- Sleek and professional design to suit any environment
Why You Would Use This Product:
The Leviton Extra Heavy-Duty AC Key Locking Switch is perfect for controlling critical circuits where access needs to be restricted. For example, you can use it to control lighting in a private office or workshop, ensuring only authorized personnel can turn the lights on or off. It's also a great choice for securing power to machinery, garage doors, or outdoor lighting systems. The key locking feature is ideal for preventing accidental activation of circuits in schools, warehouses, or shared living spaces, adding peace of mind and security to your setup.
In The Box:
- Leviton Extra Heavy-Duty AC Key Locking Switch
- Installation Guide
Notes:
- ONLY use with copper or copper clad wires.
- DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents.
- Speciality wallplate sold separately.
Tech Specs
- Part Number: 1221-2KL
- UPC: 078477361986
- HP Rating: 1HP-120V 2HP-240V-277V
- Flammability: Rated V-2 per UL 94
- Product ID: Ratings are permanently marked on device
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Accom: 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination: Back or Side Wire
- Amperage: 20 A
- Dielectric Voltage: Withstands 1500V for 1 minute
- Endurance: 50,000 cycles minimum
- Grounding: Self-Grounding
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 30 degrees C rise
- Voltage: 120/277 VAC
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Max. Amperage: 16 Amp
- Body Material: Thermoplastic
- Strap Material: Steel
- Wallplate: Not Included
- Standards and Certifications:
- ANSI: C-73
- CSA C22.2 No. 111: File #152105
- NEMA: WD-1 & WD-6
- NOM: 057
- UL Standard: UL 20
- Warranty: 10-Year Limited
