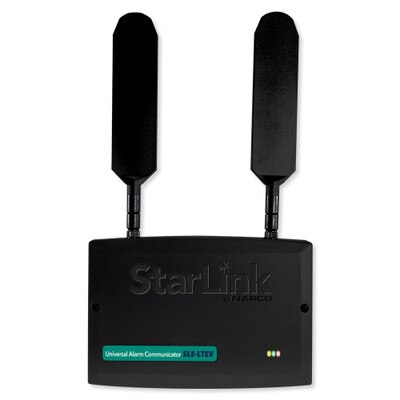

Napco StarLink Sole Path Verizon LTE Intrusion Radio

$116.85
SKU: NPSLELTEV

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Napco StarLink Sole Path Verizon LTE Intrusion Radio connects your security system to Verizon Wireless LTE Networks to ensure constant connectivity between your system, your smart device, and a central monitoring station.

Features:

  • Works with ALL Napco panels and applications, NO special equipment or radio activation fee required
  • Dual Diversity Antenna – Precision LTE antennae design for maximum signal speed & range, place unit up to 100 feet from the control panel for best antenna location
  • Patented Signal-Boost™ Technology super-amplifies alarm signals and wave shapes for unprecedented reliability even in remote/fringe areas
  • Secure Encrypted Communications & UL Network Operations Center (NOC)-StarLink radios will securely report full data to any central station
  • Panel-Powered Technology™, low 71mA current draw
  • Cellular or Optional Dual Path Cell &/or IP Communications
  • Easiest, fastest installation & activation with auto-dialer capture
  • Over-the-Air Upgradeable Firmware allows for critical/mandatory updates
  • My StarLink Remote On/Off Consumer App for Remote Arm/Disarm any panel brand w/ key switch input, with the option for email/text message notifications
  • Takeover Feature – Easily captures any panel's existing CS phone number and allows rerouting to another central without going to the panel

Tech Specs

  • Part Number: SLE-LTEV
  • UPC: N/A
  • Housing: Durable ABS plastic (black) includes three keyhole slots for mounting (easy alignment with triple gang boxes)
  • Diagnostic LED Indicators:
    • Green: Signal Strength
    • Amber: Busy/Activation
    • Red: Trouble
  • Electrical Ratings:
    • Input Voltage: 11-15VDC
    • Input Current: 71mA with peak RF transmission current of 200mA
  • Ratings for IN 1 Burg/Fire Input:
    • Input Voltage: 9-15VDC
    • Maximum Input Current: Up to 2mA
  • Ratings for IN 2 and IN 3:
    • Maximum Loop Voltage: 15VDC
    • Maximum Loop Current: 1.2mA
    • End of Line Resistor (EOLR) Value: 10K
  • PGM Output (3) Ratings:
    • Open Collector Outputs: 3V Max., active; 15V Max., inactive
    • PGM Sink Current: 50mA, Max
  • Environmental Ratings:
    • Operating Environment: 0 to 49° C (32-120°F)
    • Humidity: Maximum 93% (non-condensing)
  • Dimensions: 5-3/8"x 7-7/8"x 1-7/8" (HxWxD)
  • Weight: 13.5 oz
  • Warranty: 3 Year
