Napco iBridge Touchscreen
Product Description

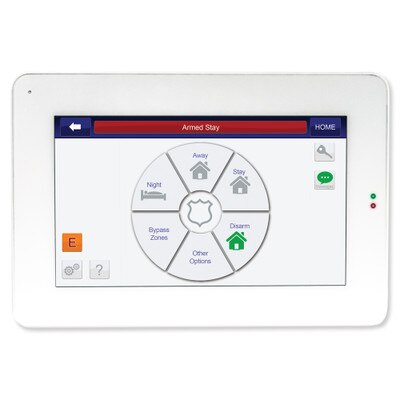

The Napco iBridge Touchscreen is a high-resolution LCD touchscreen tablet that provides seamless access to all the features of your Gemini security system. The touchscreen is simple to use, with intuitive menu-driven icons and prompts to help guide you.
- Touch screen control of the security system
- The model IBR-TOUCH connects to the Gemini security system 4-wire bus
- Integrated IP video viewing of cameras
- High-speed, powerful quad-core processor
- Large high-resolution 1024 x 600 pixel display for clarity
- Intuitive capacitive touchscreen display with icons and menu-driven prompts
- 802.11 Wireless Wi-Fi Connectivity
- Entry/Exit countdown displayed
- Add or delete User Codes
- Quickly and easily bypass zones
- The touchscreen is one part of the integrated Napco iBridge Remote Control Services that include a virtual keypad, Z-Wave® Home Controls, and integrated video
In The Box:
- iBridge Touchscreen
- Rear Mounting Case
- Mounting Hardware
- Manual
NOTES: Requires integration with the StarLink Connect Dual Path Communicator or IBR-ZRemote (both sold separately) for controlling Z-Wave devices. Compatible with the following control panels: GEMP816, GEM-P1632, GEM-P1664, GEM-P3200, GEM-P9600, and GEM-X255. DSC and Honeywell keypad skins are supported for use with the IBR-TOUCH and IBR-TOUCH-WL tablets only when used with a StarLink Connect communicator and when the "Wi-Fi Only Mode" selection is enabled in the tablet's administrator settings. The hardwired IBR-TOUCH tablet's 4-wire bus wires are for connection to NAPCO control panels only.
Tech Specs
- Part Number: IBR-TOUCH
- LCD Size: 7-inch digital screen
- Screen On Idle: 300mA
- Clicking Menu Items: 380mA
- Speaker: 1 Integral 2W
- Wi-Fi: 802.11b/g/n with integral antenna
- CPU: Quad-core processor, (up to 1.6GHz)
- Resolution Ratio: 1024 x 600 x, 16:9 aspect ratio, 16.7 million colors
- Pixels: 1024 x RGB (3) x 600
- Touchscreen: Digital and full-screen, capacitive
- Power: Supplied from the control panel keypad bus
- Operating Temperature: 32-120°F (0-49°C)
- Dimensions: 5.38(W) x 7.87(H) x 0.88(D) inches (13.7 x 20 x 2.2 cm)
Product Docs
- Napco IBR-TOUCH/IBR-TOUCH-WL iBridge Touchscreen 7 In. Color Touchscreen for Security, Video, Smart Home and Business Specs
- Napco IBR-TOUCH/IBR-TOUCH-WL iBridge Touchscreen Touchscreen Tablets Quick Start
- Napco IBR-TOUCH/IBR-TOUCH-WL iBridge Touchscreen Touchscreen Tablets Instructions
- Napco IBR-TOUCH/IBR-TOUCH-WL iBridge App User Manual
