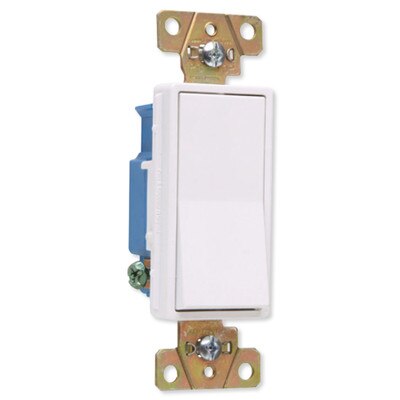

On-Q/Legrand 3-Way Decorator Wall Switch, Construction Grade
Product Description
The On-Q/Legrand 3-Way Decorator Wall Switch, Construction Grade, is engineered for durability and efficiency, making it an ideal choice for both residential and commercial spaces. The construction-grade build ensures longevity, capable of withstanding the demands of high-traffic areas. Featuring a stylish decorator design, it seamlessly integrates into your home's aesthetics while providing a reliable solution for managing your lighting setup. The three-way functionality adds a layer of flexibility, allowing you to control your lights from multiple locations. On-Q/Legrand, a leader in home automation, delivers a high-quality wall switch that combines durability, style, and functionality.
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 – #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
Why You Would Use This Product:
This switch offers unparalleled flexibility, allowing you to create the perfect ambiance for any situation. Whether it's enhancing the atmosphere for a cozy movie night or ensuring safe navigation through your home at night, this wall switch is the key. Homeowners looking to upgrade their lighting control and contractors seeking a reliable construction-grade solution will find this product to be a valuable asset.
NOTE: Does not include wallplate.
Tech Specs
- Part Number: 2603W
- Number Of Poles: 3-way
- Wiring: Back and Side
- Style: Decorator
- Color: White
- Amps: 15A
- Volts: 120/277VAC
- Dimensions: 1.06(D) x 3.531(H) x 1.3(W) inches
- Country Of Origin: Mexico
- Buy American Act Status: Trade Agreement Act Compliant
- Approvals: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches. CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111
- General Use Snap Switches.
- CSA Listing Info: C22.2 111
- CSA Standard: Yes
- UL Listing No: 20
- UL Standard: Yes
- UN SPSC: 39121507
- Warranty: 1 Year
Electrical
- Dielectric Withstand Voltage: 1500V Minimum
- Maximum Working Voltage: 277VAC
- Overload: Minimum 4.8 times rated current for 100 cycles
- Temperature Rise: 30°C maximum at rated current
- Maximum Continuous Current: 277VAC
- Endurance: 10,000 cycles minimum, resistive, inductive, tungsten filament lamp load
Mechanical
- Terminal Accommodations: #14 AWG – #10 AWG
Environmental
- Flammability: UL94 V2
Materials
- Back Body: Polycarbonate
- Frame: Polycarbonate
- Paddle: Thermoplastic
- Terminals: Brass
- Terminal Screws: Tri-Drive Brass-Plated Steel
- Strap: Steel
- Pressure Plate: Steel
- Contacts: Silver Cadmium Oxide
- Spring Arm: Brass
- Bumper: Rubber
- Spring: Zinc-Plated Steel
- Ground Terminal: Brass
- Ground Screw: Tri-Drive Zinc-Plated Steel
