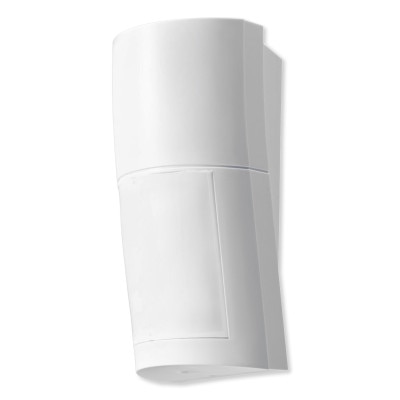

Optex 120-Degree Wide Angle Outdoor PIR & Microwave Dual-Tech Motion Detector, Anti-Masking

$117.82 to $134.26
SKU: OPQXIxDT

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Optex QXI Wide Angle Outdoor PIR & Microwave Dual-Tech Motion Detector with Anti-Masking is a 120° motion sensor that utilizes PIR and microwave motion detecting technology to notice movement up to 40ft away. With its wide and comprehensive field of view and the ability to tailor its settings to meet the environment around your premise, the WXS Series will provide an effective solution for new & existing security systems.

  • Dual Motion Detection Zones: QXI sensors emit PIR and microwave waves to track movement. When a subject enters the PIR and microwave fields at the same time, the sensor notifies you.
  • Reduce/Eliminate False Alarms: Dual motion detection zones reduces the likelihood of false alarms caused by other motion sensors noticing small objects entering the monitored area
  • Smart Anti-Masking Notifications: QXI sensors detect covering objects on the lens surface, whether from intentional tampering or environmental factors.
  • Pet Alley Patterns: Available for low mount installations, narrow the motion detection field to allow small animals to pass through without triggering the sensor.
  • Selectable Mounting Height: QXI series sensors optimal installation heights range between 2'7 ft to 9ft. 4ft and lower installations are considered "Low Mounting" with a max PIR range of 40ft. 9ft to 4ft installations are considered "High Mounting" with a max range of 30ft. Higher mounting reduces the likelihood of vandalization or lens masking.
  • Screw-Free Design: You can open / close the front cover and remove / put the main unit without any screws, shortening install times.

In The Box:

  • 120° Panoramic Outdoor PIR & Microwave Dual-Tech Motion Detector, Anti-Masking
  • Locking Screw
  • Area Masking Strips
  • 2 x 4x12mm Mounting Screws (QXI-DT Only)
  • 3 x 4x12mm Mounting Screws (QXI-RDT Only)
  • Dummy battery and connector for ALARM (QXI-RDT Only)
  • Connector for TROUBLE Output (QXI-RDT Only)

Tech Specs

  • Part Number:
    • QXI-DT: Hard Wired
    • QXI-RDT: Wireless
  • Detection Method:
    • QXI-DT: Passive Infrared & Microwave
    • QXI-RDT: Passive Infrared & Microwave

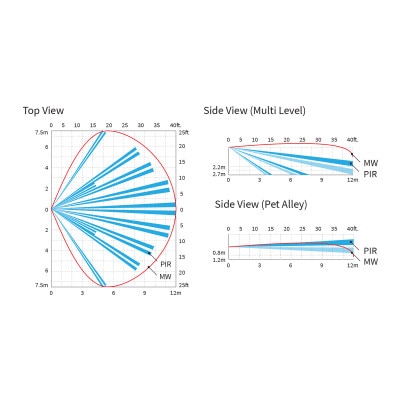

  • PIR Coverage: 12 m (40 ft) 120° wide
  • PIR Zones:
    • Multi level: 40 zones
    • Pet alley: 18 zones
  • Detectable Speed: 0.3 to 2.0 m / s (1' to 6'7" / s)
  • Sensitivity: 3.6 °F (2.0 °C) at 0.6 m/s
  • Power Input:
    • QXI-DT: 9.5 to 16 V DC
    • QXI-RDT: CR123A (3 V DC) *Not included
  • Current Draw:
    • QXI-DT: 30 mA max. at 12 V DC
    • QXI-RDT: 16 μA stand-by / 11 mA max. at 3 V DC
  • Alarm Period: 2.0 ± 0.1 sec.
  • Warm-Up Period: 60 sec. or less (LED blinks)
  • Alarm (R) Output:
    • QXI-DT: N.C/N.O. switchable, 28 V DC 0.1 A max.
    • QXI-RDT: N.C/N.O. switchable solidstate switch, 3 V DC 0.01 A max.
  • Alarm (L) Output:
    • QXI-DT: N.C. / N.O. Selectable 28 V DC 0.1 A max.
    • QXI-RDT: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Trouble Output:
    • QXI-DT: N.C. 28 V DC 0.1 A max.
    • QXI-RDT: N.C/N.O. switchable solid state switch, 3 V DC 0.01 A max
  • Tamper Output (QXI-DT Only): N.C. 28 V DC 0.1 A max. Open when the cover is opened
  • LED indicator (Red):
    1. Warm-up
    2. Alarm
    3. Walk test end
    4. Blocking detection
  • LED indicator (Yellow):
    1. Warm-up
    2. Alarm
    3. Walk test end
  • Operation Temperature: -40 to 113°F (-40 to 45°C)
  • Environment Humidity: 95% max.
  • International Protection: IP 54
  • Mounting: Wall
  • Mounting Height/Weight:
    • Multi level: 7'3" to 8'11" (2.2 to 2.7 m )
    • Pet alley: 2'7" to 4' (0.8 to 1.2 m)
  • Weight:
    • QXI-DT: 195 g (6.88 oz. / 0.43 lbs)
    • QXI-RDT: 230 g (8.11 oz. / 0.5 lbs)
