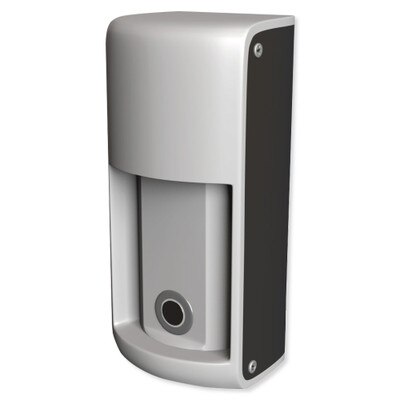

Optex 18' Range Microwave & Ultrasonic Vehicle Presence Sensor


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Optex OVS-01GT 18' Range Microwave & Ultrasonic Vehicle Presence Sensor detects the presence of moving or stationary vehicles and has the ability to ignore human movement. Unlike other vehicle sensors, it installs above the ground, eliminating the need for cutting concrete and the installation of a ground loop. The OVS-01GT can be mounted 2 to 3 feet off the ground and can detect both small and large vehicles. Its detection area can be customized with 8 range settings, 5 sensitivity settings and one-touch calibration, plus, it has 5 selectable menu setting options to ignore human movement. An easy to use menu with visual indicators provides a simple and quick installation.

  • Vehicle detection is ensured by a combination of microwave and ultrasonic wave
  • A microwave sensor can detect the presence of a vehicle based on FMCW (Frequency-Modulated Continuous-Wave)
  • Detection of objects other than a vehicle can be reduced
  • Built-in heater reduces snow on the sensor (automatically activates based on the outside air temperature)
  • Not affected by underground obstructions, this product is installed above ground
  • Reduced installation time as access road for vehicle is not closed, as no civil engineering works is required

In The Box:

  • Vehicle Presence Sensor
  • (4) Screws
  • Installation Manual

NOTE: Always install the sensor on the vertical pole that is mounted in or on the ground. Installing a sensor on a tilted pole will result in a detection of the ground by the ultrasonic sensor and correct operation is not ensured.

Tech Specs

  • Part Number: OVS-01GT
  • Detection Method: Microwave (Doppler shift and FMCW)/Ultrasonic combination
  • Frequency: Microwave: 24GHz, Ultrasonic: 56KHz
  • Response Time: 500msec
  • Power Supply: 12-24VDC
  • Current Consumption:
    • Max 200mA (at 24VDC) with Heater ON
    • Max 80mA (at 24VDC) when Heater is OFF
  • Output: Relay output DC30V, 0.3A (NO/NC selectable)
  • Input: NO/NC input
  • Detection Range:
    • Microwave: 6.56 to 18.04 feet (2 to 5.5m) programmable maximum range
    • Ultrasonic: 1.97 to 3.28 feet (0.6 to 1m) programmable maximum range
  • Detectable Vehicle Speed: 1.24mph-12.43mph (2 to 20km/h)
  • Parameters:
    • Sensitivity: Level 1 to 5
    • Human Cancel Adjust: Level 1 to 5
    • Presence Detection Timer: 5/60/180/Infinity min
    • Sensitivity Boost Timer: Off/5/10/20/40 sec
    • Input: Wake L/Wake H/Inhibit L/Inhibit H
    • Output: NO/NC
    • Microwave Max. Range: 6.56/8.2/9.84/11.48/13.12/14.76/16.4/18.04 feet (2/2.5/3/3.5/4/4.5/5/5.5m)
    • Ultrasonic Max. Range: OFF/1.97/2.62/3.28 feet (OFF/0.6/0.8/1m)
    • Sensor Mode: Activation/Vehicle Protection
  • Indicator:
    • Normal Operation: Stand-by: Solid Green, Detection: Solid Red
    • Detection Area Check:
      • Non-detection: Blinking Green
      • Microwave sensor detected: Blinking Yellow
      • Ultrasonic sensor detected: Blinking Purple
      • Microwave/Ultrasonic sensor detected: Blinking Red
    • Calibration:
      • In calibration: Fast blinking blue
      • Ultrasonic calibration error: Blinking red and blue
    • Sensor Reset: Reset completed: Blinking yellow for 2 seconds
  • Human Cancellation: Available from Level 1 to 5
  • Operation Temperature: -22°F to 122°F (-30°C to 50°C)
  • Operation Humidity: 95% max. (non-condensing)
  • International Protection Code: IP65
  • Installed Condition: Indoor/Outdoor
  • Installation Height: Installation Height of 19.69 inches (500mm)
  • Horizontal Angle Adjustment: Horizontally: ±30 deg. (5 deg. steps)
  • Weight: 480g (Including accessories)
  • Credentials: FCC
