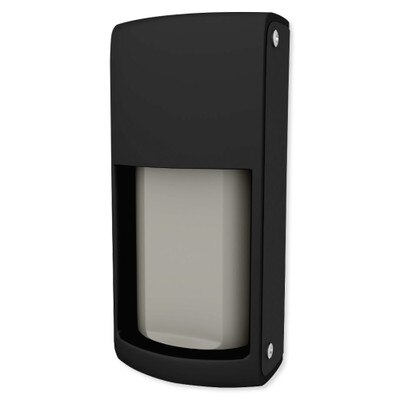

Optex 26' Range Microwave Vehicle Presence Sensor with Car Counting


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Optex OVS-01CC 26' Range Microwave Vehicle Presence Sensor with Car Counting detects the presence of moving or stationary vehicles. It also has the ability to ignore human movement and uses doppler shift and FMCW technologies to count cars. Unlike other vehicle sensors, it installs above the ground, eliminating the need for cutting concrete and installing a ground loop. The OVS-01CC can be mounted 2 to 3 feet off the ground and can detect both small and large vehicles. Its detection area can be customized with 8 range settings, 5 sensitivity settings and one-touch calibration, plus, it has 5 selectable menu setting options to ignore human movement. An easy to use menu with visual indicators provides a simple and quick installation.

  • The sensor can count moving vehicles by using dual detection technologies: Doppler shift and FMCW (Frequency-Modulated Continuous-Wave)
  • Detection of objects other than a vehicle can be reduced
  • Built-in heater reduces snow on the sensor (automatically activates based on the outside air temperature)
  • Not affected by underground obstructions, this product is installed above ground
  • Reduced installation time as access road for vehicle is not closed, as no civil engineering works is required

In The Box:

  • Vehicle Presence Sensor
  • (4) Screws
  • Installation Manual

NOTE: Always install the sensor on the vertical pole that is mounted in or on the ground. Installing a sensor on a tilted pole will result in a detection of the ground by the ultrasonic sensor and correct operation is not ensured.

Tech Specs

  • Part Number: OVS-01CC
  • Detection Method: Microwave (Doppler shift and FMCW)
  • Frequency: 24GHz
  • Response Time: 300msec
  • Power Supply: 12-24VDC
  • Current Consumption:
    • Max 200mA (at 24VDC) with Heater ON
    • Max 80mA (at 24VDC) when Heater is OFF
  • Output 1: Relay output DC20V, 0.3A (NO/NC selectable)
  • Output 2: Relay output DC30V, 0.3A (NO/NC selectable)
  • Input: NO/NC input
  • Detection Range: 3 feet to 26 feet (1 to 8m) Programmable maximum range
  • Detectable Vehicle Speed: 1 mph-37 mph (2 to 60 km/h)
  • Parameters:
    • Sensitivity: Level 1 to 5 (inc. Human Cancel Adjust.)
    • Output 1: NO/NC
    • Output 2: NO/NC
    • Max. Range: 3/7/10/13/16/20/23/26 feet (1/2/3/4/5/6/7/8 m)
  • Indicator:
    • Normal Operation: Stand-by: Solid Green, Detection: Solid Red
    • Detection Area Check:
      • Non-detection: Blinking Green
      • Detected: Blinking Yellow
    • Calibration: In calibration: Fast blinking blue
    • Sensor Reset: Reset completed: Blinking yellow for 2 seconds
  • Human Cancellation: Available from Level 1 to 5
  • Operation Temperature: -22°F to 122°F (-30°C to 50°C)
  • Operation Humidity: 95% max. (non-condensing)
  • International Protection Code: IP65
  • Installed Condition: Indoor/Outdoor
  • Installation Height: Installation Height of 20 inches (500mm)
  • Horizontal Angle Adjustment: Horizontally: ±30 deg. (5 deg. steps)
  • Weight: 480g (Including accessories)
  • Credentials: FCC
