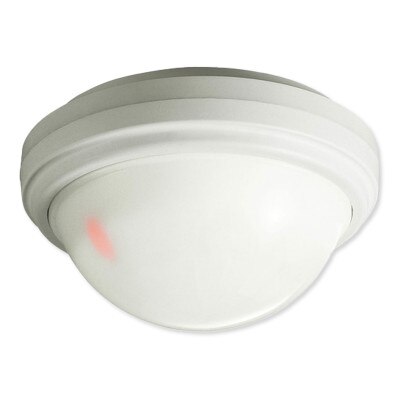

Optex 360-Degree Ceiling Mount PIR Detector with Zoom Function
Product Description
The SX-360Z Optex 360° Ceiling Mount PIR Detector with Zoom Function is a circular 360° motion detecting sensor capable of detecting and reporting movement within a 60ft diameter area in rooms with ceilings between 8 and 16ft high. It's unique rotating zoom function and triple-element detection pattern eliminate dead zones in any room it monitors. With its adjustable sensitivity, you can customize the detector's response to suit the specific requirements of your space to reduce the likelihood of false alarms. The PIR Detector's compact design, RFI and temperature protection, and universal application makes it suitable for virtually any residential or commercial building.
- Flexible Pattern Adjustment with Zoom Function (Patent Listed)

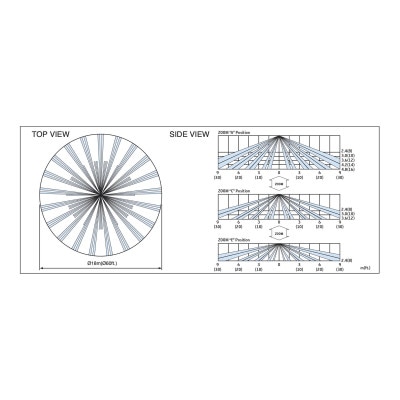

- Circular Detection Area with 276 Dense Zones
- Patented Multi-Focus Lens with Adjustable Sensitivity
- LED On/Off Switch to choose to show when the sensor is activated
- RFI Immunity 30V/m and temperature protection to avoid interference and false alarms
- Multilevel Pattern determines detected object height
- 5 Year Limited Warranty
- UL/ULC Listed
Why You Would Use This Product:
The Optex SX-360Z Ceiling Mount Detector is ideal for both residential and commercial applications thanks to its incredible motion detection coverage. This detector's ceiling-mount design makes the most of its 360-degree coverage across a wide area. The device's advanced infrared technology and multiple detection zones ensure precise detection and minimize false alarms.
In The Box:
- SX-360Z Ceiling Mount Detector
- Mounting Hardware
- User Manual
Notes:
- Avoid placing the detector in direct sunlight.
- Avoid placing the detector directly in the path of air conditioners or heating vents.
- Avoid placing the detector in a room where high condensation can easily occur.
- Limit the amount of easily movable items such as curtains within the detector's field of view.
- The sensor is only designed to detect an intrusion and signal an alarm or security control panel.
Tech Specs
- Part Number: SX-360Z
- UPC: 788924080635
- Detection Method: Passive Infrared
- Coverage: 60ft (18m) Diameter with 360 Degree Zoom
- Detection Zones: 276
- Sensitivity: 3°F (1.6 °C) at 2 ft./s (0.6 m/s)
- Detectable Speed: 1 to 6ft./sec (0.3 to 1.8m/sec)
- LED Indicator:
- LED blinks during warm-up period
- Triggered Alarm
- Warm Up Period: Approx 20 seconds
- Alarm Output: N.C. 28VDC 0.2A max
- Alarm Period: 2 ± 0.5secs intervals
- Pulse Count: 2 ± 0.5secs intervals: 1, 2, or 4
- Tamper Switch: N.C., Opens when cover is removed
- RF Interference: No Alarm 30 V/m
- Power Input: 6 to 18VDC
- Current Draw: 13mA (normal), 18mA (max)
- Operation Temperature: -4 to 122°F (-20 to 50°C)
- Environment Humidity: 95% max.
- Mounting: Ceiling Height: 8 to 16ft (2.4 to 5m)
- Dimensions: 5.04 inches (12.8 cm) Diameter x 2.67 inches (70cm) H
- Weight: 0.49 lbs (224 grams / 7.9oz)
- Warranty: 5-Year Limited
