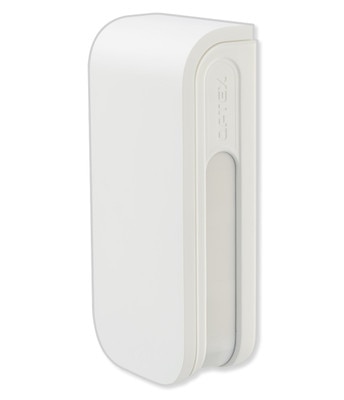

Optex BX Shield Outdoor Boundary Detector, Standard Model

$147.96 to $163.03
SKU: OPBXSx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Perfect for protecting windows and the immediate boundary areas of a property, the Optex BX Shield Outdoor Boundary Detector Standard Model has a versatile design that includes four PIRs (two on each side of the unit) that have a detection range of up to 80ft total (40ft per side). Each side's sensitivity can be adjusted independently for high-performing flexibility.

Featuring SMDA logic (Super Multidimensional Analysis), the BX Shield Detector improves immunity against changes in temperature or moving vegetation, which helps to distinguish between false alarms and real intrusions. The BXS also excels in environments where the temperature difference between the human body and the background is very small, due to its extreme high detection mode increasing the PIR sensitivity, preventing any missed alarms.

  • Four PIR technology, two on each side
  • Completely independent detection setting per side
  • Scope of detection area up to 40ft on each side, 80ft total (12m/24m)
  • SMDA Logic: Differentiates nuisance false alarms & genuine intrusions
  • Size analysis function ignores sources of false alarms
  • Extreme high detection mode
  • Tamper output activates when face cover/back box is removed
  • Versatile design with automatic walk test mode

In The Box:

  • Optex BX Shield Outdoor Boundary Detector
  • Accessories
  • Manual

Tech Specs

  • Part Number:
    • BXS-ST: Hardwired
    • BXS-R: Wireless
  • Detection Method: Passive Infrared
  • PIR Coverage: 24 m (80') ; 12 m (40') on each side, 4 zones ; 2 zones on each side, 180°narrow
  • PIR Distance Limit:
    • BXS-ST: List the possible range 2.5, 3.5, 6, 8.5, 12 m
    • BXS-R: 2.5 to 12 m (5 levels)
  • Detection Angle from Wall:
    • To Wall: 0° angled forward
    • Away Wall: 3° angled forward selectable
  • Detectable Speed: 0.3 to 2.0 m/s (1' to 6'7"/s)
  • Sensitivity:
    • Normal: 2.0°C (3.6°F) at 0.6 m/s
    • Extreme High: 1.0°C(1.8°F)at 0.6 m/s
    • Selectable for each side individually
  • Power Input:
    • BXS-ST: 9.5 to 18 VDC
    • BXS-R: Qty 2 of 3V DC Lithium or Alkaline batteries
  • Current Draw:
    • BXS-ST: 31 mA max. at 12 VDC
    • BXS-R: 15 µA stand-by 8 max. at 3 V DC except walk test
  • Alarm Period: 2.0 ±1 sec.
  • Warm-Up Period: 60 sec. or less (LED blinks)
  • Alarm (Right and Left) output:
    • BXS-ST: 28 VDC 0.1 A max. [Individual;Right or General], [N.O. or N.C.] are selectable
    • BXS-R: Solid-state switch, 10 V DC 0.01 A max. [Individual;Right or General], [N.O. or N.C.] are selectable
  • Trouble Output:
    • BXS-ST: Not Available
    • BXS-R: Solid-state switch, 10 V DC 0.01 A max.[N.O. or N.C.] is selectable
  • Tamper Output:
    • BXS-ST: N.C. 28 VDC 0.1 A max. Open when either the face cover, main or base unit is removed
    • BXS-R: Tamper output is shared with trouble output.
  • LED indicator (DIP switch ON or Walk test): Red LED; 1. Warm-Up, 2. Alarm
  • Operation Temperature:
    • BXS-ST: -22°F to +140°F (-30 °C to +60 °C)
    • BXS-R: -22°F to +140°F (-30 °C to +60 °C), except batteries
  • Environment Humidity: 95% max.
  • International Protection: IP 55
  • Mounting: Wall, Pole (Outdoor, Indoor)
  • Mounting Height: 0.8 to 1.2 m (2'7" to 4')
  • Weight:
    • BXS-ST: 430 g (15.2 oz.)
    • BXS-R: 550 g (19.4 oz.)
  • Accessories:
    • BXS-ST: Screw (4 x 20 mm) x 2
    • BXS-R: Connector for POWER and ALARM (R), Connector for ALARM (L), Connector for TROUBLE, Velcro tape, Mounting screw (4 x 20 mm) x 2
