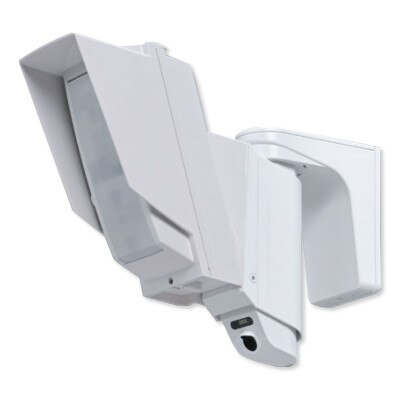

Optex InSight HX-80N Visual Verification Camera and PIR Detector

$374.01
SKU: OPINSHX80N

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Optex InSight HX-80N Visual Verification Camera and PIR Detector offers a secondary visual verification solution combining outdoor PIR detection with a security camera. Alerts are only triggered when both the camera and PIR detector's fields of view have been crossed by a subject. The PIR detector is dual shielded from environmental factors like direct sunlight, strong wind, or heavy rain/snow and features small animal tolerance technology to reduce nuisance alerts or false alarms. The InSight also simplifies the installation process by matching the camera and sensor field of views, while providing wide and narrow detection range options. The InSight Visual Verification Camera and PIR Detector is ONVIF compliant and can directly connect to the OPTEX Visual Verification Bridge, as well as any DVR, NVR or VMS.

  • Ideal for high-end applications with severe environmental changes or heavy traffic

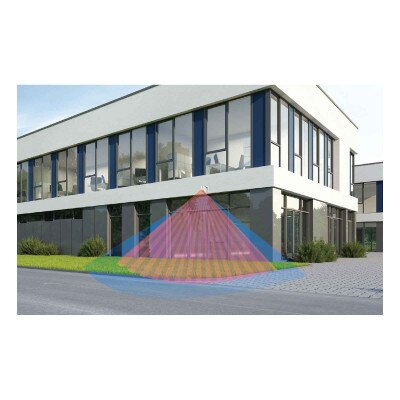

  • 80-foot coverage with 20 detection zones
  • Dual detection zones reduces the likelihood of false alarms caused by ignoring small objects entering the monitored area
  • Receive notifications only when a subject enters both camera and sensor fields of view at the same time

Why You Would Use This Product:

The Optex Visual Verification Camera and PIR Detector is designed for home or business owners who desire an extra level of security and no false alarms. This Optex device gives you peace of mind and doesn't waste your time with false alarms from noticing movement from small wildlife or swaying branches. When you do receive an alert, you'll know it is worth your time investigating. If you also have the Optex Visual Verification Bridge, sold separately, and are serviced by a 3rd party security service, they can verify alerts from the Camera, saving you further time and ensuring you are notified only when necessary.

Optex Vision App

The Optex Visual Verification Camera and PIR Detector is compatible with the Optex Vision App, which allows users to to see real time feeds from their connected security cameras, receive notifications from triggered cameras or sensors, and review recorded footage saved on compatible DVR or NVR devices. Users may also utilize the app to adjust device settings and configurations.

In The Box:

  • Camera and PIR Detector
  • Mounting Plate
  • 2 x Mounting Screws
  • Torx Wrench
  • Waterproof cap for LAN Connector

Tech Specs

  • Part Number: INS-HX-80N
  • UPC: 788924504278
  • Detection Method: Passive infrared
  • PIR Coverage: 80 x 6'7" feet (24 x 2 m) narrow / 20 zones
  • PIR Distance Limit:
    • 22 feet, 33 feet, 43 feet, 60 feet (6.5 m, 10.0 m, 13.0 m, 18.0 m)
    • Default setting: 43 feet (13 m)
  • Detectable Speed: 1 foot/second to 5 feet/second (0.3 m/s to 1.5 m/s)
  • Sensitivity: 3.6° F (2.0° C) at 0.6 m/s
  • Power Input:
    • PoE (IEEE 802.3af compliant)
    • Mini-jack 12 V DC; 420 mA max
    • Terminal 9.5 to 18 V DC; 35mA max at 12 v DC
  • Alarm Period: 2.0 ±1 second
  • Warm-Up Period: Approx. 60 seconds (LED blinks)
  • Alarm Output: N.C./N.O. switchable, 28 V DC; 0.1 A max
  • Tamper Output: N.C. 28 V DC; 0.1 A max. Open when the cover is opened.
  • LED Indicators:
    • Warm-up
    • Alarm
    • Viewing Angle: 114 H° 61 V°
  • Minimum Illumination:
    • With Color: 0.02 lux
    • Colorless with IR: 0 lux
  • IR Illumination: Visible up to 39ft (12m)
  • Night Vision: Day and Night Automatic / Manual Switching
  • Image Compression: H.264, H.265, MJPEG
  • Resolution and Frame Rate: 1080@30fps, D1 (704 x 480 or 704 x 576)
  • Network Protocol: IPv4; TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, SNMPv1/v2/v3 (MIB-2), ONVIF
  • Security: HTTPS (SSL), IP Filtering, 802.1x, Digest authentication (ID/PW)
  • RF Interference: No alarm 10 V/m
  • Operating Temperature: -22 to 122° F (-30 to 50° C)
  • Operating Humidity: 95 percent max.
  • Weatherproof Rating: IP55
  • Mounting: Wall (Outdoor, Indoor)/ Gang box
  • Mounting Height: 8'2" to 9'10" (2.5 to 3.0 m)
  • Bracket Adjust Angle: Vertical: ±20° ; Horizontal: ±95°
  • Weight: 2.64 lbs (1.2kg)
  • Warranty: 2 Year
