Optex Universal Wireless Gate & Patio Dual PIR Detector

$79.17
SKU: OPFTNRPT

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

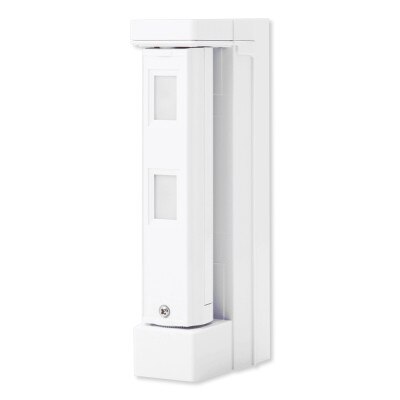

The Optex Universal Wireless-Ready Gate & Patio Dual PIR Detector is an advanced motion sensor capable of monitoring movement with an adjustable 16.5' x 3'3" or 6.7" x 1'1.5" field of coverage. This detector utilizes dual PIR technology for verification and intelligent size judging to only report movement of subjects large enough to enter the sensor's dual PIR zones simultaneously, such as people, large animals, etc. This prevents unnecessary false alarms triggered by weather conditions and small animals. With its built-in bracket that enables 190° rotation, the FTN-R-PT is ideal for residential and small business applications.

  • Dual Motion Detection Zones: QXI sensors emit two PIRs zones to track movement. When a subject enters both zones at the same time, the sensor notifies you.
  • Reduce/Eliminate False Alarms: Dual motion detection zones reduces the likelihood of false alarms caused by other motion sensors noticing small objects entering the monitored area

In The Box:

  • Dual PIR Detector
  • Mounting Base
  • 3 x 20mm screws
  • Connector for Power and Alarm
  • Connector Cable for Trouble Output

Tech Specs

  • Part Number: FTN-R-PT
  • UPC: 788924500515
  • Detection Method: Dual Passive Infrared

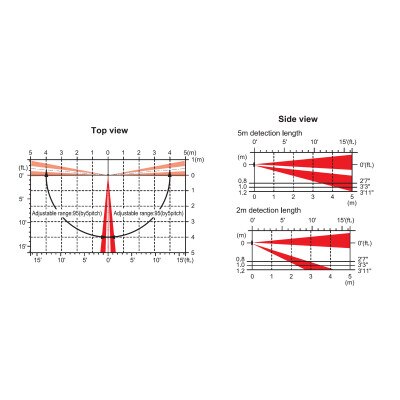

  • PIR Coverage: 16'5 x 3'3 feet (5x1 meters) or 6'7 x 1.15" feet, 16'5" (2x0.35 m)
  • Detectable Speed: 1' to 4'11"/s (0.3 to 1.5 m/s)
  • Sensitivity: 3.6°F at 2 feet/s (2.0°C at 0.6 m/s)
  • Operation Voltage: 2.5-10 VDC
  • Power Input: 3-9VDC CR123A Lithium or Alkaline Battery
  • Current Draw: 9µa Standby / 3mA max. at 3 VDC
  • Alarm Period: 2.0 ±1.0 seconds
  • Warm-Up Period: approx. 120 seconds (LED blinks)
  • Alarm Output: N.C./N.O. selectable-solid state switch 10 VDC 0.01 A (max.)
  • Trouble Output: N.C./N.O. selectable-solid state switch 10 VDC 0.01 A (max.)
  • LED Indicator:
    • Enable: During Dip Switch 1 (Walk Test Mode) Or Dip Switch 4 (LED) On
    • Disable: During Normal Operation
    • Light/Blink: Warm-up, Alarm
  • Operation Temperature: –4 to 140°F (-20 to 60°C)
  • Environment Humidity: 95 percent max.
  • Weatherproof: IP55
  • Mounting: Wall (Outdoor, Indoor)
  • Mounting Height: 2'7" to 3'11" (0.8 to 1.2 m)
  • Weight: 6.4 ounces (180 g) without wireless transmitter and battery

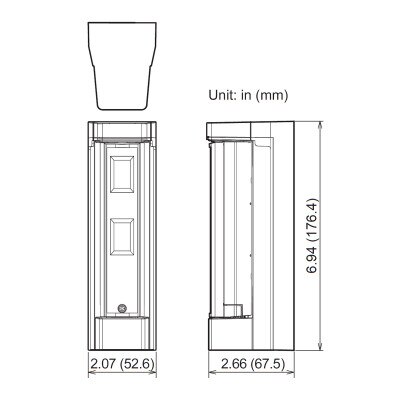

  • Dimensions: 2.07 x 6.94 x 2.66 inches (52.6 x 176.4 x 67.5 mm)
  • Accessories: Connector for Power Input and Alarm Output, Connector for Trouble Output, 2x 3x20mm screws
  • Approvals: FCC, IC
