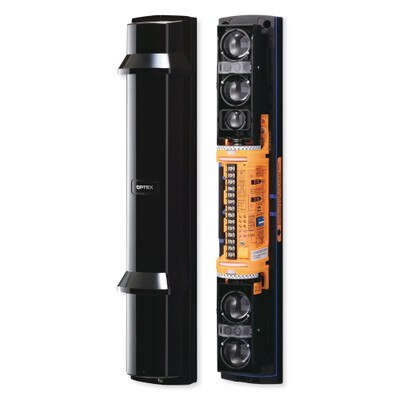

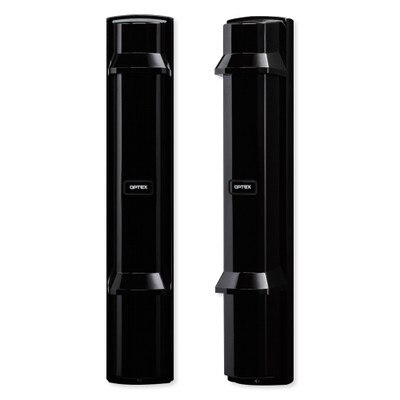

Optex Quad Beam Photoelectric Detector

$393.19 to $454.84
SKU: OPSLx50QN

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Optex Quad Beam Photoelectric Detector, 350'/650' offers features to protect against false and missed alarms caused by mis-alignment and environmental issues. This photoelectric detector is ideal for mid level security perimeter applications and offers models that accommodate a 350 feet or 650 feet detection range. It features Quad beams to dramatically cut down on false alarms caused by birds and falling leaves. It also has a sniper viewfinder and alignment dial, which provides a high level of visibility for optical alignment work. And at long ranges, a perfect installation and stable performance can be achieved in minimal time. Also featured is the BAU-4 beam alignment unit to automatically and accurately adjust the optical access. This allows peak performance and gives one technician the ability to align a long-range detector without additional help.

Features:

  • Provides long-range outdoor detection (350ft. and 650ft. models)
  • IP65 rated
  • Alignment dial
  • Sniper viewfinder with x2 magnification
  • Vivid interior color
  • Quad beam detection pattern

In The Box:

  • Quad Beam Photoelectric Detector
  • Accessories
  • Manual

Tech Specs

  • Part Number:
    • SL-350QN (350 feet range)
    • SL-650QN (650 feet range)
  • Technology: Active Infrared
  • Wiring: Wired
  • Power Input: 10.5 – 30 VDC
  • Output:
    • Alarm Output: Form C relay: 30 VDC, 0.2 A
    • Alarm Period: 2sec (±1) (Nominal)
    • Tamper Output: N.C. (contact output) : 30VDC, 0.1A Opens when cover removed
  • Current Draw:
    • 39 mA (Transmitter: 9 mA Receiver: 30 mA)
    • 40mA (Transmitter: 10 mA Receiver: 30 mA)
  • Alignment Angle: ±90° Horizontal, ±10° Vertical
  • Water Protection: IP65
  • Operation Temperature: -13°F – +140°F (-25°C – +60°C)
  • Environment Humidity: 95% max.
  • Dimension: 17.6 x 3.1 x 3.8 inches (448 x 79 x 96 mm)
  • Application Environment: Indoor or Outdoor
  • Weight: 2400g (84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
