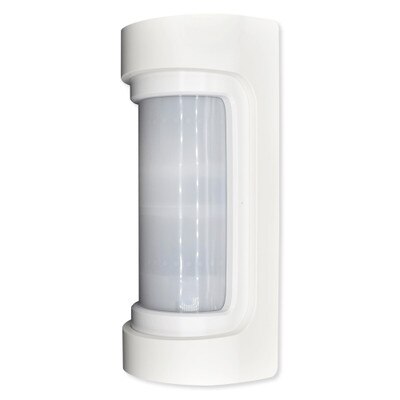

Optex VX Shield 90-Degree Wide Angle Outdoor Detector, Dual Tech

$190.43 to $237.01
SKU: OPVXSxDAM

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

With a customizable design and high accuracy against false alarms, the Optex VX Shield Series 90° Wide Angle Outdoor Detector with Dual Tech is ideal for all residential and small commercial properties. It provides 40ft by 90° detection coverage and is equipped with digitally-enhanced signal recognition logic as well as super multidimensional analysis (SMDA). Analyzing detection patterns and environmental information, SMDA improves immunity against temperature changes or moving trees and vegetation, reducing the risk of false alarms.

Installation of the VX Shield series is easy due to the inclusion of a rotation lock to simplify opening and closing of the detector's cover. With the sensor adjustment components colored in blue, this makes it obvious which parts are used to manipulate the sensor detection area. A spirit level has been incorporated as well, along with an automatic walk test mode which starts automatically when the cover is closed.

  • Intelligent 40ft wired PIR with animal tolerance
  • Dual Tech: Passive Infrared and Microwave
  • Active infrared anti-masking
  • Easy set up with rotation lock for easy opening/closing of the cover
  • Sensor adjustment components are colored blue for easier identification of parts that manipulate sensor detection area
  • Spirit level
  • SMDA Logic: Differentiates nuisance false alarms & genuine intrusions
  • Automatic walk test mode starts upon closing the cover
  • Tamper output activates when face cover/back box is removed

In The Box:

  • Optex VX Shield 90° Wide Angle Outdoor Detector With Dual Tech
  • Accessories
  • Manual

Tech Specs

  • Part Number:
    • VXS-DAM: Hardwired
    • VXS-RDAM: Wireless
  • Detection Method: Passive Infrared & Microwave
  • PIR Coverage: 12 m (40 ft) 90° wide / 16 zones
  • PIR Distance Limit: 2.5 to 12 m (5 levels)
  • Detectable Speed: 0.3 to 2.0 m / s (1' to 6'7" / s)
  • Sensitivity: 2.0 °C ( 3.6 °F) at 0.6 m / s
  • Power Input:
    • VXS-DAM: 9.5 to 18 V DC
    • VXS-RDAM: 3 to 9 V DC Lithium or Alkaline Battery
  • Current Draw:
    • VXS-DAM: 35 mA max. at 12 V DC
    • VXS-RDAM: 18 µ A standby / 8 mA max. at 3 V DC
  • Alarm Period: 2.0 ± 0.1 sec.
  • Warm-Up Period: 60 sec. or less (LED blinks)
  • Alarm Output:
    • VXS-DAM: N.C. / N.O. Selectable 28 V DC 0.1 A max.
    • VXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Trouble Output:
    • VXS-DAM: N.C. 28 V DC 0.1 A max.
    • VXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • Tamper Output:
    • VXS-DAM: N.C. 28VDC 0.1 mA max. open when cover unit, main unit or mounting plate is removed
    • VXS-RDAM: N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A max.
  • LED Indicator: Red LED
    • 1. Warm-up
    • 2. Alarm
    • 3. Masking detection
  • LED Indicator: Yellow LED
    • 1. Warm-up
    • 2. MW Detection DIP switch ON or Walk test
  • Operation Temperature: -4°F to +113°F (-20°C to +45°C)
  • Environment Humidity: 95% max.
  • International Protection: IP 55
  • Mounting Height/Weight: 0.8 to 1.2 m (2'7" to 4')
  • Weight:
    • VXS-DAM: 450 g (15.9 oz.)
    • VXS-RDAM: 550 g (19.4 oz.)
  • Accessories:
    • VXS-DAM: Screw (4 x 20 mm) x 2, Masking seal x 3
    • VXS-RDAM: Connector for POWER and ALARM,Connector for TROUBLE, Velcro tape, Screw (4 x 20 mm) x 2, Masking seal x 3
