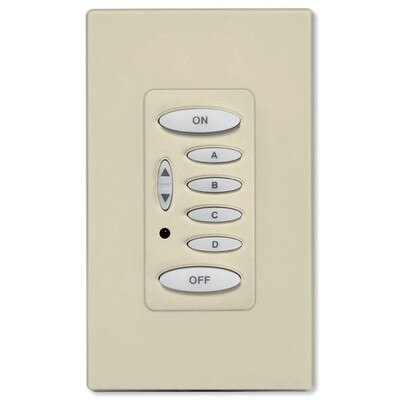

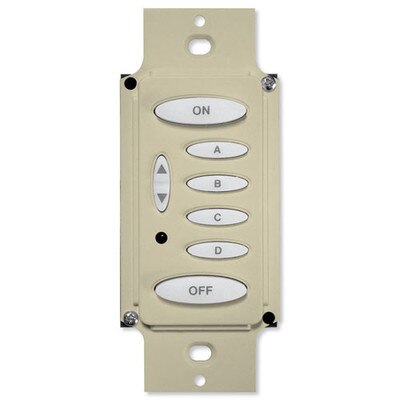

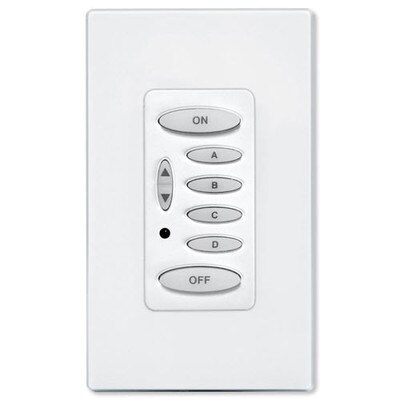

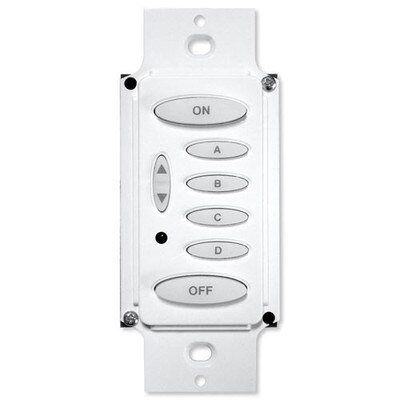

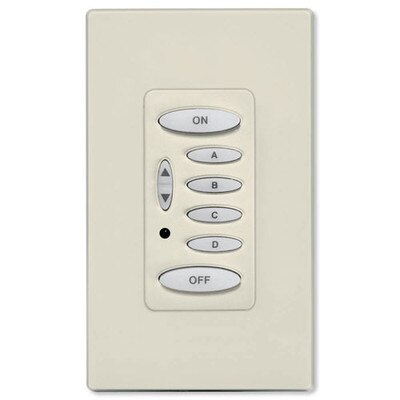

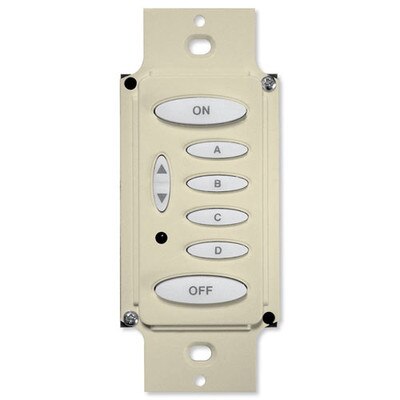

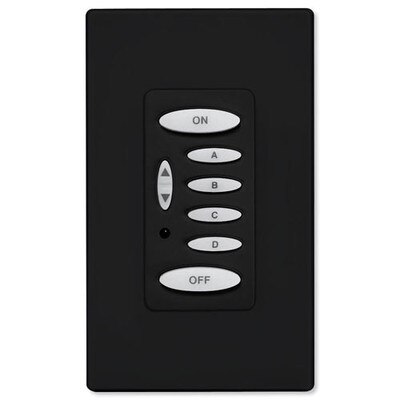

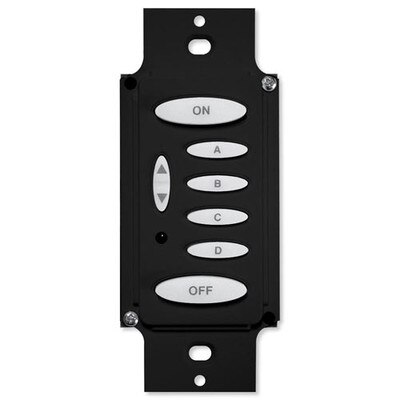

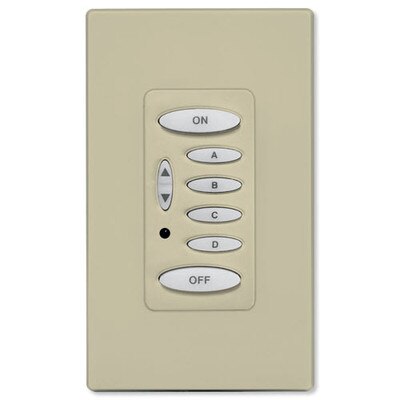

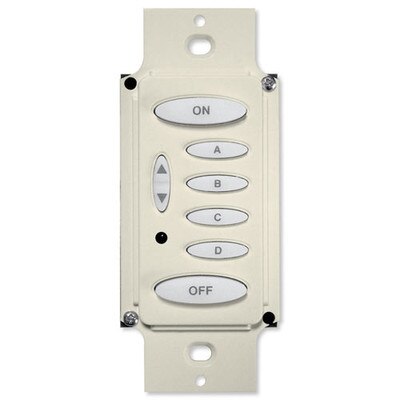

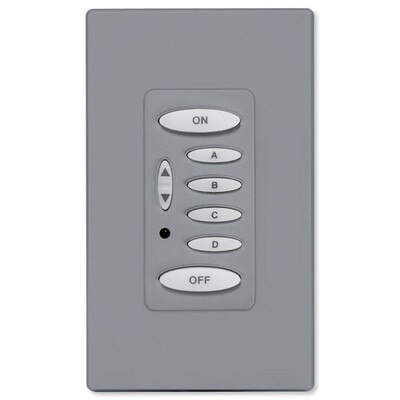

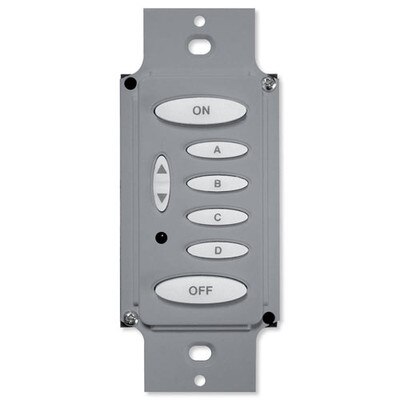

PCS PulseWorx UPB Wall Controller, Load Relay, 8A, 6 Button


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The PCS PulseWorx UPB Keypad with Load Relay combines the capabilities of a PCS UPB Keypad Controller with a single On/Off Load Relay rated up to 8A. The relay can control fluorescent lights or a motor load with On or Off commands.

The UPB Keypad can store up to 16 commands or scenes and control six different devices. Program different commands when a button is tapped, double-tapped, held or released to trigger specific lights or devices, a single room, or your whole house. Lights will dim or brighten at a rate from 0.8 seconds to 1 hour. The switch is pre-programmed to control 6 preset automation scenes right out of the box. The ON/OFF buttons are also preset to control their own lighting load out of the box.

The KPLR is available in seven different colors: white, almond, light almond, ivory, brown, gray, and black to match practically any décor.


  • Controls other UPB keypad controllers, outlets, dimmers or wall switches
  • Controls single lights, trigger scenes, and send messages to a central UPB controller
  • Simple ON/OFF relay function of its own load (up to 8A rating)
  • Choose from 16 function modes for each button to provide direct load control, other single devices or scenes
  • Adjustable backlit buttons to help locate in the dark
  • Pre-programmed with upto 6 preset scenes
  • Fits in a single gang location

Tech Specs

  • Part Number:
    • KPLR-6-A: Almond
    • KPLR-6-B: Black
    • KPLR-6-BR: Brown
    • KPLR-6-G: Gray
    • KPLR-6-I: Ivory
    • KPLR-6-LA: Light Almond
    • KPLR-6-W: White
  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 6 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge 105 C insulation, Black – Hot/Line. White – Neutral. Red – Load
  • Relay Max. Load: 8.0A
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40 to 104° F
  • Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: Yes
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Press and Hold ON/OFF Button for 3 Seconds- All LEDs will Flash
  • Button Type: 4 mechanical latching contact type buttons, 2 Momentary contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.1(H) x 1.7(W) x 1.8(D) inches
  • Weight: 5.6 ounces
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
