PCS PulseWorx UPB Wall Switch-Relay/Dimmer
Product Description
The WS1C was designed to control 0-10V dimmable LED fixtures. It has a 15A rating relay built in, utilizing power relay control (PRC) technology, relay contacts send out signal to 0-10V LED driver to control lighting loads.
With most lighting transitioning to LED both in new installations and retrofit, installers need a method to change the illumination level of LED fixtures that is easy to install, works well, dims and brightens smoothly, and doesn’t suffer from strobing at low illumination levels.
When LED fixtures are installed in office or residential locations it is best to provide a way to change their illumination level for different usages of the space especially since LED lighting can be perceived as much brighter than the lighting it replaces. Common LED drivers have a 0-10V control signal as an input to the LED fixture to set its illumination level, where the voltage level is proportional to the illumination level.
Connected to the fixture power is a small low-cost receiving module, RM-0-10V that monitors the power line for these messages and translates them into the 0-10V input of the fixture. The receiving module is very resilient in detecting these power line markers as it uses a patented method of evaluating the power line. Even in situations where the power line noise is present, it will not miss the start and stop marks nor will it interpret missing power line cycles caused by external factors that fall outside the marks it is looking for.
Available in seven colors: white, light almond, almond, ivory, brown, gray, and black to match practically any décor.
In The Box:
- Relay Dimmer
NOTE: Requires the RM-0-10V to operate LED fixtures. Requires UPstart configuration in order to include into UPB networks.
Tech Specs
- Part Number:

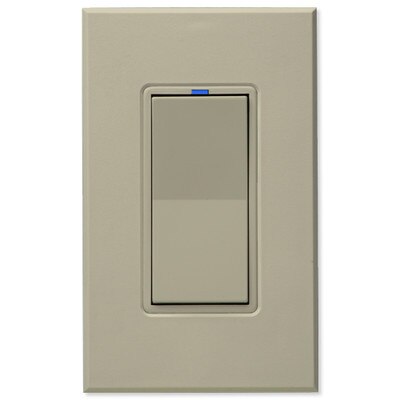

- Almond: WS1C-A

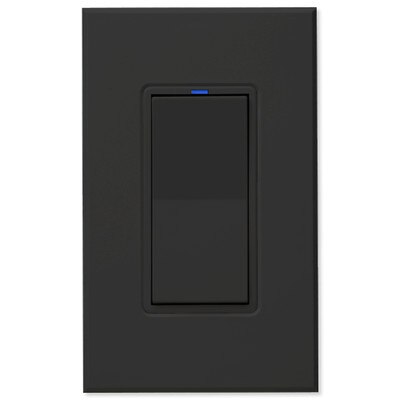

- Black: WS1C-B

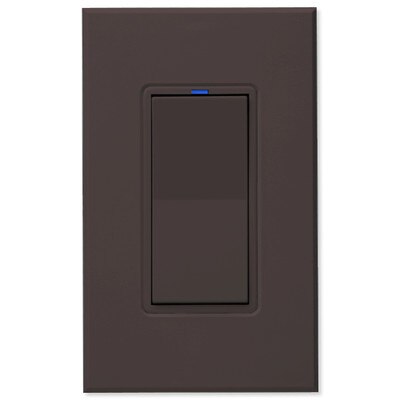

- Brown: WS1C-BR

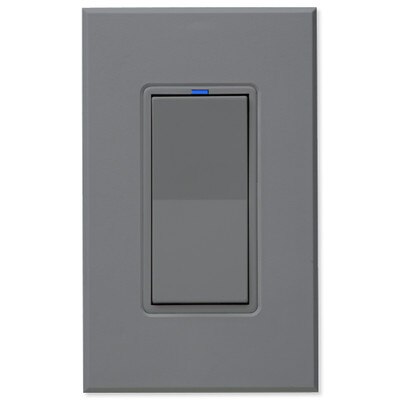

- Gray: WS1C-G
- Ivory: WS1C-I

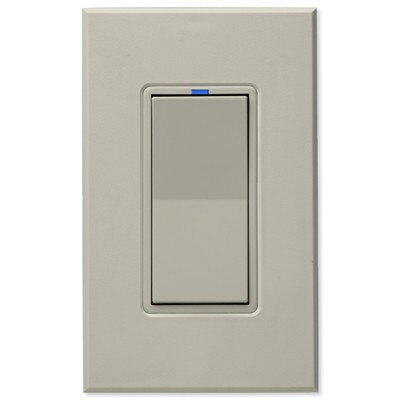

- Light Almond: WS1C-LA

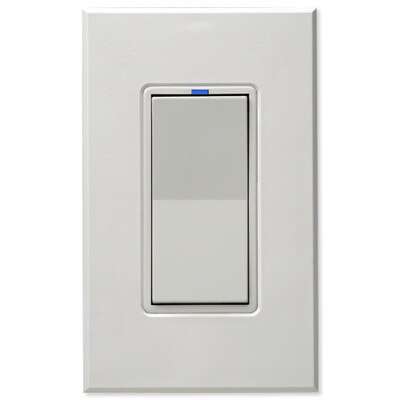

- White: WS1C-W
Electrical
- Power Requirements: Primary: 120 Volts AC, 50/60Hz
- Neutral Wire: Required
- Load Type: 0-10V LED driver
- Transmission Channels: 2 Links/Scenes
- Connections/Power Wire: 16 AWG gauge, 105 C insulation; Black – Hot/Line (14 AWG for 20A); White – Neutral; Red – Load (14 AWG for 20A); Yellow – traveller
- Standby Power Consumption:< 0.8 Watts
- Environmental Conditions: Indoor Use Only
- Operating Temperature: -40° to 140° F (-40° to 60° C)
- Operating Humidity: 10 to 90 percent RH (non-condensing)
- Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010
Operation
- Status LED Modes: All programmable with UPStart Blue, Red, Magenta or Off
- During Power Outage: Retains all settings in Non-volatile EERPOM
- Setup Mode: Tap Top or Bottom Rocker 5 Times – LED will Blink
Mechanical
- Button Type: 2 Momentary contact type buttons
- Wire Nuts: 4 included
- Mounting: Single Gang or multiple-ganged junction box
- Dimensions: 4.25(H) x 1.7(W) x 1.37(D) inches
- Weight: 5 ounces
- Warranty: 5 years
