SCP SMB Shelf Mounting Bracket

$14.99
SKU: SCHCCSMB

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

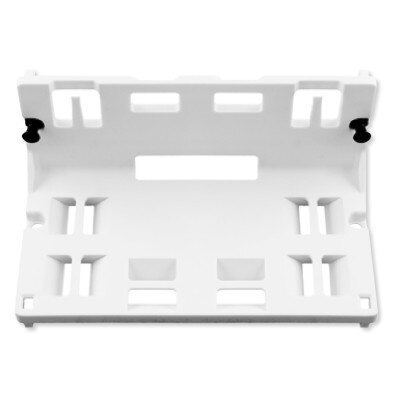

SCP's Shelf Mounting Bracket increases the functionality of HCC Series plastic or metal distribution enclosures. HCC-SMB is used to support large bulky components up to 6 lbs. The HCC-SMB shelf features universal mounting tabs and push pins to fit all brands. HCC-SMB allows the ability to manage interior capacity by positioning heavy or bulky components to strategic locations within enclosure to gain optimum path for termination of cables and electric power cords.

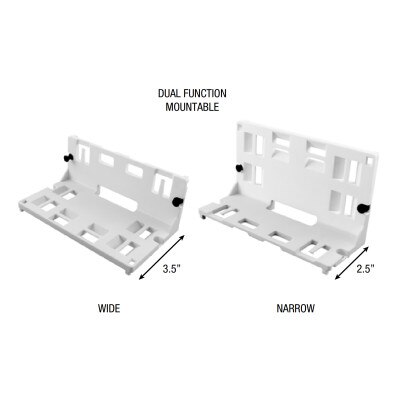

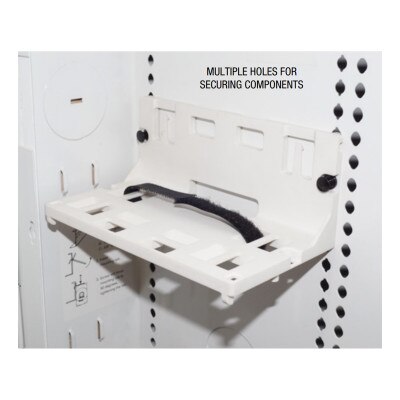

HCC-SMB shelf mounting bracket features a dual mounting shelf surface. Choose a larger surface for bulky wifi gateways or a smaller surface for modems, hubs, or streaming devices by simply placing push pins in desired holes for best functionality. Multiple slotted design allows for easy attachment to brackets using zip tie or velcro.

  • Lightweight and durable
  • Supports up to 6 lbs
  • Shelf can serve as divider between service providers
  • Universal design fits other brands
  • Fits standard holes for easy installation
  • Includes push pins
  • Multiple slots for securing item to bracket
  • Rohs compliant
  • UL 1863 compliant

In The Box:

  • SMB Shelf Mounting Bracket
  • Manual

Tech Specs

  • Part Number: HCC-SMB
  • UPC: 817777019032
  • Color: White
  • Dimensions:
    • Wide Surface: 6.40(W) x 3.5(D) inches (163 x 89mm)
    • Narrow Surface: 6.40(W) x 2.5(D) inches (163 x 51mm)
  • Certifications: Rohs, UL 1863 compliant
