SCP Low Voltage Media Enclosure Kit
Product Description
HCC-Series Low Voltage Enclosure kits with Vented Hinged Radius Cover allows you to maximize interior space to 5.25" Deep. Award winning design appeals to builders wanting an aesthetically pleasing appearance for Smart home Technology. Our Concealed Venting Design allows for elegant appearance while maximizing Air flow circulation with the largest footprint in the industry. Sturdy ABS plastic makes the HCC Series extremely Durable. Easy to install & Paintable. Standardized mounting pattern allows universal fitment of all brands of accessories.
- Elegant design appeals to new home buyers
- 5.25 Inch deep interior
- Cox communications approved
- WiFi transparent
- Fits between 16" o/c stud
- Concealed air flow vents for better appearance
- UL compliant
- Optional key lock, optional shelf
- Includes 2 x electrical knockouts for single gang boxes
In The Box:
- Media Enclosure Kit
- Manual
Tech Specs
- Part Number:
- HCC-18-KIT-ECPL: 18-inch
- HCC-28-KIT-ECPL: 28-inch
- UPC:
- HCC-18-KIT-ECPL (18-inch): 817777015935
- HCC-28-KIT-ECPL (28-inch): 817777015973

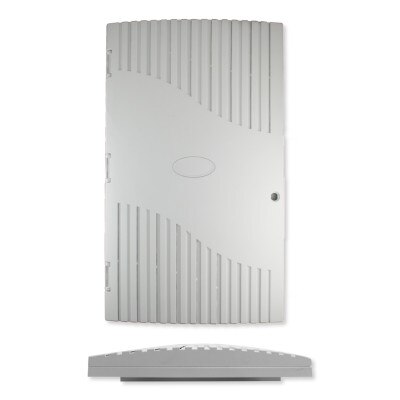

- Item: Plastic Enclosure with Vented Hinged Cover
- Color: White
- Dimensions:

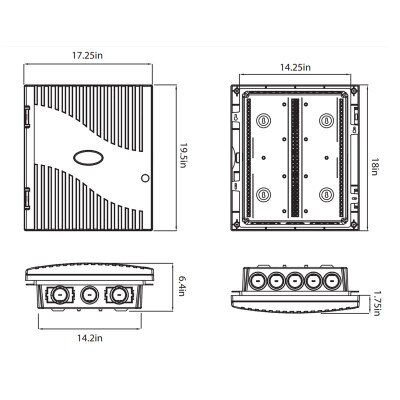

- 18-inch:
- Inside: 18(H) x 14.25(W) x 5.25(D)
- Overall Cover Outside: 19.50(H) x 17.25(W) x 1.75(D)

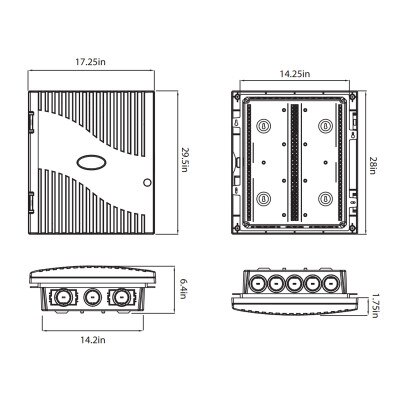

- 28-inch:
- Inside: 28(H) x 14.25(W) x 5.25(D)
- Overall Cover Outside: 29.50(H) x 17.25(W) x 1.75(D)
- Standards and Certifications: Cox communications approved; UL compliant
