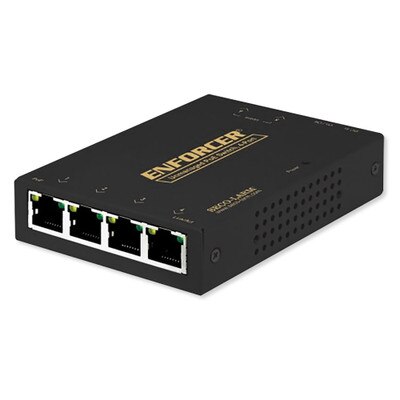

Seco-Larm 4-Port Enforcer Unmanaged PoE Switch
Product Description
The Seco-Larm Enforcer Unmanaged PoE Switch (4 Port, 1.2Gbps) provides Ethernet connections and power to up to four PoE devices, such as IP cameras, IP access, VOIP, IP speakers/intercoms, and other PoE devices. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD CCTV.
- Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, VOIP, IP speakers/intercoms, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- 2 uplink ports and 4 downlink ports
- Easy plug-and-play installation
- Supports 10,100BaseT
- IEEE 802.3x Flow control
In The Box:
- Unmanaged PoE Switch, 4 Port, 1.2Gbps
- Manual
Tech Specs
- Part Number: NS-104UT-MAQ
- Operating Voltage: 48~57 VDC
- Number of Downlink Ports: 4
- Number of Downlink Ports: 2
- Power Consumption:<5W
- Ethernet Speed: 10/100Mbps (uplink, 100Mbps)
- Ethernet Standard:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3at
- Transmission Distance: 328ft (100m)
- PoE Capacity: 55W
- Switch Capacity: 1.2Gbps
- Transfer Rate:
- 10Mbps: 14,880pps
- 100Mbps: 148,800pps
- 1000Mbps: N/A
- MAC Address Table: 1K
- LED Indicators: Connection/transmission and PoE for each port, power
- Dimensions: 4 x 7/8 x 2-15/16 inches (102 x 22 x 75 mm)
- Credentials: FCC, RoHS, CE
- Warranty: 1 Year
