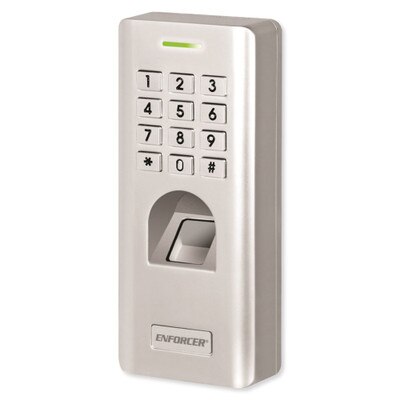

Seco-Larm Enforcer Fingerprint Reader and Keypad
Product Description
Access control interface for 3rd-party electric lock, exit button, alarm, etc. The fingerprint reader/keypad is controlled by either a fingerprint or a user code.
- 500DPI Optical fingerprint reader
- Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 PIN users)
- User code length 4~6 digits
- Fingerprint identification time – ≤1 second
- Fingerprint false acceptance rate – ≤0.01%
- Fingerprint false rejection rate – ≤0.1%
- 12VDC Operation
- Form C relay output – 2A@12VDC
- Tamper alarm output – 2.5A@12VDC
- Adjustable relay output time – 100ms~99s, or toggle
- Weatherproof – IP66
- Illuminated fingerprint reader window
- Wiegand output
- 2-Door interlock
Fingerprints:
There are three types of fingerprint entries:
- Master fingerprints – Up to 2 fingerprints can be assigned as master fingerprints. Master fingerprints are used for adding/deleting user fingerprints.
- Super fingerprints – Up to 2 fingerprints can be assigned as super user fingerprints. Super user fingerprints can be assigned to toggle between allowing and disallowing user access.
- User fingerprints – Up to 998 fingerprints can be assigned as user fingerprints. User fingerprints are used to activate the relay.
User Codes:
User codes may be 4-6 digits in length. Up to 3,000 user codes can be assigned. User codes are used to activate the relay.
In The Box:
- Fingerprint Reader & Keypad
- (2) Mounting Screws
- Security Wrench
- (2) Mounting Screw Anchors
- Diode
- User Manual
Tech Specs
- Part Number: SK-2612-SFSQ
- Operating Voltage: 12VDC
- Current Draw:
- Standby: 45mA@12VDC
- Active: 200mA@12VDC (max.)
- Outputs:
- Form C: 2A@12VDC
- Tamper Alarm: 2.5A@12VDC
- Wiegand: 26-44 bit
- Egress Input: N.O. Ground
- Door Sensor Input: N.C. Ground
- Enclosure Material: Zinc alloy
- Operating Temperature: -22°-140° F (-30°-60° C)
- Operating Humidity: 20-90%
- Dimensions: 2-1/4" x 5-3/8" x 1" (58 x 137 x 26 mm)
- Credentials: FCC
- Warranty: 1 Year
