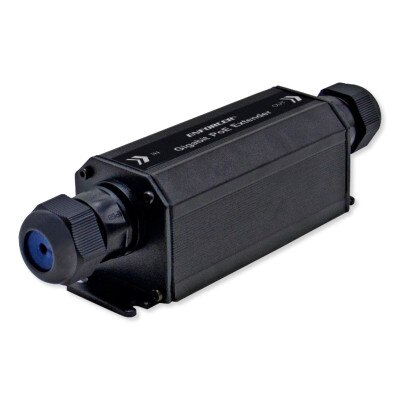

Seco-Larm Enforcer Gigabit PoE Extender, 1-Input to 1-Output
Product Description
The Seco-Larm Enforcer Gigabit PoE Extender, 1-Input to 1-Output, connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or Cat6 cable to extend data and power by an additional 328ft (100m) and for a total range of up to 984ft (300m) with two extenders.
- Extends the range of PoE Ethernet devices over Cat5e or higher cables an additional 328ft (100m)
- Connects 10,100,1000BaseT PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
- Supports up to gigabit transmission rates
- Passive operation – no external power required
- Easy plug-and-play installation
- Weatherproof (IP66)
- Compliant with IEEE802.3af, IEEE802.3at
- Automatically detects PoE equipment and protects from damage due to faulty installation
In The Box:
- PoE Extender
- End Caps
- Manual
Tech Specs
- Part Number: NR-P101E-TQ
- UPC: 676544020820
- Connections PoE In: 1x Weatherproof RJ-45
- Connections PoE Out: 1x Weatherproof RJ-45
- PoE Power Input: Up to 30W
- PoE Power Output: Up to 25W
- Transmission Range 1 Extender: 656ft (200m)
- Transmission Range 2 Extenders: 984ft (300m)
- Data Link: Both pin 1/2, 3/6 and 4/5, 7/8
- Power Link: Pin 1/2(+), 3/6(–) up to 25W
- Network Cables: Weatherproof Cat-5e or higher
- Ethernet Speed: 10/100/1000 Mbps half/full duplex
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- IP Rating: IP66 (with weatherproof UTP cable)
- Operating Humidity: 90% (maximum, non-condensing)
- Operating Temperature: -13 to 101°F (-25 to 55°C)
- Dimensions: 7-1/4 x 1-3/4 x 1-3/4 inches (185 x 45 x 45 mm) (Includes end caps)
