  • Seco-Larm Enforcer Gigabit PoE Extender, 1-Input to 4-Outputs

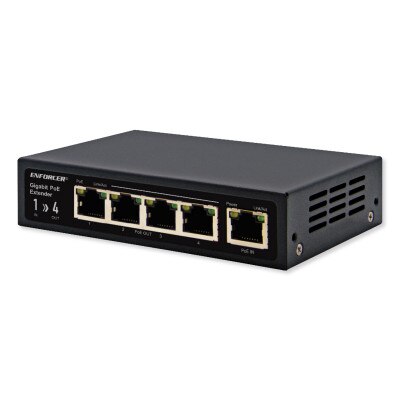

Seco-Larm Enforcer Gigabit PoE Extender, 1-Input to 4-Outputs


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The Seco-Larm Enforcer Gigabit PoE Extender, 1-Input to 4-Outputs, connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices (up to 4) using a single Cat5e or Cat6 cable to extend data and power by an additional 328ft (100m) and for a total range of up to 984ft (300m) with two extenders.

  • Extends the range of PoE Ethernet devices over Cat5e or higher cables an additional 328ft (100m)
  • Connects 10,100,1000BaseT PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
  • Supports up to gigabit transmission rates
  • Passive operation – no external power required
  • Easy plug-and-play installation
  • Compliant with IEEE802.3af, IEEE802.3at
  • Automatically detects PoE equipment and protects from damage due to faulty installation
  • 4 Output ports for up to 4 PoE devices
  • Also compliant with IEEE802.3bt 4 pairs

In The Box:

  • PoE Extender
  • 2 x Wall Mount Brackets
  • 2 x Wall Mounting Screws
  • 2 x Plastic Wall Anchors
  • 4 x Extender Bracket Mounting Screws
  • Manual

Tech Specs

  • Part Number: NR-P401E-TQ
  • UPC: 676544020837
  • Connections PoE In: 1x Shielded RJ-45
  • Connections PoE Out: 4x Shielded RJ-45
  • PoE Power Input: Up to 60W
  • PoE Power Output: Up to 55W (total for 4 ports)
  • Transmission Range 1 Extender: 656ft (200m)
  • Transmission Range 2 Extenders: 984ft (300m)
  • Data Link: Both pin 1/2, 3/6 and 4/5, 7/8
  • Power Link: Pin 1/2(+), 3/6(–) up to 12W for 4 PSE, 25W for 2 PSE
  • Network Cables: Shielded Cat-5e or higher
  • Ethernet Speed: 10/100/1000 Mbps half/full duplex
  • PoE Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 4 pairs (60W)
  • LED Indicators Power Link: Yellow
  • LED Indicators Data Link: Green, steady
  • LED Indicators Data Transmit: Green, flashy
  • IP Rating: None
  • Operating Humidity: 90% (maximum, non-condensing)
  • Operating Temperature: 14 to 113°F (-10 to 45°C)
  • Dimensions: 4-11/16 x 1-1/8 x 3-3/8 inches (119 x 28 x 85 mm)

Product Docs
