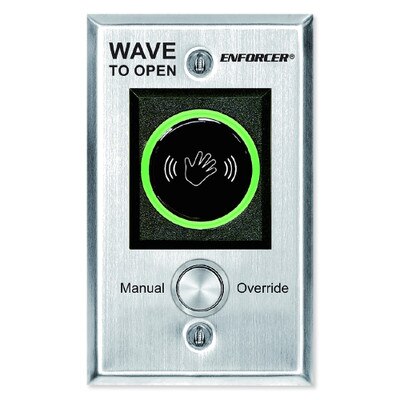

Seco-Larm Enforcer Wave-to-Open Sensor with Manual Override Button
Product Description
With a simple wave of a hand, the Seco-Larm Enforcer Wave-to-Open Sensor with Manual Override Button uses IR technology to request egress from a protected area or activate a device. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 2-3/8"~8" (6~20 cm)
- Stainless steel single-gang plate 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- LED illuminated sensor area for easy identification
- Quick connect screwless terminal block
- Selectable LED colors (turns from red to green or green to red) when activated
- Adds manual override button as a backup to the sensor
In The Box:
- Wave-to-Open Sensor
- Manual
Tech Specs
- Part Number: SD-927PKC-NEVQ
- Operating Voltage: 12~24 VAC/VDC
- Current Draw (max.): 120mA@12VDC
- Relay Type: Form C dry contact, 3A@24VDC
- Override Button:
- Switching Capacity: 3A@24VDC
- Mechanical Life: 500,000 cycles
- Response Time: 10ms
- LEDS: Default, reversible by jumper
- Standby: Red
- Triggered: Green
- Output Time: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
- Sensing Range: Adjustable, 2-3/8"~8" (6-20 cm)
- Operating Temperature: -4°~131° F (-20°~55° C)
- Weight: 3.9-oz (110g)
- Warranty: 1 Year
