Sensaphone 4G LTE Modem with Battery Backup, Verizon

$1,111.50
SKU: PHFGD4GLTEVZ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

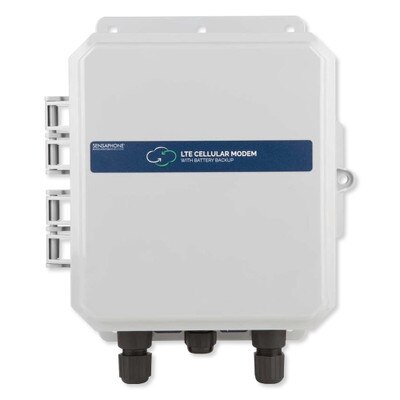

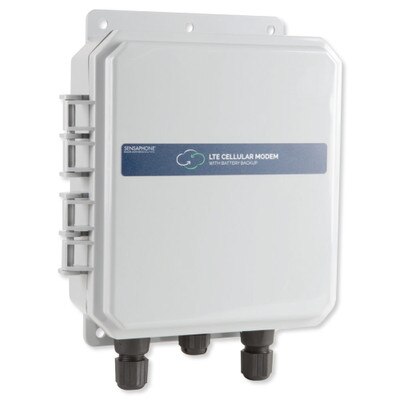

The 4G LTE Cellular Modem with Battery Backup can be used with all Stratus EMS, Sentinel, and Sentinel Pro Ethernet models to provide cellular access. The modem allows you to place your Sensaphone in a location where the required Ethernet connection may not be accessible, but a cellular signal is available. The unit features a lockable, IP65-Rated weatherproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat, or continuous moisture. The kit contains an external antenna that allows the Modem to be placed inside an area that may limit cellular signal strength such as a metal cabinet or inside a building. It also includes a power supply and battery backup that will keep the device active for up to 8 hours in the event of a power loss. The Modem is connected to the Sensaphone via an Ethernet cable (not included).

Features:

  • Connects any Ethernet-based Stratus, Sentinel and Sentinel Pro to the cloud via a cellular connection
  • Weatherproof housing allows unit to be mounted outdoors
  • Cellular service subscription required for use
  • Battery backup will power the Modem for up to 8 hours in the event of a power loss
  • Includes external antenna, power supply and wall mounting hardware

In The Box:

  • Cellular Modem
  • Antenna
  • IP65 weatherproof enclosure
  • Power Supply
  • Battery Backup

NOTES: Sentinel Monitoring System (Sentinel, Sentinel Pro, or Stratus EMS) are sold separately. Only compatible with AT&T cellular network. For compatibility with AT&T cellular network, see PHFGD-4GLTE-AT. Ethernet cable not included.

Available for sale only in the U.S.

Tech Specs

  • Part Number: PHFGD-4GLTE-VZ
  • Modem Technology: 4G-LTE (Bands B2, B4, B5, B12 & B13) for US and Canada only
  • Modem Data Rate: 150Mbps downlink, 50Mbps Uplink
  • Cellular Carriers: Verizon
  • Antenna:
    • Omni-directional outdoor IP66 rated
    • Frequencies: 2G/3G/4G from 698-960/1710-3800MHz
    • Peak Gain: 5 dBi
    • Cable 16'
    • Wall or Mast Mount
  • Housing: High impact polycarbonate, UL Type 4X/6P (IP 66/68)
  • Dimensions: 11.1 inches H x 9.4 inches W x 3.5 inches D
  • Weight: 8.5lbs
  • Operating Temperature: 5°F to 122°F | -15°C to 50°C
  • Warranty: 1 Year Limited
