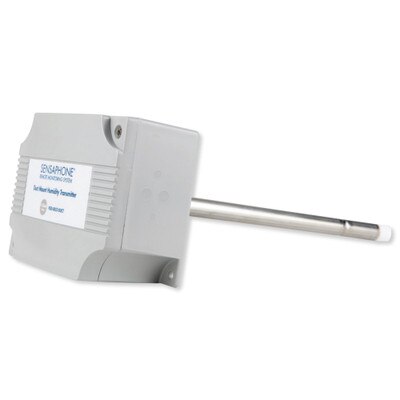

Sensaphone Duct-Mount Humidity Transmitter

$206.10
SKU: PHFGD0052DUCT

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Monitor humidity in duct work.

This humidity transmitter can be used with Sensaphone models that accept a 4-20mA signal to detect humidity levels. The device will cause your Sensaphone to activate an alarm when the humidity level reaches a set threshold. With a range of 0% to 100% RH level, the sensor causes an alarm when the humidity exceeds or falls below the set limit. The sensor is specifically designed to be mounted in a return air duct.

In The Box:

  • Humidity sensor
  • Mounting hardware
  • Operating instructions

NOTE: Requires a 24VDC power supply, FGD-0070, not included, for any Sensaphone that does not provide 24VDC output power. Wire not included.

Available for sale only in the U.S.

Tech Specs

  • Part Number: FGD-0052-DUCT
  • Sensor Series: 4-20mA Series
  • Connection: Hardwired
  • Power: Requires a 24VDC power supply (FGD-0070, not included)
  • Operating Temperature: -40° to 158°F (-40° to 70°C)
  • Humidity: 0 to 100 percent
  • Accuracy: ±3 percent RH (5 to 95 percent RH)
  • Housing: IP65 NEMA 4X
  • Dimensions: 4.5(W) x 3.3(H) x 2.1(D) inches (114 x 84 x 53mm)
