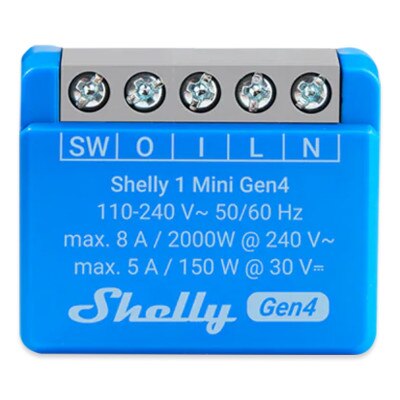

Shelly 1 Mini Gen4 Compact Smart Switch
Product Description
The Shelly 1 Mini Gen4 is a remarkably small yet powerful smart relay switch designed to bring automation to even the tightest electrical spaces in your home. Despite its size, this device delivers full-featured smart control with Wi-Fi, Bluetooth, Matter, or Zigbee connectivity, scheduling, voice assistant compatibility with Amazon Alexa, Google Assistant, and Sire, as well as local or cloud-based control. It's designed with 1 switch/button input, 1 potential-free contact relay input, 2 power supply inputs, and 1 potential-free contact relay for integration into both low-voltage and high-voltage systems. It's ideal for retrofitting behind existing switches, inside junction boxes, or in shallow wall cavities where space is limited. With support for both AC and DC power, the Shelly 1 Mini Gen4 can control a wide range of devices, from lights and fans to garage doors and gates. Whether you're expanding an existing smart home setup or just getting started, this ultra-compact switch offers the perfect blend of flexibility, performance, and convenience.

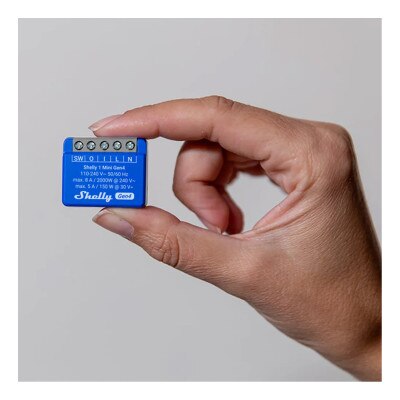

- Ultra-compact design – 35% smaller than the standard Shelly 1 Gen4
- Supports 110-240V AC and 12-24V DC input
- Works with Amazon Alexa, Google Home, SmartThings, and MQTT
- Direct Wi-Fi connection-no hub required
- Features scheduling, timers, and automation through the Shelly app

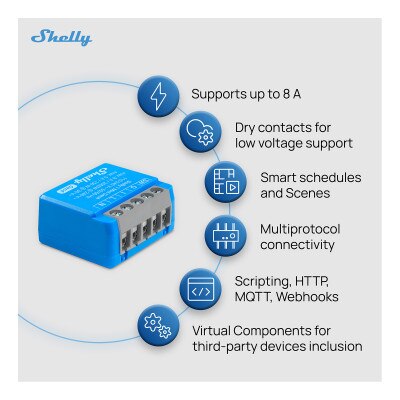

- Supports dry contact for maximum application flexibility
- Enhanced protection with over-temperature and overload safeguards
- Seamless integration with other Shelly devices and platforms
Why You Would Use This Product:

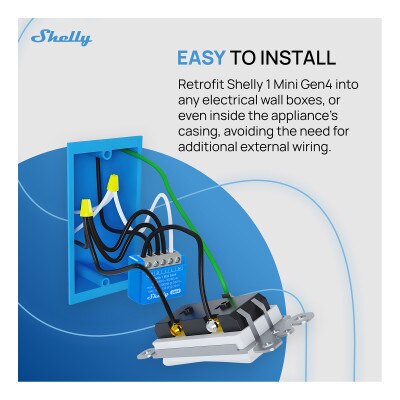

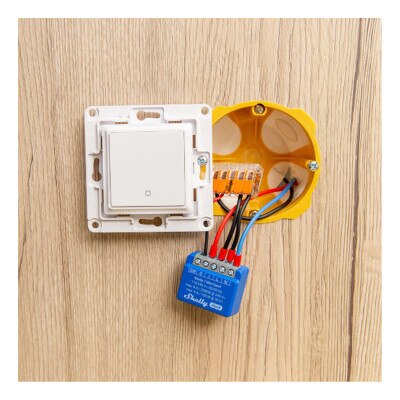

The Shelly 1 Mini Gen4 is perfect for tight installations where standard smart switches simply won't fit. Use it to retrofit existing wall switches and gain smart control over lights without changing the switch's physical appearance. It's great for adding automation to ceiling fans, bathroom exhaust fans, or floor lamps. You can also integrate it into door or gate controls, small appliances, or even low-voltage systems like alarm zones. If you're looking to discreetly upgrade older properties or small spaces such as apartments, this mini switch makes automation easy without sacrificing functionality.
In The Box:
- Shelly 1 Mini Gen4 Compact Smart Switch
- Manual
NOTE: Requires connection to a Wi-Fi network.
Tech Specs
- Part Number: 1 Mini Gen4
- EAN: 3800238070786
Physical

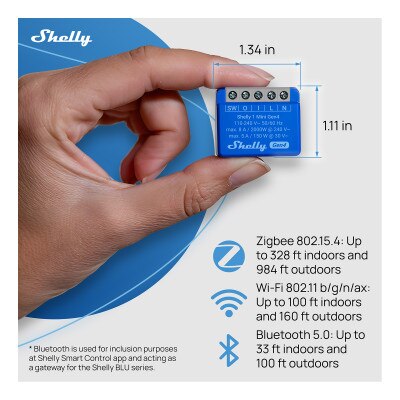

- Size (HxWxD): 29 x 34 x 16 ±0.5 mm / 1.34 x 1.11 x 0.63 ±0.02 inch
- Weight: 19 ±1 g / 0.65 ±0.04 oz
- Screw Terminals Max Torque: 0.4 Nm / 3.5 lbin
- Conductor Cross Section: 0.2 to 2.5 mm2 / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
- Mounting: Wall Box
- Shell Material: Plastic
- Shell Color: Blue
- Connector Color: Grey
Environmental
- Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. Altitude: 2000m / 6562ft
Electrical
- Power Supply: 110-240 V~
- Rely: Dry, NO contact, 1-pole, µ contact
- Power Consumption: <1.2 W
- External Protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output Circuits Ratings
- Max. Switching Voltage:
- 8 A/240 V~
- 5 A/30 V⎓
- Max. Switching Current:
- 8 A/240 V~
- 150 W/30 V⎓
- Max. Output Power:
- 2000 W/240 V~
- 150 W/30 V⎓
- Voltage Protection / Cutoff: No
- Current Protection / Cutoff: No
- Max Power Protection / Cutoff: No
Sensors, Meters
- Internal-Temperature Sensor: Yes
Radio
- Wi-Fi
- Protocol: 802.11 b/g/n/ax
- RF Band: 2412 – 2472 ÐœHz
- Max. RF power: <20 dBm
- Range: Up to 30m / 100ft indoors and 50m / 160ft outdoors (Depends on local conditions)
- Bluetooth
- Protocol: 5.0
- RF Band: 2402 – 2480 MHz
- Max. RF Power: <4 dBm
- Range: Up to 10m / 33ft indoors and 30m / 100ft outdoors (Depends on local conditions)
- Zigbee
- Protocol: 802.15.4
- RF Bands: 2400 to 2483.5 MHz
- Max. RF Power: <20 dBm
- Range: Up to 100m / 328ft indoors and 300 meters / 984ft outdoors (Depends on local conditions)
Microcontroller Unit
- CPU: ESP-Shelly-C68F
- Flash: 8MB
Firmware Capabilities
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
