Shelly 1PM Mini Gen4 Smart Relay
Product Description

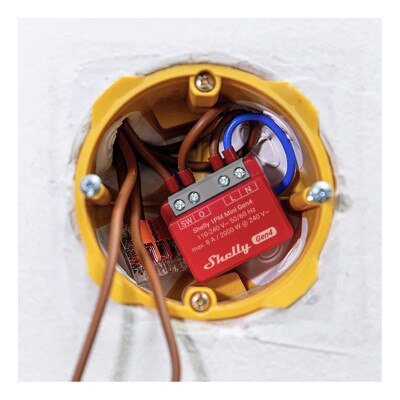

The Shelly 1PM Mini Gen4 Smart Relay adds remote control via Wi-Fi or Zigbee technology and power consumption monitoring of devices controlled by a switch or outlet. Designed to fit into small places, it can be installed behind a switch or outlet or inside the casting of an appliance. With built-in Wi-Fi and Zigbee connectivity, you can connect the Mini Gen4 Smart Relay directly to your network without requiring a hub and manage it via the Shelly app or integrate it with Wi-Fi or Zigbee smart home networks. The device supports resistive loads (incandescent bulbs and heating devices), capacitive loads (such as capacitor banks and electronic equipment), and inductive loads (like LED drivers, transformers, fans, refrigerators, and air conditioners). Its power monitoring feature provides real-time insights into energy usage, helping you reduce costs and optimize consumption. The MiniGen4 Smart Relay also acts as a Wi-Fi and Zigbee signal extender to increase the range of your network, as well as a Bluetooth gateway to include Shelly BLU devices into your network.
- Smart relay adds Wi-Fi & Zigbee remote control and power monitoring to a switch or outlet via the Shelly app, no hub needed
- Real-time power monitoring to track energy consumption

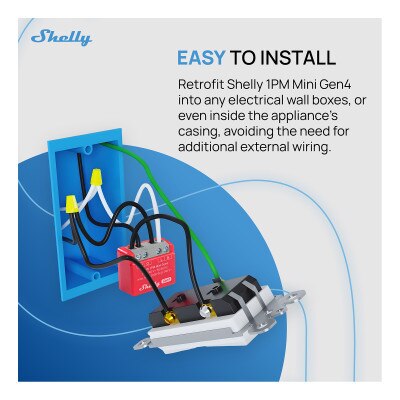

- Compact size for easy installation in standard electrical enclosures
- Compatible with Alexa, Google Assistant, and Home Assistant for voice control and automation
- Acts as Bluetooth gateway to add Shelly BLU devices to a smart network, as well as a Wi-Fi and Zigbee repeater
- Overload and overheat protection for enhanced safety
- Advanced scheduling and scene automation for energy efficiency and convenience
Why You Would Use This Product:
The Shelly 1PM Mini Gen4 Smart Relay is perfect for automating and managing your electrical devices. Use it to monitor the energy consumption of high-power appliances like refrigerators, heaters, or washing machines, and make adjustments to save on electricity costs. Automate lights and appliances to operate on a schedule, ensuring they're on only when you need them. Its built-in Wi-Fi and Zigbee signal extenders increase the range of your network, while the Bluetooth gateway allows more devices to be added. For additional security, control devices remotely while you're away, giving the appearance of an occupied home. Its compact design and versatile functionality make it a practical choice for both residential and commercial settings.
In The Box:
- Shelly 1PM Mini Gen4 Smart Relay
- Manual
NOTE: Requires connection to a Wi-Fi network.
Tech Specs
- Part Number: 1PM MINI GEN4
- EAN: 3800238070809
- Power Supply: 110 – 240 VAC
- Relay: NO contact, 1-pole, µ contact
- External Protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
- Max. Switching Voltage: 240 VAC
- Max. Switching Current: A/240 VAC
- Power Measurement: Yes
- Voltage Protection/Cutoff: Yes
- Current Protection/Cutoff: Yes
- Max Power Protection/Cutoff: Yes
- Internal-Temperature Sensor: Yes
- Max. Switching Power: 2000 W
- Power Consumption: <1.2 W
- Wi-Fi Protocol: 802.11 b/g/n
- RF Band: 2412 – 2472 MHz
- Max. RF Power: <20 dBm
- Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 5.0
- RF Band: 2400 – 2483.5 MHz
- Max. RF Power: <4 dBm
- Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- Zigbee Protocol: 802.15.4
- RF Band: 2400 – 2483.5 MHz
- Max. RF Power: <20 dBm
- Range: Up to 100 m / 328ft indoors and 300 m / 984 ft outdoors (Depends on local conditions)

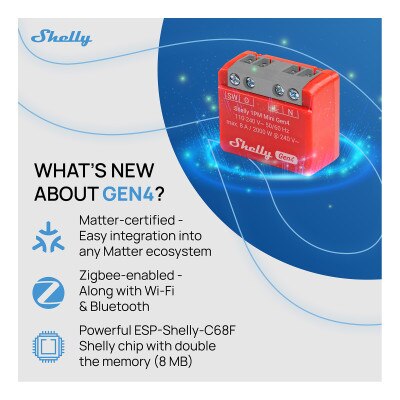

- CPU: ESP-Shelly-C68F
- Flash: 8 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- Scripting: Yes
- UDP: Yes
- Advanced Schedules: Yes
- KVS (Key-Value Store): Yes
- Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
- Conductor Cross Section: 0.2 to 2.5 mm / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
- Mounting: Wall Box
- Terminal Color: Black
- Shell Material: Plastic
- Shell Color: Red, C-3%; M-100%; Y-70%; K-12%
- Connectors Color: Grey
- Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max Altitude: 2000m / 6562ft

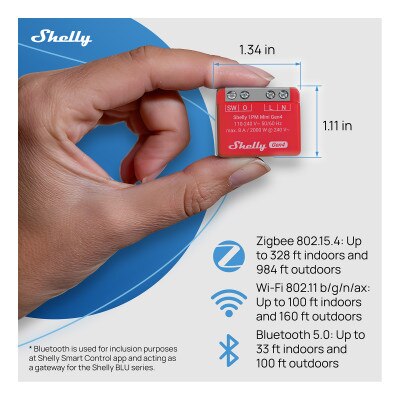

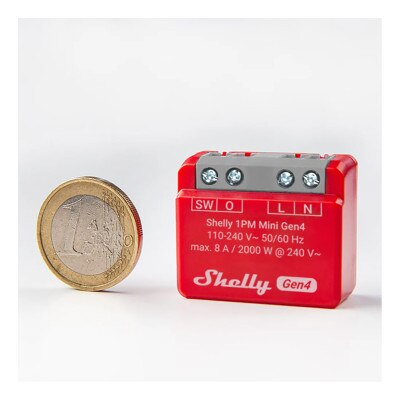

- Size (HxWxD): 1.34 x 1.11 x 0.63 ±0.02 inches (29 x 34 x 16 ±0.5 mm)
- Weight: 18g / 0.63oz
- Warranty: 3 Year
