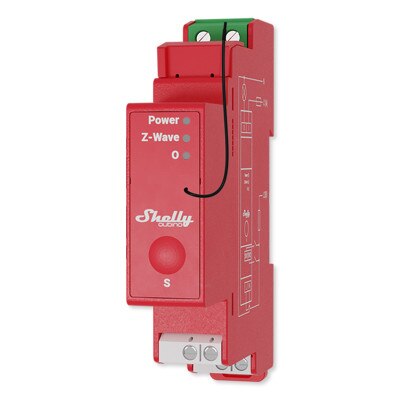

Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring
Product Description
The Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring is a versatile Z-Wave 800 relay switch designed to integrate high voltage appliances or lights into your Z-Wave automation system, providing remote On/Off and automated control over lighting and electrical devices paired with a single switch or outlet. The Pro 1PM can handle an electrical load up to 16A, allowing you to include larger appliances such as computer and office setups, portable AC units, or lighting installations into a Z-Wave network. It features the latest Z-Wave 800 wireless protocol which ensures reliable signal performance, greater encryption protection, and wide compatibility with most Z-Wave compatible smart home platforms. Additionally, the Pro 1PM offers energy monitoring to track live and recorded power consumption to provide users insights into their regular energy usage in order to help optimize their energy usage. The Pro 1PM is designed to mount onto a DIN-rail inside a breaker box and connects to an active terminal. A neutral wire is required for installation. Whether you want to reduce your energy bill, increase convenience, or manage multiple devices from a single interface, the Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring provides the functionality and flexibility needed to meet your automation goals.
- Adds Z-Wave wireless control and automation to a single electrical load controlled by an outlet or On/Off Switch

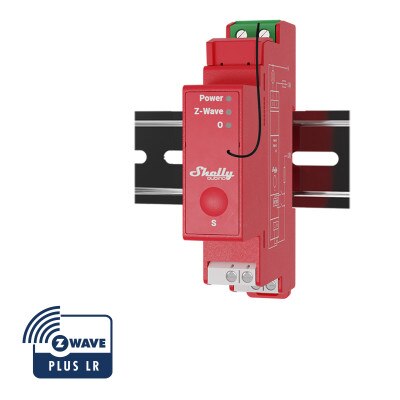

- DIN-rail mounting design installs into electrical breaker box
- Provides real-time energy consumption data to help you track and reduce your electricity usage
- Z-Wave 800 compatibility provides enhanced signal strength, greater transmission range, and wide compatibility with most Z-Wave and Z-Wave Plus devices
- Z-Wave Smart Start and S2 encryption technology to pair new devices quickly and ensure enhanced security
- Overheat, overpower, and overvoltage protection automatically shuts off the Pro 1PM before voltage spikes or rapid temperature changes damage the Pro 1PM or its connected devices or wiring
- Works with Alexa through the Shelly Smart Control app or connected Z-Wave compatible hub's app
Why You Would Use This Product:
The Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring is perfect for both residential and commercial applications, offering a versatile solution for enhancing your smart home or business environment. In a residential setting, you can automate your lighting to turn on or off according to a schedule or presence, ensuring energy savings and convenience. For example, you can set up schedules to ensure lights are turned off during the day and turned on in the evening, creating a comfortable living environment while saving on energy bills. In commercial applications, this relay module can be used to manage office lighting systems, ensuring that lights are only on during business hours and automatically turning off after hours, contributing to energy savings and operational efficiency. Additionally, the energy monitoring feature provides insights into power consumption, helping both homeowners and businesses optimize their energy usage.
In The Box:
- Wave Pro 1PM
- DSK Label
- User Manual
Notes:
- A Z-Wave compatible hub or gateway is required for operation, sold separately.
- A neutral wire is required for installation.
Tech Specs
- Part Number: Wave Pro 1PM
- Power Supply: 110-240 V AC, 50/60 Hz
- Power Consumption: < 0.3W
- Power Measurement (W): Yes
- Max. Switching Voltage AC: 240 V
- Max. Switching Current AC: 16 A
- Max. Switching Voltage DC: N/A
- Max. Switching Current DC: N/A
- Overheating Protection: Yes
- Overload Protection: Yes
- Overvoltage Protection: Yes
- Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
- Z-Wave Repeater: Yes
- CPU: Z-Wave S800
- Z-Wave Frequency Bands: 908.42 MHz
- Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 mW
- Size (H x W x D): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
- Weight: 61 g / 2.15 oz.
- Mounting: DIN Rail
- Screw Terminals Max. Torque: 0.4 Nm / 3.54 lbin
- Conductor Cross Section: 0.5 to 2.5 mm2 / 20 to 14 AWG (green connector) 0.5 to 1.5 mm2 / 20 to 16 AWG (white connectors)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
- Shell Material: Plastic
- Color: Red
- Ambient Temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. Altitude: 2000 m / 6562 ft.
- Warranty: 2 Year
