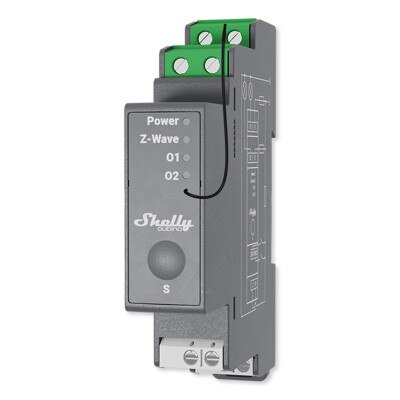

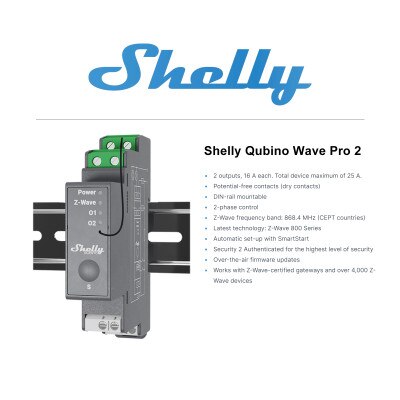

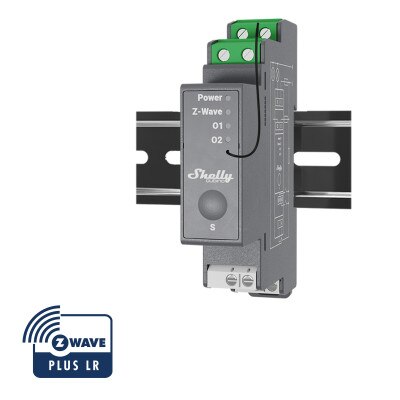

Shelly Qubino Wave Pro 2 Channel Z-Wave 800 Relay Module

$71.49
SKU: QUWAVEPRO2

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Shelly Qubino Wave Pro 2 Channel Z-Wave 800 Relay Module is a DIN-rail mountable relay switch designed to add Z-Wave wireless control and automation to two individual electrical loads. The Pro 2 can handle a single electrical load drawing up to 25A or to two electrical loads each drawing up to 16A. This high voltage support enables you to include larger appliances such as computer and office setups, portable AC units, or lighting installations into a Z-Wave network. From the Shelly Smart Control mobile application, or the mobile app of a connected Z-Wave hub or controller, users can issue On/Off commands to the Pro 2 and its controlled devices on demand or program the Pro 2 to switch On/Off in response to preprogrammed triggers or at scheduled time of day. The Pro 2 features the latest Z-Wave 800 wireless protocol which ensures reliable signal performance, greater encryption protection, and wide compatibility with most Z-Wave compatible smart home platforms. The Pro 2 installs in standard electrical breaker boxes, and it requires a neutral wire for operation. Whether for residential comfort or commercial efficiency, the Shelly Qubino Wave Pro 2 Channel Z-Wave 800 Relay Module offers versatile and reliable control over your electrical systems, enhancing the overall smart home or office experience.

  • Adds Z-Wave wireless control and automation to two electrical loads controlled by an outlet or On/Off switch
  • Supports 2 outputs at 16A each, total device maximum of 25A
  • DIN-rail mounting design installs into electrical breaker box
  • Z-Wave 800 compatibility provides enhanced signal strength, greater transmission range, and wide compatibility with most Z-Wave and Z-Wave Plus devices
  • Z-Wave Smart Start and S2 encryption technology to pair new devices quickly and ensure enhanced security
  • Overheating and temperature protection shields the Pro 2 and connected devices from rapid changes in temperature or extreme temperatures
  • Works with Alexa through the Shelly Smart Control app or connected Z-Wave compatible hub's app

Why You Would Use This Product:

The Shelly Qubino Wave Pro 2 Channel Z-Wave 800 Relay Module is perfect for those looking to automate and manage their electrical systems efficiently. In a residential setting, it allows homeowners to control lighting and appliances in different rooms independently. For example, you can automate your outdoor lights to turn on at sunset while simultaneously managing your indoor lighting based on occupancy or time of day, thus improving convenience and energy efficiency. In commercial environments, the module can manage multiple office lighting systems or equipment, ensuring operational efficiency by automating devices according to business hours or occupancy.

In The Box:

  • Wave Pro 2 Module
  • DSK Label
  • User Manual

Notes:

Tech Specs

  • Part Number: Wave Pro 2
  • Power Supply: 110-240 V AC, 50/60 Hz
  • Power Consumption: < 0.3 W
  • Max. Switching Voltage AC: 240 V
  • Max. Switching Current AC: 16 A per channel, 25 A total
  • Max. Switching Voltage DC: N/A
  • Max. Switching Current DC: N/A
  • Overheating Protection: Yes
  • Power Measurement (W): No
  • Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
  • Z-Wave Repeater: Yes
  • CPU: Z-Wave S800
  • Z-Wave Frequency Bands: 908.42 MHz
  • Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 mW
  • Size (H x W x D): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
  • Weight: 73 g / 2.58 oz.
  • Mounting: DIN Rail
  • Screw Terminals Max. Torque: 0.4 Nm / 3.54 lbin
  • Conductor Cross Section: 0.5 to 2.5 mm / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
  • Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
  • Shell Material: Plastic
  • Color: Gray
  • Ambient Temperature: -20°C to 40°C / -5°F to 105°F
  • Humidity: 30% to 70% RH
  • Max. Altitude: 2000 m / 6562 ft.
  • Warranty: 2 Year
