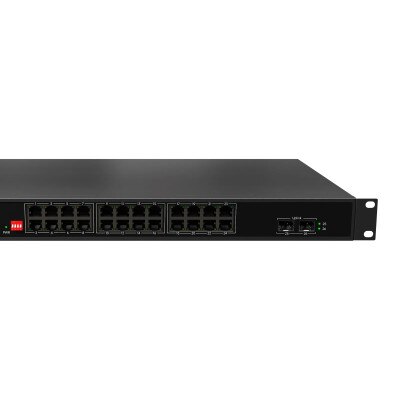

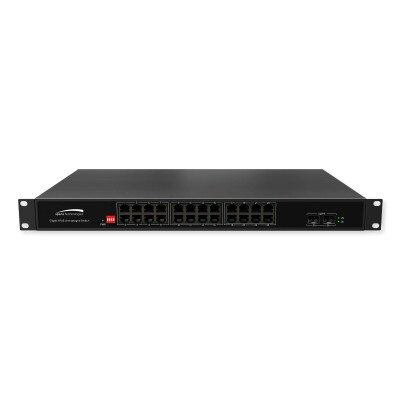

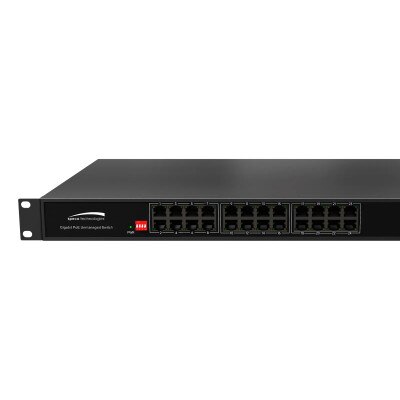

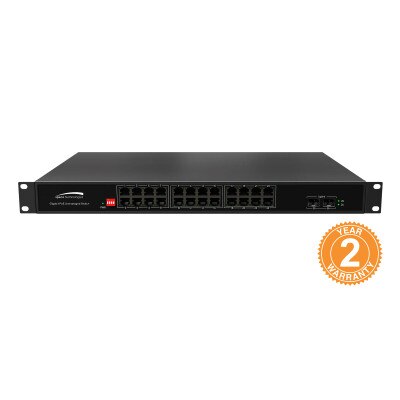

Speco 26-Port Gigabit Switch with 24-PoE Ports and 2 SFP Uplink
Product Description
The Speco 26-Port Gigabit Switch with 24-PoE Ports and 2 SFP Uplink provides high-performance network connectivity and power delivery for a wide range of devices. This managed network switch features 24 Power over Ethernet (PoE) ports, allowing simultaneous power and data transmission to devices such as IP cameras, access points, and VoIP phones. Two SFP uplink ports ensure fast and reliable data transfer for demanding applications and integration with larger networks.
The Switch's PoE Watchdog and Storm Control functions reset ports automatically when port connections are interrupted and monitor traffic levels to optimize bandwidth allocation. A Link Extension Mode provides up to 820ft (250 m) long-distance power transmission at 10Mbps for larger installations to guarantee a constant network connection. Finally, the Switch's Port Isolation Mode isolates each port's network connection except for the uplink ports to provide additional security and network performance.
- Provides 24 PoE ports and 2 SFP uplink ports for expanded device connectivity
- PoE functionality supports simultaneous power and data transfer for IP devices
- Advanced management capabilities enable precise control and monitoring of the network
- Gigabit speeds ensure high-performance connectivity for data-intensive applications
- Two SFP uplink ports allow seamless integration with larger networks
- Energy-efficient technology reduces power consumption while maintaining performance
Why You Would Use This Product:
The Speco 26-Port Gigabit Switch with 24-PoE Ports and 2 SFP Uplink is ideal for users who need a reliable and scalable networking solution for residential or commercial applications. In a home setting, this switch can power and connect IP cameras, smart home devices, and access points, streamlining installations and minimizing cable clutter with PoE technology. For commercial applications, such as office buildings, warehouses, or retail spaces, the switch supports extensive surveillance systems, wireless networks, and VoIP infrastructure, ensuring seamless and efficient operation. The two SFP uplink ports are particularly beneficial for businesses requiring integration with larger networks or fiber-optic connections. With its advanced management features and robust design, this switch offers unparalleled performance and flexibility for creating or expanding a high-capacity network.
In The Box:
- 26-Port Gigabit Switch
- Power Cord
- Rack Mount Ears
- 2pcs Copper Transceiver modules
Available for sale only in the U.S.
Tech Specs
- Part Number: P24S26G2
- UPC: 030519043366
I/O Interface
- Power Input: AC 100-240V, 50/60Hz
- Ethernet:
- 24 x 10/100/1000M Port
- 2 x Gigabit SFP Port
Performance
- Switching Capacity: 52Gbps
- Throughput: 38.6Mpps
- Packet Buffer: 4.1M
- MAC Address: 8K
- Jumbo Frame: 10KB
- Transfer Mode: Store and forward
- MTBF: 100000 hours
Standards
- PoE Standards:
- IEEE802.3af (15.4W)
- IEEE802.3at (30W)
- Network Standards:
- IEEE802.3 (10Base-T)
- IEEE802.3u (100Base-TX)
- IEEE802.3ab (1000Base-TX)
- IEEE802.3z (1000Base-FX)
- IEEE802.3x (Flow control)
- Recommended Network Medium:
- 10Base-T: Cat3,4,5 or above UTP(≤100M)
- 100Base-TX: Cat5 or above UTP(≤100M)
- 1000Base-TX: Cat5 or above UTP(≤100M)
- Industry Standards:
- EMI: FCC Part 15
- CISPR (EN55032) Class A
- EMS: EN61000-4-2 (ESD)
- EN61000-4-4 (EFT)
- Shock: IEC 60068-2-28
- Free Fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Optical Media:
- Multimode Fiber: 50/125, 62.5/125, 100/140um
- Single Mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Environmental
- Operating Temperature: 14 to 122°F (-10 to 50°C), 10 to 90 percent RH
- Storage Temperature: -40 to 158°F (-40 to 70°C), 5 to 90 percent RH
Mechanical
- Dimensions: 17.3 inches L x 8 inches W x 1.73 inches H (440mm x 205mm x 44mm)
- Weight: 8.6 lbs (3.9kg)
- Power Voltage:
- Input Voltage: AC100-240V, 50/60Hz
- Power Supply: 52V, 7.69A (included)
- Per Port Max PoE Power: 30W
- Total Power Budget of unit: 378W
