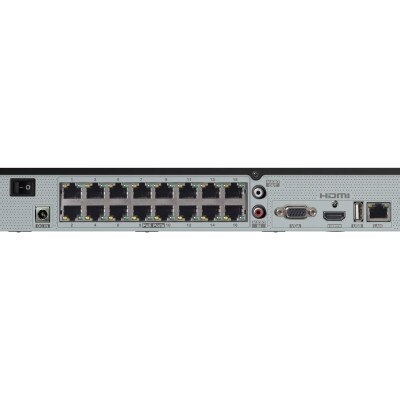

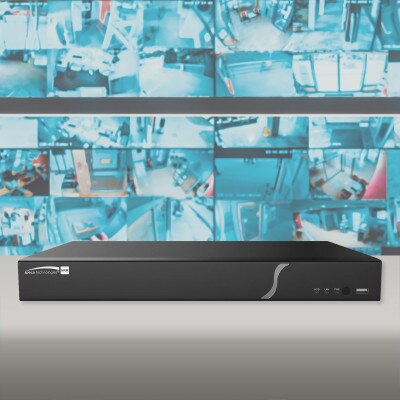

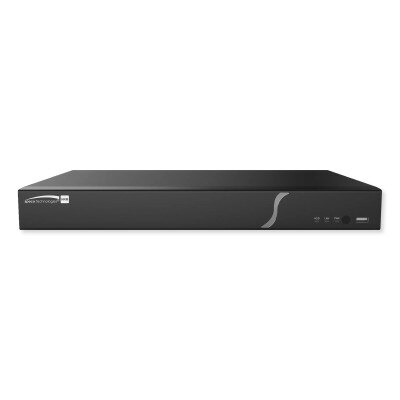

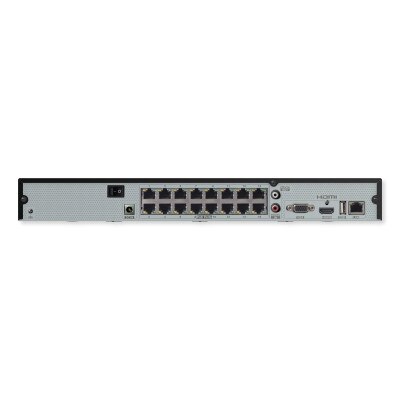

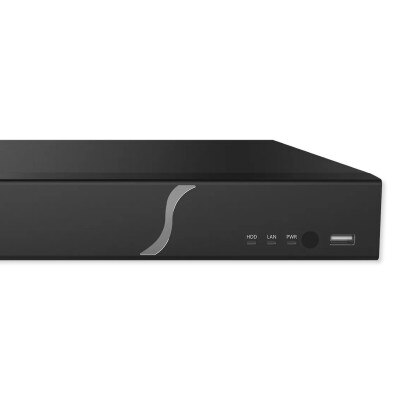

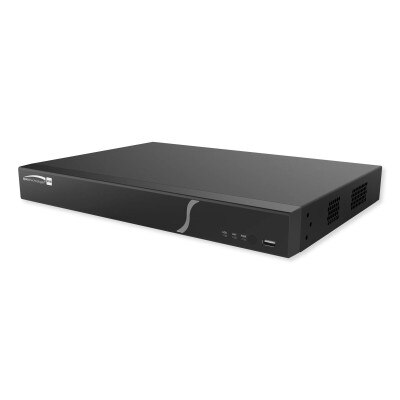

Speco 4K H.265 NVR with Smart Analytics, 16 Channel with 16 Built-In PoE Ports
Product Description
The Speco 4K H.265 NVR with Smart Analytics 16 Channel with 16 Built-In PoE Ports is a powerful network video recorder designed to support up to 16 security camera feeds and provide intelligent analytics on recorded footage to identify subjects and potential threats around your property. This NVR is engineered to support up to 16 channels of 720p to 4K resolution video recording, providing crystal-clear footage for comprehensive surveillance monitoring. Smart Analytics software and Facial Detection technology simplify playback review with intelligent monitoring to easily locate specific events and subjects, enhancing the effectiveness of your security setup. Smart Analytics and Facial Detection features can only be utilized when cameras that support those features are connected to the NVR. This NVR also includes 2 SATA ports to add separate storage devices or to other NVRs to greatly expand your surveillance network. View live and stored video from your mobile device through the free SecureGuard or Speco Blue mobile apps for iOS and Android devices.
Key Features:
- Accommodates up to 16 channels of video input from compatible cameras, allowing for expansive coverage of your home or business premises
- Enables ultra-high-definition video recording up to 4K resolution for unmistakable clarity and detail in surveillance footage
- Facial Detection software identifies human subjects to assist with playback review
- Smart Analytics features include motion detection, object detection, and line crossing detection for proactive security monitoring
- H.265 Compression technology to optimize bandwidth usage and storage space without compromising video quality
- Remote Access via Speco Blue or Speco SecureGuard applications allows users to remotely view live and recorded footage from their NVR using a smartphone, tablet, or computer
- Compatible with a wide range of Speco IP cameras and other surveillance devices
Why You Would Use This Product:
With the Speco 16-Channel 4K NVR, you can monitor your home or business with confidence, knowing that advanced Facial Detection and smart analytics are working to keep your property safe. Whether you're looking to enhance security at your front door, monitor activity in your backyard, or keep an eye on sensitive areas indoors, this NVR offers the flexibility and scalability to meet your needs. Its remote access capabilities also allow you to stay connected and informed wherever you are, providing real-time updates and alerts on security events.
In The Box:
- NVR Unit
- Power Cable
- Ethernet Cable
- Software CD
- Optical Mouse
- Quick Start Guide
Notes:
- Hard drives not covered by 5-year warranty.
- USB device not included.
- Facial Detection and Smart Analytics require Speco Facial Detection or Analytic Cameras connected to the NVR, both sold separately.
Available for sale only in the U.S.
Tech Specs
- Part Number:
- N16NRM4TB: 4 TB
- N16NRM6TB: 6 TB
- N16NRM8TB: 8 TB
- N16NRM12TB: 12 TB
- N16NRM24TB: 24 TB
- UPC:
- N16NRM4TB: 030519045919
- N16NRM6TB: 030519045926
- N16NRM8TB: 030519045933
- N16NRM12TB: 030519045940
- N16NRM24TB: 030519045964
Video
- Input: 16 channels
- IP Camera: H.264/H.265 Auto Detection (Max. 8MP)
- Output: Main Monitor:
- HDMI: Max. 4K (2160p)
- VGA: Max Full HD (1080p)
Audio
- Network Input: 16 Ch. IPC audio input
- Local Input: RCA x 1
- Local Output: RCA x 1
Recording
- Endcoding Resolution: 8MP (4K) / 6MP / 4MP / 3MP / 1080p / 720p / 960H / DH / CIF
- Codec: H.264/H.265 Auto Detection
- Max Frame Rate per Channel: Any resolution @ 30fps
- Recording Mode: Analytics / Continuous / Motion / Sensor / Schedule / Manual
- Pre/Post Recording: Max 5 seconds/ Max 10 minutes
Search & Playback
- Search Modes: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
- Simultaneous Playback: Max 16 Channels
- Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
- Playback Resolutions: 1 x 8MP @ 30 FPS, 6 x 1080P @ 30 FPS
- Playback Functions: Play, pause, fast forward, rewind, digital zoom, etc.
Backup
- Media: USB Flash Drive, Network
- File Format: MP4, JPG, AVI, proprietary format (includes player)
Storage
- HDD: Interface Type: SATA II
- Max Capacity of Each HDD: 40TB
- Internal SATA ports: 2
- USB Ports:
- Front: 1 USB 2.0
- Rear: 1 USB 2.0
Alarm
- Mode: Manual, sensor, motion, exception, intelligence
- Input: IPC alarm in
- Output: IPC alarm out
- Linkage: Record/Snapshot/Preset/Email/Pop-up Window
User I/F
- Input Method: IR Remote, Mouse
Network
- Bandwidth: 160Mbps
- P2P/Dynamic DNS: Free US-Based Speco P2P and DDNS Service
- Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP
Network Access
- Mobile Client: iOS/Android via Speco Blue App, SecureGuard® Client
- Web Viewer: Google Chrome®, Microsoft Edge®, Firefox®
- VMS/CMS: Speco Blue VMS, SecureGuard®
- User Access: Max 64 users online
Features
- Digital Zoom: Live and Playback, Free Size
- S.M.A.R.T.: Temperature, Power On Time, Bad Sectors, and Health
Smart Analytics
- Face, People, Vehicle Detection: Supported through all 16 channels
- License Plate Recognition: Supported through all 16 channels
Power
- Power Consumption: ≤ 10W (without HDD)
- PoE Ports: 16
- Power per PoE Port Max: 30W
- Total PoE Power Budget: 150W
Environmental & Physical
- Operating Temperature: 14°F to 122°F (-10° to 50°C)
- Relative Humidity: 10 to 90 percent RH
- Dimensions: 15 (W) x 10.6 (H) x 1.8 (D) inches (380 x 268 x 45 mm)
- Warranty: 5-Year Limited, Hard Drives Excluded
