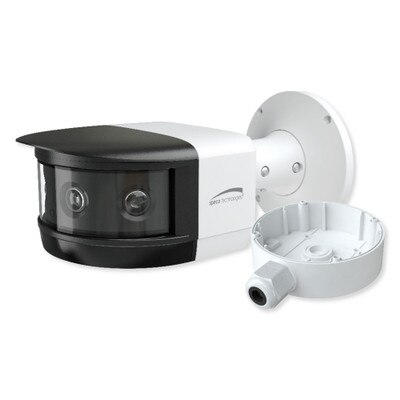

Speco 8MP Panoramic IP Camera with Flexible Intensifier, Analytics and Junction Box

$1,152.17
SKU: SPO8FBMS1

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Providing 24/7 HD surveillance in nearly any indoor/outdoor environment or lighting setting, the Speco 8MP Panoramic IP Camera, 3.3mm x 4 Fixed Lens will make a wonderful addition to your security system. This camera features Advanced Analytics, which provides enhanced surveillance features such as objection detection, exception, line crossing, intrusion, and other detection capabilities to vastly enhance the surveillance security of your property (requires Speco NRE Recorder). It also supports H.265, H.264, and MJPEG codecs and provides a maximum resolution of 4096 x 1800 (8MP).

  • Provides an 8MP stitched panoramic view
  • Captures up to 8MP (2MP x 4) @ 30fps
  • Flexible Intensifier Technology to fit any lighting application
  • Built-in standard PoE (IEEE 802.3af)
  • Smart IR with range up to 65' (depending on
  • scene reflection)
  • Micro SD card slot up to 128GB (card not included)
  • ONVIF Profile T Compliant
  • IP67 Compliant, weather-resistant
  • IK10 Compliant, vandal-resistant
  • Detects faces, people, and vehicles to reduce false motion alerts (with Speco NRE Recorder)
  • Object/Intrusion detection and line crossing analytics (with Speco NRE Recorder)
  • Junction box included

In The Box:

  • IP Camera
  • Junction Box
  • Installation Hardware
  • Drill Template
  • Software CD (PC)
  • Quick Start Guide

NOTES: This device supports viewing and management via a web browser on a PC. Optional plug-in power supply sold separately (uses PoE as standard). Network video recorders (NVR) sold separately. Advanced Analytic features only work with Speco NRE Recorders (sold separately).

Tech Specs

  • Part Number: O8FBMS1
  • Image Sensor: Four: Progressive scan 1/2.8" CMOS, 8MP
  • Maximum Resolution: 4096 x 1800 (8MP)
  • Field of View (H): 175° (H) – 80° (V)
  • White Balance: Auto, Indoor, Outdoor, Manual
  • Day/Night: Smart IR
  • Electronic Shutter Speed: 1 sec. ~ 1/100000 sec.
  • DNR: 3D DNR
  • Main Resolution: 4096 x 1800, 3480 x 1680, 2880 x 1264, 1024 x 452, 704 x 320 @ 30fps
  • Compensation: H.265, H.264, MJPEG
  • Bitrate Control: VBR, CBR (128Kbps ~ 16Mbps)
  • Multiple Streaming: 3 streams
  • Protocols: HTTP, HTTPs, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP
  • DDNS support: Speco DDNS (free of charge)
  • Security: User ID & Password protection, IP/Mac address filtering, digest authentication
  • User Access: Max. 10 simultaneous. The actual number of users may vary depending on bandwidth
  • Web Browser Support: Windows (Internet Explorer 8 and up)
  • PC Application: SecureGuard VMS, SecureGuard CMS
  • Mobile: SecureGuard Client, Speco Blue (iPhone and Android)
  • Other Viewing Platforms: Apple TV, Amazon Fire TV
  • Audio Compression: G.711A / G.711U
  • Audio In/Out: 2 way audio capable (additional equipment required)
  • Ethernet: 10/100 Mbps RJ45
  • Power: DC jack
  • Microphone Input: 3.5mm
  • Audio Output: 3.5mm
  • Card Slot: MicroSD, up to 128GB (not included)
  • Alarm: 1 CH alarm input; 1 CH alarm output
  • PTZ: Control RS 485
  • Reset: Yes
  • PoE: Standard (IEEE 802.3af)
  • Analytics: Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, and people intrusion
  • Alarm Triggers: Motion detection, Analytics, video tampering detection, SD card error, IP conflict, cable disconnection
  • Alarm Events: MicroSD recording, email upload
  • Image Settings: Region of interest, Saturation, Brightness, Chroma, Contrast, Noise reduction
  • Power: PoE, 12VDC (power supply not included)
  • Power Consumption: 12.9W (max)
  • Operating Temperature: -22°F ~ 140°F
  • Operating Humidity: Less than 95 % (non-condensing)
  • Dimensions: 11.5(L) x 6.3(W) x 5.4(H) inches
  • Certifications: FCC, RoHS
