AFI Field Power Switch 2A DC Actuators


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm –

Product Description

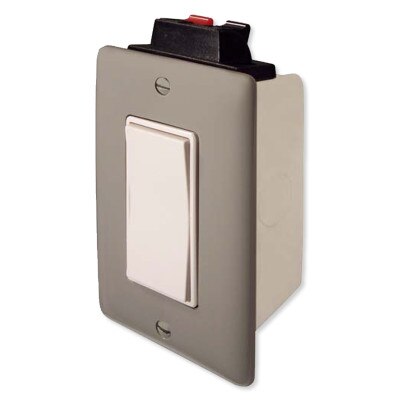

The AFI Field Power Switch is designed for use with AFI DC Actuators when testing and installing new motorized applications, such as UCS, D+H Mechatronic, or Truth Hardware motorized window openers. The Power Switch supports up to 1 amps and can connect to up to 3 individual DC actuators simultaneously.


  • Can connect and control one to 3 DC actuators (up to 1.0 amps total of actuators)
  • Push and release terminals for 2 wire DC connections to actuator.
  • Each wire can be connected to either terminal (polarity inversion)
  • Maintained contact switch with 2-prong power converter

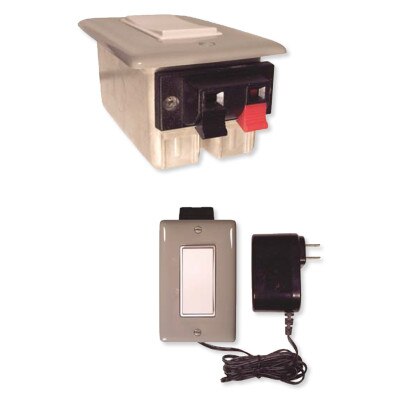

In The Box:

  • Power Switch
  • 66 in. Power Cord and Power Supply

NOTE: Requires one AC 110-240V outlet.

Tech Specs

  • Part Number: SW.FPS.01
  • Power Output: 24VDC; 1.0 amps
  • Power Input: requires AC 110-240V outlet
  • Power cord length: 66 inches
  • Materials: Plastic
  • Colors:
    • Faceplate: Gray
    • Switch: White
    • Case: White
  • Warranty: 1-Year
