UCS Nano DC Chain Actuator, 200mm/8"

SKU: UC4200xUL

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The UCS Nano DC Chain Actuator, 200mm/8" adds motorized open and close operation to wide windows, awnings, wall vents, and skylights. The actuator's 8 inch stainless steel provides durable and reliable performance, supporting up to 90lbs of force for push and pull motions.

  • Nano actuators are for awning windows, hoppers, curtain wall vents and skylights
  • Ideal for smart buildings; integrates with building and home automation systems
  • Operator has stainless steel, double-link chain for rigidity and durability
  • Low-profile, attractive aluminum case
  • Low voltage DC motors are energy efficient
  • Multiple actuators may be linked for simultaneous operation of multiple windows
  • Push/Pull Force: Up to 90 lbs
  • Minimum sash height is 10"
  • UL Listed

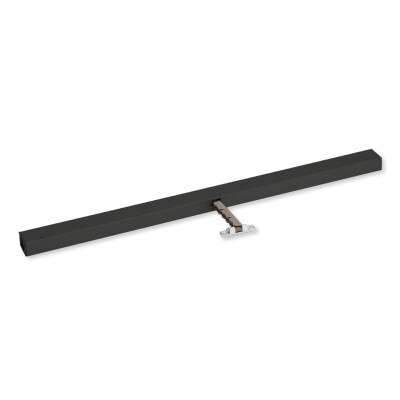

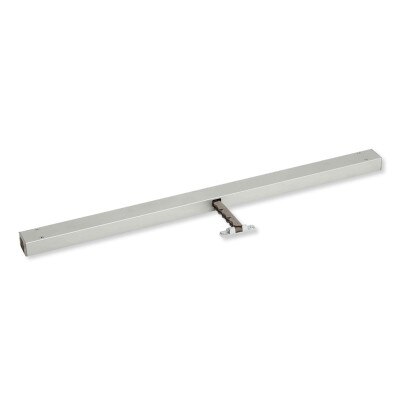

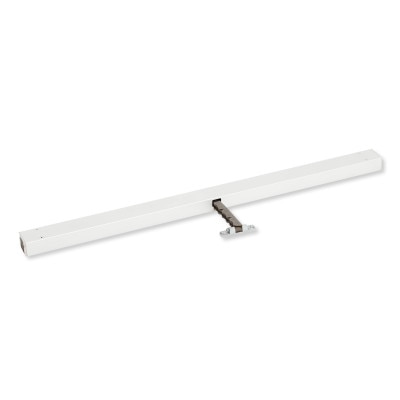

Available In: Black, Silver or White

In The Box:

  • Nano Window Motor System
  • 1.5m UL Power Cable
  • Manual

NOTES: Do not tamper with the actuator, or warranty is void. Mounting brackets sold separately.

Tech Specs

  • Part Number:
    • 41944ZUL: Black
    • 41944ZUL: Silver
    • 41946BUL: White
  • Opening Mechanism: Stainless steel chain
  • Supply Voltage: 24VDC Low Voltage
  • Nom. Current Draw: 1.2 A average
  • Limit Stop:
    • (Open): Built in limit switch
    • (Closed) Integrated electronic power cut-off
  • Chain Stroke (approx): 200mm (8")
  • Force (Max): Up to 90 lbs. (400 N) push/pull
  • Chain Speed: 4-15mm per second
  • Power Cable: UL cable 3 meter included
  • Run/Rest Cycle: For every 60 sec running (on), must then rest (off) for 120 sec
  • Ambient Operating Temperature: 14°F to 140°F (-10°C to 60°C)
  • Dimensions: 21-5/8 x 1-3/8 x 1 inches (550 x 35 x 24mm)
  • Certifications: UL
  • Protection Class: IP20
  • Warranty: 2 Years
