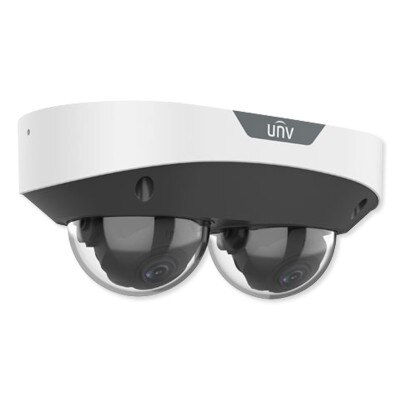

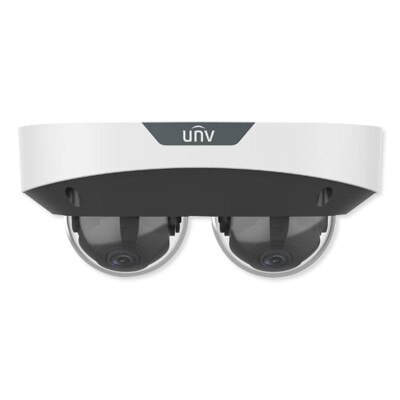

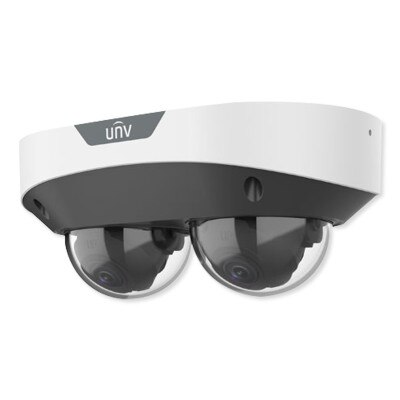

Uniview 4MP Dual Lens Non-Splicing Dome Camera, 2.8mm Fixed Lens
Product Description
The Uniview 4MP Dual Lens Non-Splicing Dome Camera, 2.8mm Lens, provides HD quality video surveillance of two separate fields of views within one monitored area. This dome security camera monitors your property with two independent lenses that each have a 4MP (2688 x 1520 @25fps) resolution CMOS sensor that works together with various innovative technologies such as 130dB true WDR and an IR-cut filter to capture high-quality footage in dark, low-light environments. This network dome camera supports intelligent analytic software that enhances the camera's surveillance capabilities; users can program the camera to send alerts and updates to connected security systems when preprogrammed events are detected, such as simple motion detection during a set time period, or subjects crossing a digital line or entering/exiting a digitally marked area. Additionally, channel 1 will allow statistical analysis such as people counting, people flow counting, and crowd density monitoring.
The camera comes with 2 built-in microphones to capture audio of ambient noises as well as dialogue of monitored subjects and crowds. General functions also include watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, and more. The fixed dome design allows for easy installation and optimal positioning, making it suitable for a wide range of applications. This dual channel dome camera is also IP67 and IK10 certified for protection against the weather and vandalism.
- Dual-channel dome camera captures HD footage in 4MP (2880 x 1620 @30/25fps) resolution (per lens)
- Built-in IR cut filter and 130db WDR technology provide high-quality footage in low-light conditions
- Intelligent analytics enhance security monitoring capabilities with real time alerts
- Supports Ultra 265, H.265, H.264, MJPEG video compression formats
- IP67-rated for weatherproof performance and IK10 rated for durability against vandalism
- Powered via 12VDC power supply or PoE connection
- Fixed dome design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:

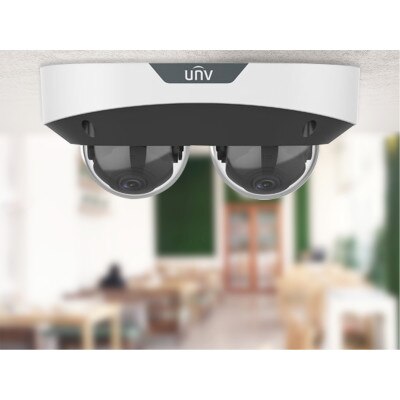

The Uniview 4MP Dual Lens Non-Splicing Dome Camera is ideal for surveillance installations where monitoring a large area with low-light conditions is a problem. It can be used to monitor two separate fields of views within a single area – for example, you can point one lens to monitor the entrance of your office building and point the second lens to monitor the back area, or other critical areas, ensuring the safety and security of your property. Since this dual-channel dome camera has a non-splicing design, installation will be easier since you won't have to worry about splicing cable to accommodate two separate cameras since the unit comes with 2 lenses built-in. The camera's detection capabilities, such as motion detection and tampering alarm, provide additional layers of security, making it a valuable tool for proactive surveillance.
In The Box:
- Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC3224SS-ADF28K-I1
- UPC: N/A
Camera
- Sensor: 1/3.0", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Color: 0.002 (F1.6, AGC ON)
- 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 to 1/100000s
- Adjustment Angle:
- Pan: 0° to 180°
- Tilt: 0° to 66°
- Rotate: 0° to 346°
- WDR: 130dB
- S/N: >52dB
Lens
- Lens Type 2.8mm@F1.6:
- Iris: Fixed
- Field Of View (H): 97.7°
- Field Of View (V): 52.7°
- Field Of View (O): 102.5°
- Lens Type 4.0mm@F1.6:
- Iris: Fixed
- Field Of View (H): 81.4°
- Field Of View (V): 43.4°
- Field Of View (O): 86.9
DORI Distance:
- 2.8mm Lens:
- Detect: 63.0m(206.7ft)
- Observe: 25.2m(82.7ft)
- Recognize: 12.6m(41.3ft)
- Identify: 6.3m(20.7ft)
- 4.0mm Lens:
- Detect: 90.0m(295.3ft)
- Observe: 36.0m(118.1ft)
- Recognize: 18.0m(59.1ft)
- Identify: 9.0m(29.5ft)
Illuminator
- IR Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP(2688 x 1520), Max 25fps; 4MP(2560 x 1440), Max 25fps; 3MP(2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps; 720P(1280 x 720) Max 30fps
- Sub Stream: 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps
- Third Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Streams: Triple streams
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/ Flip Vertical/ Flip Horizontal/180° /90° Clockwise/90° Anti-clockwise
- Dewarping: N/A
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring (Only Channel 1)
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-Way Audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile T, Profile G), API, SDK
- User/Host: Up to 32 users.
- 3 User Levels: Administrator, Common User and Operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation EZView EZLive
- Web Browser:
- Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O:
- Input: impedance 35kΩ; amplitude 2V [p-p]
- Output: impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O: 1/1
- Serial Port: N/A
- Built-in Mic: Built-in two Mics
- Built-in Speaker: N/A
- Wi-Fi: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
Certifications
- EMC:
- CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
- FCC (FCC 47 CFR part15 B)
- Safety:
- CE-LVD (EN 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
- Protection:
- IP67 (IEC 60529)
- IK10 (IEC 62262)
General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 6.0W
- Power Interface: Ø 5.5mm coaxial power plug

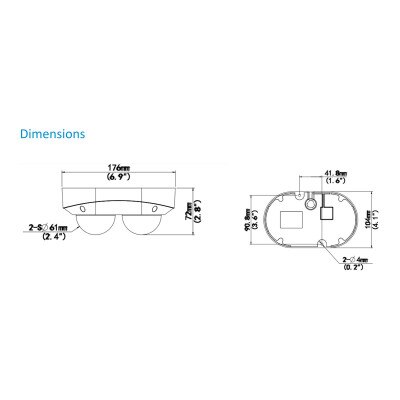

- Dimensions: 176 x 104 x 72mm (6.9" x 4.1" x 2.8")
- Net Weight: 0.62kg(1.37lb)
- Material: Metal
- Working Environment: -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: N/A
- Warranty: 3 Year
