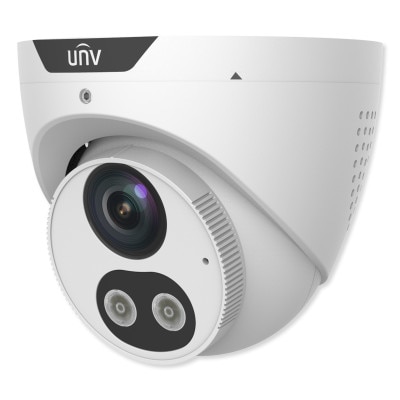

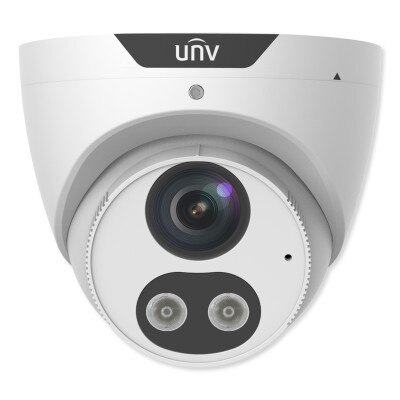

Uniview 4MP HD Tri-Guard Dual-Light Turret Camera, 2.8mm Fixed Lens
Product Description
The Uniview 4MP HD Tri-Guard Dual-Light Turret Camera with 2.8mm Fixed Lens is equipped with a 4MP 1/2.7" CMOS sensor to ensure every detail is captured in high definition. This camera is designed with advanced Tri-Guard technology, which combines various features such as Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence technologies to better monitor areas in complete darkness or challenging lighting conditions to help prevent crime at night and to ensure you get the best possible color images, no matter the lighting, and receive alerts when actual events occur due to accurately focusing on human and vehicles and not on animals in the frame or falling leaves that would typically cause false alarms. This 4mp turret camera is IP67 rated as weatherproof, making it suitable for both indoor and outdoor use, while the robust housing protects it from the elements. With dual-light technology and smart motion detection, this camera offers unmatched versatility, making your property safer and more secure.
- Captures HD footage in 4MP (2688x1520 @30fps) resolution and supports Ultra 265, H.265, H.264, MJPEG video compression
- Tri-Guard technology combines Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence to prevent false alarms and capture actual events
- Exceptional performance outdoors with weather-resistant IP67 rating
- 12V DC power supply (±25%) or connects via PoE (IEEE 802.3af)
- Fixed turret design allows for easier installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 4MP HD Tri-Guard Dual-Light Turret Camera is perfect for monitoring your home, whether you want to keep an eye on your front porch, driveway, or backyard. It's equally suitable for small businesses, providing comprehensive coverage for entrances, parking lots, or storage areas. The dual-light feature ensures detailed, full-color footage at night, which can deter intruders and provide crucial evidence if needed. With smart motion detection, you can receive instant notifications on your mobile device, allowing you to act quickly in case of unusual activity.
In The Box:
- Turret Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC3614SB-ADF28KMC-I0
- UPC: 810093320370
Camera
- Max Resolution: 4MP
- Sensor: 1/2.7" CMOS
- Minimum illumination:
- Colour: 0.002 lux ( F1.6, AGC ON)
- 0 Lux with light
- Shutter: Auto/Manual, 1 to 1/100000s
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 80°
- Rotate: 0° to 360°
- WDR (Wide Dynamic Range): 120dB
- S/N: >52dB
Lens
- Focal Length: 2.8mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View (H): 101.1°
- Field of View (V): 55.3°
- Field of View (D): 111.1°
- Lens Type: Fixed
DORI
- Lens (mm): 2.8
- Detect (m): 63.0 (206.7ft)
- Observe (m): 25.2 (82.7ft)
- Recognize (m): 12.6 (41.3ft)
- Identify (m): 6.3 (20.7ft)
Illuminator
- Supplemental Light: Dual light
- Illumination Distance (IR): 30 m (98.4 ft)
- Illumination Distance (Warm Light): 30 m (98.4 ft)
- Light On/Off Control: Auto/Manual
- Wavelength: 850 nm
Video
- Video Compression: Ultra265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps
- Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps
- Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Support
- Video Stream: Triple streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal, Flip Vertical, Flip Horizontal, 180° , 90° Clockwise, 90° Anti-clockwise
- Dewarping: N/A
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Statistical Analysis: N/A
- People Counting: Support People Flow Counting and Crowd Density Monitoring
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-Way Audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Web Browser:
- Plug-in Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
- Plug-in Free Live View: Chrome 57+, Firefox 58+, Edge 16+
Interface
- Audio I/O: N/A
- Alarm I/O: N/A
- Serial Port: N/A
- Built-in Mic: Support
- Built-in Speaker: Support
- Wi-Fi: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 7.5W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Ø4.4 x 3.7 inches (Ø111 x 95mm)
- Weight: 0.97lb (0.44kg)
- Material: Metal
- Working Environment:
- -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Storage Environment:
- -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: N/A
- Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Certifications
- EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
- Safety:
- CE LVD (EN 62368-1)
- CB (IEC 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529)
