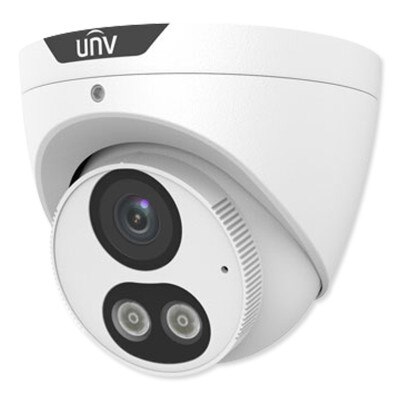

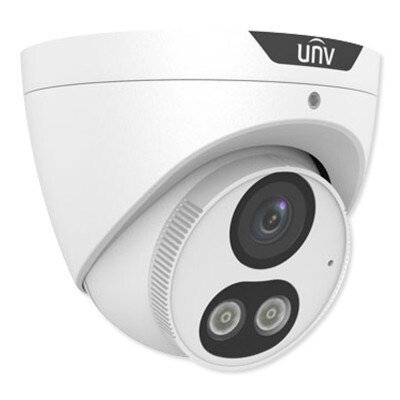

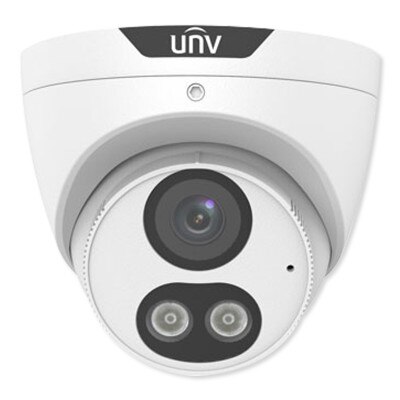

Uniview 5MP HD Eyeball Network Dome Camera, 2.8mm Fixed Lens
Product Description
The Uniview 5MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens, offers high-quality HD video surveillance in any lighting environment, especially when it's dark. This dome security camera monitors your property with a 5MP (2880x1620 @25fps) resolution high-sensitivity sensor that works with innovative technologies such as true WDR (Wide Dynamic Range) and ColorHunter technology to capture high-quality footage in dark, low-light environments. The camera supports 9:16 Corridor Mode, which changes the aspect ratio from 16 x 9 to 9 x 16 so you can monitor vertical areas such as hallways and aisles. Plus, the camera comes with a built-in microphone so you can listen to audio of captured footage, making it easier to know what exactly is going on during a recorded event. The camera also has a durable design with an IP67 rating, making it durable to withstand rainy weather.
- IP67 dome camera captures HD footage in 5MP (2880x1620 @25fps) resolution
- Supports Ultra 265, H.265, H.264, MJPEG compression
- Weather-resistant IP67-rated for exceptional performance outdoors
- Operates on a 12V DC power supply (±25%) or PoE connection
- Fixed dome design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 5MP HD Eyeball Network Fixed Dome Camera is an excellent choice for boosting your home security. Install it at your front door to monitor visitors and receive motion alerts when activity is detected. Place it in your backyard to watch over children, pets, or outdoor assets. It's also great for protecting garages, driveways, or other vulnerable areas. Business owners can utilize this camera to monitor entrances, parking lots, and storage areas. Its ability to perform in low-light conditions ensures you're always aware of what's happening, day or night.
In The Box:
- Dome Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC3615SE-ADF28KM-WL-I0
- UPC: 810093320745
Camera
- Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Minimum illumination: Colour: 0.001Lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 3° ~ 360°
- Tilt: 0° ~ 80°
- Rotate: 3° ~ 360°
- WDR (Wide Dynamic Range): 120dB
- S/N: >56dB
Lens
- Lens Type: 2.8mm@F1.0
- Angle of View: H: 102.0° V: 53.4° D: 121.0°
DORI
- Lens (mm): 2.8
- Detect (m): 63.0
- Observe (m): 25.2
- Recognize (m): 12.6
- Identify (m): 6.3
Illuminator
- LED Distance: Up to 30m (98ft)
- LED Number: 2
- LED On/Off Control: Auto/Manual
Video
- Video Compression: Ultra265, H.265, H.264, MJPEG
- Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 2MP (1920x1080), Max 30fps; 720P(1280x720), Max 30fps
- Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
- Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- ROI: Up to 8 areas
- Video Stream: Triple streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
- Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
- Digital Noise Reduction: 2D/3D DNR
- Smart Illumination: Support
- Flip: Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
- Dewarping: N/A
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
- Statistical Analysis: People counting, support tripwire people counting and area people counting
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711
- Audio Bitrate: 64 Kbps
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- Client:
- EZStation
- EZView
- EZLive
- Web Browser:
- Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O: N/A
- Alarm I/O: N/A
- RS485: N/A
- Built-in Mic: Support
- Built-in Speaker: N/A
- Wi-Fi: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 7.5W
- Power Interface: Ø 5.5mm coaxial power plug
- Dimensions (Ø x H): Ø4.4 x 3.7 inches (♦110.5 x 94.1mm)
- Weight: 0.97lb (0.44kg)
- Material: Metal
- Working Environment:
- -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Storage Environment:
- -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: N/A
Certifications
- EMC:
- FCC CFR 47 Part 15
- EN 55032:2015
- EN 55024:2010
- EN 61000-3-2:2014
- EN 61000-3-3-2013
- Safety:
- IEC 62368-1
- EN 62368-1
- UL 62368-1
- Environment: CE-ROHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- Protection: Ingression protection: IP67 (IEC 60529-2013)
