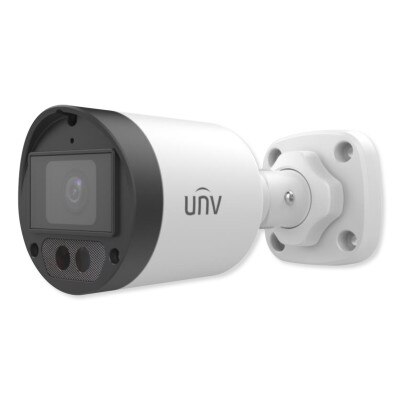

Uniview 5MP HD IR Bullet Analog Camera, Fixed 2.8mm Lens
Product Description
The Uniview 5MP HD IR Fixed Bullet Analog Camera with a 2.8mm lens delivers high-definition video surveillance, even in challenging lighting conditions. Its 5MP (2880x1620 @25fps) high-sensitivity sensor pairs with advanced features like DWDR (Digital Wide Dynamic Range), an IR-cut filter, and Light Hunter technology to provide clear, detailed footage in low-light or dark environments. The camera's 180-degree horizontal/vertical Flip function ensures proper image orientation, even when mounted upside down or at unusual angles. Additionally, the camera allows for communication with monitored subjects through the camera's built-in microphone and since the camera has a durable design with an IP67 and IK10 rating, it will be well protected against the weather and vandalism.
- Bullet camera captures HD footage in 5MP (2880x1620 @25fps) resolution
- Supports TVI / AHD / CVI / CVBS video output modes
- Weather-resistant IP67-rated for exceptional performance outdoors
- Operates on a 12V DC power supply (±25%) with built-in reverse polarity protection
- Fixed mini bullet design allows for easy, discreet installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 5MP HD IR Fixed Bullet Analog Camera with a 2.8mm lens is an excellent choice for enhancing security in and around your property. Monitor your front door to track deliveries and visitors, or use its wide-angle lens to oversee your driveway for a clear view of your vehicles. Install it in your backyard to keep an eye on children or pets at play, or set it up in a business environment to secure entrances and inventory areas. With sharp day-and-night video capture, this camera ensures reliable surveillance and peace of mind around the clock.
In The Box:
- Bullet Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: UAC-B125-AF28M
- UPC: 810093323050
Sensor
- Pixel: 5MP
- Size: 1/2.7"
- Minimum illumination:
- 0.005 lux (F1.6, AGC ON)
- 0 lux (IR on)
Lens
- Lens Type: 2.8mm
- Lens Mount: M12
- Angle of View: H: 109.1° V: 60.9° D: 126.7°
Illuminator
- Illuminator: Two IR illuminators
- Illumination Distance: 40m
- Lifetime: ≥60, 000 hours
Video
- Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
- Frame Rate:
- TVI:
- NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps
- AHD:
- NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps
- CVI:
- NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps
- CVBS:
- NTSC：1200x480
- PAL: 1200x576
- Shutter Time:
- NTSC: 1/30s–1/50000s
- PAL: 1/25s-1/50000s
- Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
- Day/Night: Three modes: Auto (default), Day, Night
- Noise Reduction: 2D
- White Balance: Two modes: Auto (default), Manual
- WDR (Wide Dynamic Range): DWDR
- Smart IR: Support
- Flip: Supports 180° horizontal flip, 180° vertical flip
Audio
- Microphone:
- TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
- Power: 5.5mm power interface
- Video Output: BNC, supports TVI / AHD / CVI / CVBS
Operating Environment
- Temperature: -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% (RH, non-condensing)
- Surge Protection: 4kV for power and video output interfaces
- Ingress Protection: IP67
- IK Rating: IK10
General
- Power: DC 12V(±25%), with reverse polarity protection, Max 3.3W
- Mount: Surface mount (default), optional tilted mounting bracket
- Dimensions (Ø x H): ♦109 x 83mm (♦4.2" x 3.3")
- Weight: 327g (0.82lb)
- Material: Metal
- Certification: CB, CE, FCC, UL
