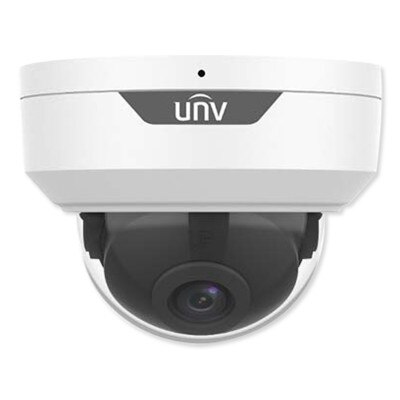

Uniview 5MP HD IR Dome Analog Camera, 2.8mm Fixed Lens
Product Description
The Uniview 5MP HD IR Fixed Dome Analog Camera, 2.8mm Lens monitors your property with a 5MP (2880x1620 @25fps) resolution high-sensitivity sensor that works together with various innovative technologies such as DWDR (Digital Wide Dynamic Range), an IR-cut filter, and Light Hunter technology to capture high-quality footage in dark, low-light environments. The camera includes a 180-degree horizontal/vertical Flip feature that allows the camera to digitally rotate the camera's image so you can view the footage correctly in instances when the camera is installed upside down or at a strange angle. The camera's built-in microphone allows for communication with monitored subjects. Its durable design meets IP67 and IK10 rating for protection against the weather and vandalism.
- IP67 dome camera captures HD footage in 5MP (2880x1620 @25fps) resolution
- Supports TVI / AHD / CVI / CVBS video output modes
- Weather-resistant IP67-rated for exceptional performance outdoors
- Vandal resistant IK10-rating adds protection against tampering
- Operates on a 12V DC power supply (±25%) with built-in reverse polarity protection
- Fixed dome design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 5MP HD IR Fixed Dome Analog Camera, 2.8mm Lens is perfect for enhancing security in various settings around your home. Use it to monitor your front door, keeping an eye on deliveries or visitors. Its wide-angle lens is excellent for overseeing your driveway, ensuring you have a clear view of your vehicles. Place it in your backyard to keep an eye on children or pets at play, or install it in a business setting to monitor entrances and inventory areas. Its ability to capture clear footage day or night ensures peace of mind, no matter the time.
In The Box:
- Dome Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: UAC-D125-AF28M
- UPC: 810093325894
Sensor
- Pixel: 5MP
- Size: 1/2.7"
- Minimum illumination:
- 0.005 lux (F1.6, AGC ON)
- 0 lux (IR on)
Lens
- Lens Type: 2.8mm
- Lens Mount: M12
- Angle of View: H: 109.1° V: 60.9° D: 126.7°
Illuminator
- Illuminator: One IR illuminator
- Illumination Distance: 30m
- Lifetime: ≥60, 000 hours
Video
- Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
- Frame Rate:
- TVI:
- NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps
- AHD:
- NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps
- CVI:
- NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps
- PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps
- CVBS:
- NTSC：1200x480
- PAL：1200x576
- Shutter Time:
- NTSC: 1/30s–1/50000s
- PAL: 1/25s-1/50000s
- Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
- Day/Night: Three modes: Auto (default), Day, Night
- Noise Reduction: 2D
- White Balance: Two modes: Auto (default), Manual
- WDR (Wide Dynamic Range): DWDR
- Smart IR: Support
- Flip: Supports 180° horizontal flip, 180° vertical flip
Audio
- Microphone:
- TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
- Power: 5.5mm power interface
- Video Output: BNC, supports TVI / AHD / CVI / CVBS
Operating Environment
- Temperature: -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% (RH, non-condensing)
- Surge Protection: 4kV for power and video output interfaces
- Ingress Protection: IP67
- IK Rating: IK10
General
- Power: DC 12V(±25%), with reverse polarity protection, Max 3.3W
- Mount: Surface mount (default), optional tilted mounting bracket

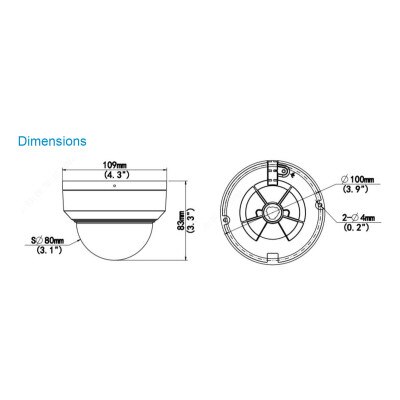

- Dimensions (Ø x H): ♦109 x 83mm (♦4.2" x 3.3")
- Weight: 327g (0.82lb)
- Material: Metal
- Certification: CB, CE, FCC, UL
