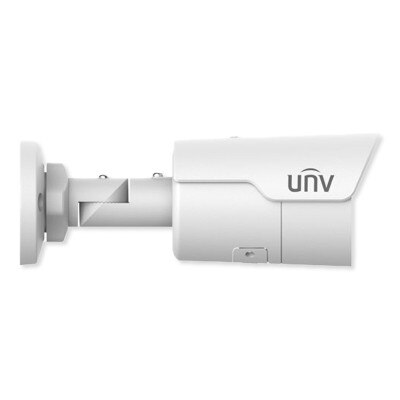

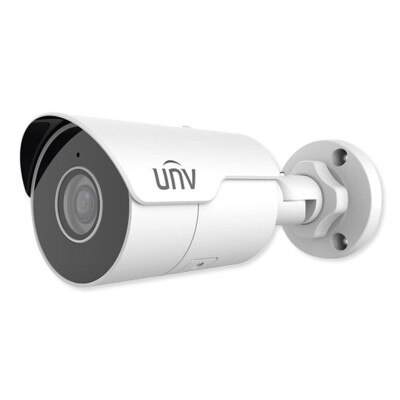

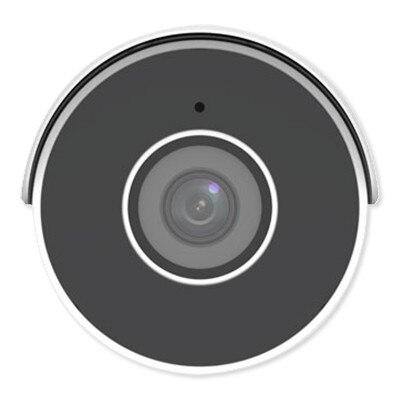

Uniview 5MP HD Mini IR Bullet Network Camera, 2.8mm Fixed Lens
Product Description
The Uniview 5MP HD Mini IR Fixed Bullet Network Camera, 2.8mm Lens, provides HD quality video surveillance in just about any lighting condition. This mini bullet security camera monitors your property with a 5MP (2880 x 1620p @ 25fps) resolution CMOS sensor that works together with various innovative technologies such as Lighthunter, 120dB true WDR, and an IR-cut filter to capture high-quality footage in dark, low-light environments. Monitor vertical areas such as hallways and aisles with the camera's 9:16 Corridor Mode to change the aspect ratio from 16 x 9 to 9 x 16. Communicate with monitored subjects though the camera's built-in microphone and speaker.
Additionally, this camera supports various behavior detection features such as cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection. General functions also include watermark, IP address filtering, access policy, ARP protection, RTSP authentication, and more. The fixed dome design allows for easy installation and optimal positioning, making it suitable for a wide range of applications.
- IP67 bullet camera captures HD footage in 5MP (2880 x 1620p @ 25fps) resolution
- Lighthunter technology ensures high image quality in low illumination environments
- Supports Ultra 265, H.265, H.264, MJPEG video compression formats
- 9:16 Corridor Mode changes aspect ratio from 16 x 9 to 9 x 16 to monitor vertical areas
- Weather-resistant IP67-rated for exceptional performance outdoors
- Powered via 12VDC power supply or PoE connection
- Fixed dome design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 5MP HD Mini IR Fixed Bullet Network Camera is ideal for surveillance installations in areas with low light conditions. It can be used to monitor the exterior of your home, or your businesses' entrances, parking lot, dark hallways or aisles, and other critical areas, ensuring the safety and security of your property. Its Lighthunter technology ensures that you can identify people, vehicles, and other important details even in low-light conditions. The camera's detection capabilities, such as motion detection and tampering alarm, provide additional layers of security, making it a valuable tool for proactive surveillance.
In The Box:
- Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC2125SR5-ADF28KM-G
- UPC: N/A
Camera
- Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
- Lens: 2.8mm@F1.6
- DORI Distance:
- Lens (mm): 2.8
- Detec (m) 63.0
- Observe (m): 25.2
- Recognize (m): 12.6
- Identify (m): 6.3
- Angle Of View:
- (H): 112.9°
- (V): 59.1°
- (O): 121.2°
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- Shutter: Auto/Manual, 1 to 1/100000s
- Minimum Illumination: Support LightHunter: Colour: 0.003 Lux ( F1.6, AGC ON) 0 Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Digital Noise Reduction: 2D/3D DNR
- S/N: >56dB
- IR Range: Up to 50m (164ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Defog: Digital Defog
- WDR: 120dB
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 5MP (2880 x 1620), Max 25fps; 4MP (2560 x 1440), Max 25fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps
- Sub Stream: 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps
- Video Bit Rate: 128 Kbps~16 Mbps
- 9:16 Corridor Mode: Supported
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Motion Detection: Up to 4 areas
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal/Vertical/Horizontal/180° /90° Clockwise/90° Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
Smart
- Behavior Detection: (Cross line, intrusion) based on human body detection, motion detection, tampering alarm, audio detection
- General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Network
- Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
- Client: EZStation EZView EZLive
- Web Browser:
- Plug-in Required Live View: IE9+, Chrome 41 and below, Firefox 52 and below
- Plug-in Free Live View: Chrome 57.0+, Firefox 58.0+, Edge 16+
Audio
- Audio Compression: G.711
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256 GB
- Network Storage: ANR, NAS(NFS)
Interface
- Network: 10/100M Base-TX Ethernet
- Built-in Mic: Supported
Certifications
- Certifications:
- UL: UL60950-1
- FCC: FCC Part 15
General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 6.0W
- Dimensions (Ø x H): ♦110.5 x 94.1mm (♦4.4" x 3.7")
- Net Weight: 0.43kg (0.95lb)
- Material: Metal
- Working Environment: -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Ingress Protection: IP67
- Reset Button: N/A
- Warranty: 3 Year
