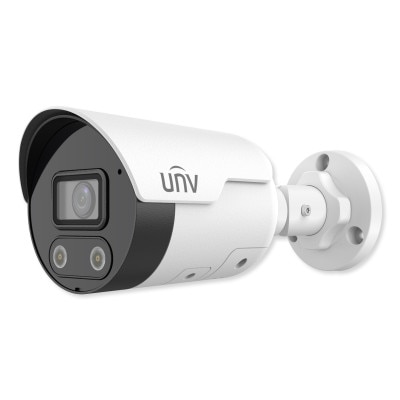

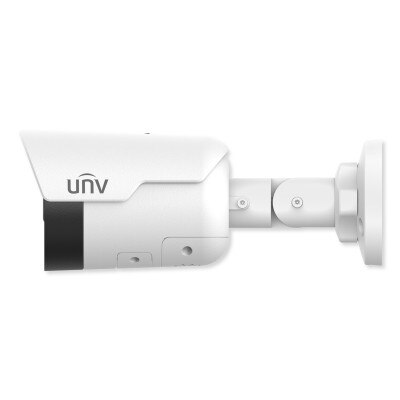

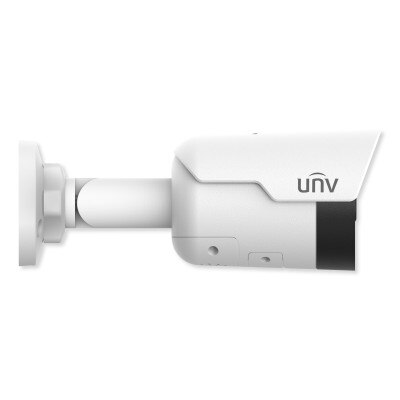

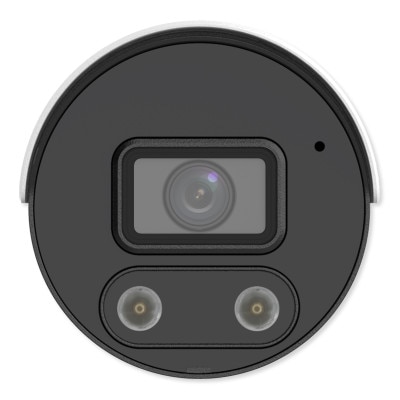

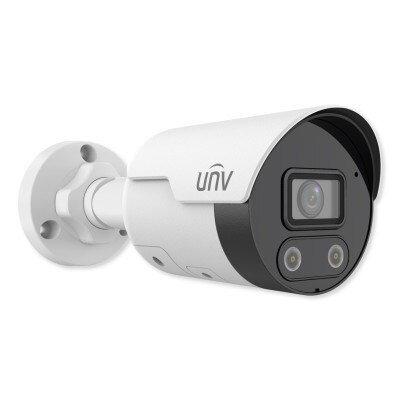

Uniview 5MP HD Tri-Guard Dual-Light Bullet Camera, 2.8mm Fixed Lens
Product Description
The Uniview 5MP HD Tri-Guard Dual-Light Bullet Camera with 2.8mm Fixed Lens is engineered with advanced technology for low light conditions and delivers crystal-clear video quality with its 5MP 1/2.7" CMOS sensor, ensuring every detail is captured in high definition. Its Tri-Guard functionality combines Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence, making it ideal for monitoring in complete darkness or challenging lighting conditions. Tri-Guard technology is ideal for preventing crime at night because it combines various UNV technologies such as Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence to ensure you get the best possible color images at night and receive alerts when actual events occur due to accurately focusing on human and vehicles and not on animals in the frame or falling leaves that would typically cause false alarms. The sleek bullet design is weatherproof, making it suitable for both indoor and outdoor use, while the robust housing protects it from the elements. With dual-light technology and smart motion detection, this camera offers unmatched versatility, making your property safer and more secure.

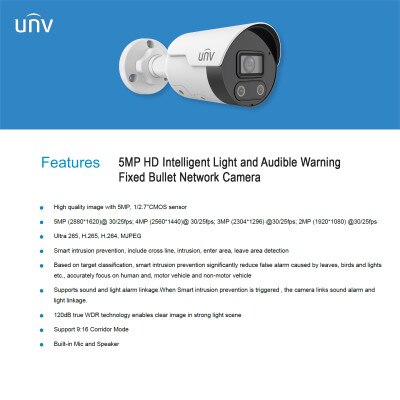

- IP67 bullet camera captures HD footage in 5MP (2880x1620 @25fps) resolution
- Supports Ultra 265, H.265, H.264, MJPEG video compression
- Tri-Guard technology combines Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence to prevent false alarms and capture actual events
- Weather-resistant IP67-rated for exceptional performance outdoors
- Operates on a 12V DC power supply (±25%) or PoE (IEEE 802.3af) connection
- Fixed bullet design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
This Uniview 5MP Bullet Camera is perfect for keeping your home or business safe day and night. Use it to monitor your front door and capture clear footage of visitors, even in low-light conditions. Place it in your backyard or parking lot to deter intruders and record activity around the clock. Its smart motion detection minimizes false alerts, making it an excellent choice for busy households or commercial spaces. Whether you're keeping an eye on deliveries, monitoring your property while away, or securing vulnerable areas, this camera provides peace of mind with its reliable performance.
In The Box:
- Bullet Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC2125SB-ADF28KMC-I0
- UPC: 810093328314
Camera
- Max Resolution: 5MP
- Sensor: 1/2.7" CMOS
- Minimum illumination:
- Colour: 0.001Lux (F1.0, AGC ON)
- 0 Lux with light
- Shutter: Auto/Manual, 1 to 1/100000s
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- WDR (Wide Dynamic Range): 120dB
- S/N: >52dB
Lens
- Focal Length: 2.8mm
- Iris Type: Fixed
- Iris: F1.6
- Field of View (H): 110.0°
- Field of View (V): 58.7°
- Field of View (D): 130°
- Lens Type: Fixed
DORI
- Lens (mm): 2.8
- Detect (m): 63.0 (206.7ft)
- Observe (m): 25.2 (82.7ft)
- Recognize (m): 12.6 (41.3ft)
- Identify (m): 6.3 (20.7ft)
Illuminator
- Supplemental Light: Dual light
- Illumination Distance (IR): 30 m (98.4 ft)
- Illumination Distance (Warm Light): 30 m (98.4 ft)
- Light On/Off Control: Auto/Manual
- Wavelength: 850 nm
Video
- Video Compression: Ultra265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps;
- Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
- Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal, Flip Vertical, Flip Horizontal, 180° , 90° Clockwise, 90° Anti-clockwise
- Dewarping: N/A
- HLC: Support
- BLC: Support
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Statistical Analysis: N/A
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Suppression: Support
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client: UNV-Link, UNV-Link Pro, EZStation
- Web Browser:
- Plug-in Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
- Plug-in Free Live View: Chrome 57+, Firefox 58+, Edge 16+
Interface
- Audio I/O: N/A
- Alarm I/O: N/A
- Serial Port: N/A
- Built-in Mic: Support
- Built-in Speaker: Support
- Wi-Fi: N/A
- Network: 1 RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
General
- Power: DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 11.5W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: 7.5(L) x 2.9(W) x 2.9(H) inches (191 x 75 x 74mm)
- Weight: 1.10lb (0.50kg)
- Material: Metal
- Working Environment:
- -22° F to 140° F (-30° C to 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Storage Environment:
- -22° F ~ 140° F (-30° C ~ 60° C)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
Certifications
- EMC:
- CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
- FCC (FCC 47 CFR part15 B)
- Safety:
- CE LVD (EN 62368-1)
- CB (IEC 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-ROHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- Protection: Ingression protection: IP67 (IEC 60529-2013)
