Uniview 8MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens
Product Description
The Uniview 8MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens, provides HD quality video surveillance in just about any lighting condition. This dome security camera monitors your property with a 8MP (3840x2160 @ 30/25fps) resolution CMOS sensor that works together with various innovative technologies such as 130dB true WDR and an IR-cut filter to capture high-quality footage in dark, low-light environments. Monitor vertical areas such as hallways and aisles with the camera' s 9:16 Corridor Mode to change the aspect ratio from 16x9 to 9x16. Communicate with monitored subjects though the camera' s built-in microphone and speaker.
This camera supports Smart Video Content Analysis (VCA) software that adds intelligent analytics and behavior detection features to your surveillance network such as cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection. It even has red and blue warning lights that will flash whenever the camera detects someone walking in front of the camera, providing a warning to keep unwanted intruders at bay.
- IP67 dome camera captures HD footage in 8MP (3840x2160 @ 30/25fps) resolution
- Supports Ultra 265, H.265, H.264, MJPEG video compression formats
- 9:16 Corridor Mode changes aspect ratio from 16x9 to 9x16 to monitor vertical areas
- Weather-resistant IP67-rated for exceptional performance outdoors
- Powered via 12VDC power supply or PoE connection
- Fixed dome design allows for easy installation and optimal positioning
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 8MP HD Fixed Dome Network Camera is ideal for surveillance installations in areas with low light conditions. It can be used to monitor the exterior of your home, or your businesses' entrances, parking lot, dark hallways or aisles, and other critical areas, ensuring the safety and security of your property. The camera' s detection capabilities, such as motion detection and tampering alarm, provide additional layers of security, making it a valuable tool for proactive surveillance.
In The Box:
- Dome Camera
- Mounting Hardware
- Manual
Notes:
- This device supports viewing and management via a web browser on a PC.
- Analytics compatible network video recorders (NVR) sold separately.
Tech Specs
- Part Number: IPC3638SS-ADF28KMC-I1
- UPC: N/A
- Warranty: 3 Year
Camera
- Sensor: 1/2.8", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination:
- Colour: 0.001 Lux (F1.0, AGC ON)
- 0Lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 80°
- Rotate: 0° to 360°
- WDR: 130dB
- S/N: >56dB
Lens
- Lens Type: 2.8mm@F1.0
- Iris: Fixed
- Field of View:
- (H): 106.5°
- (V): 57.9°
- (D): 132°
- DORI Distance:
- Lens (mm): 2.8
- Detec (m) 86.9
- Observe (m): 34.8
- Recognize (m): 17.4
- Identify (m): 8.7
Illuminator
- IR Range: Up to 30m (98ft) IR range
- Warm Light Range: Up to 30m (98ft) IR range
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Main Stream:
- Main Stream: 8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate: 128 Kbps to 16 Mbps
- U-Code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Triple streams
- Auto Scene Match (ASM): Support (Only WDR)
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
Intelligent
- Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
- Statistical Analysis: People counting, support people flow counting and crowd density monitoring
- Attribute Collection: SIP with color retrieval
Events
- Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
- General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-Way Audio: Supported
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 512GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host: Up to 32 Users.
- 3 User Levels: Administrator, Common User and Operator
- Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client: EZStation, EZView, EZLive
- Web Browser:
- Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O:
- Input: Impedance 35kΩ; amplitude 2V [p-p]
- Output: Impedance 600Ω; amplitude 2V [p-p]
- Alarm I/O: 1/1
- RS485: N/A
- Built-in Mic: Supported
- Built-in Speaker: Supported
- Wi-Fi: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- EMC:
- CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
- FCC (FCC 47 CFR part15 B)
- Safety:
- CE-LVD (EN 62368-1)
- CB (IEC 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
- Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 10.0W

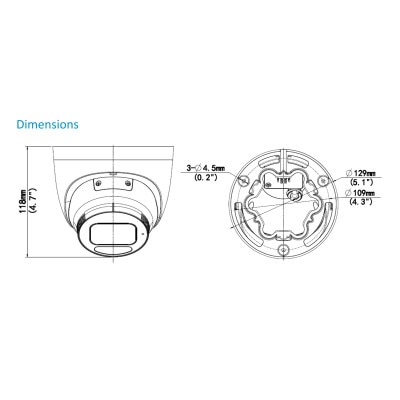

- Dimensions: ♦129 x 118mm (Ø5.1" x 4.7")
- Weight: 0.69kg (1.53lb)
- Material: Metal
- Working Environment: -22°F to 140°F (-30°C to 60°C), Humidity: ≤95% RH (non-condensing)
- Storage Environment: -22°F to 140°F (-30°C to 60°C), Humidity: ≤95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
- Web Client Language: 20 Languages
- Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
