Uniview Prime Series 32-Input 4K Network Video Recorder

$1,439.00
SKU: UNVNVR50432BP16

Temporarily unavailable for purchase. Please contact customer service for more information.

Shop More From Uniview

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Uniview Prime Series 32-Input 4K Network Video Recorder is a powerful network video recorder designed to save footage captured by connected security camera feeds and provide intelligent analytics to automatically identify and alert you when selected subjects or triggers are detected within live or recorded footage. This NVR model receives audio/video feeds between 480p to 4K resolution from up to 32 cameras and delivers them to up to 16 AV outputs. Built-in Smart Video Content Analysis (VCA) software greatly enhances the capabilities of your surveillance network with intelligent monitoring of captured footage for specific criteria, such as subjects moving into or out of certain areas, or detecting specific faces or vehicles. The included VCA software can be used when monitoring live recordings or reviewing saved footage for specialized surveillance tasks. Smart Video Content Analysis features can only be utilized when cameras that support those features are connected to the NVR. This NVR also includes four SATA ports to add separate storage devices or to other NVRs to greatly expand your surveillance network.

View live and stored video from your mobile device through the Uniview EZView web portal or the UNV-Link application for iOS and Android. From the app or the web portal software you can access Uniview surveillance products connected to the Internet and view live or recorded video, receive alarms and remotely manage cloud devices using your mobile phone.

Key Features:

  • NVR receives up to 32 AV channels from compatible IP cameras, allowing for expansive coverage of your home or business premises
  • Displays live or prerecorded footage to up to 16 outputs connected via HDMI or VGA cables
  • Records footage in up to ultra high-definition 4K video resolution captured by a wide range of IP cameras compatible with ONVIF or RTSP protocols
  • Smart Video Content Analysis features include motion detection, face and vehicle recognition, and line crossing detection for proactive security monitoring and faster playback review
  • Ultra 265 and H.265 Compression technology to optimize bandwidth usage and storage space without compromising video quality
  • Remote Access via UNV-Link mobile application or EZView web portal allows users to remotely view live and recorded footage from their NVR using a smartphone, tablet, or computer
  • Includes 38 languages to support international users

Why You Would Use This Product:

With the Uniview Prime Series 32-Input 4K Network Video Recorder, you can monitor your home or business with confidence, knowing that advanced facial recognition and smart analytics are working to keep your property safe. Whether you're looking to enhance security at your front door, monitor activity in your backyard, or keep an eye on sensitive areas indoors, this NVR offers the flexibility and scalability to meet your needs. Its remote access capabilities also allow you to stay connected and informed wherever you are, providing real-time updates and alerts on security events.

In The Box:

  • NVR Unit
  • Power Cable
  • Ethernet Cable
  • Quick Start Guide

Notes:

  • Hard drives not covered by 3-year warranty.
  • USB devices not included.
  • Mounting equipment sold separately.

Tech Specs

  • Part Number: NVR504-32B-P-16
  • UPC: N/A
  • Warranty: 3-Year; Hard drives not covered

Decoding

  • Decoding Format: Ultra 265, H.265, H.264
  • Decoding Capability:
    • NVR504‑32B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
    • H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
  • Audio Compression: G.711A, G.711U

Network

  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 160 Mbps
  • Remote Users: 128
  • Protocols: TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTP; 802.1x; IPV6
  • Browser (Plugin): Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

Audio / Video Output

  • HDMI Output: HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • RCA Audio Output: 1‑ch
  • Live View Display: 1/4/6/8/9/16
  • Corridor Mode Screen: 3/4/5/7/9/10/12/16

Audio / Video Input

  • IP Video Input: 32‑ch
  • RCA Audio Input: 1‑ch

Two-Way Audio

  • Two-Way Audio: 1‑ch, RCA(Using the audio input and output)

Snapshot

  • FTP/Schedule/Event Snapshot: 4‑ch snapshot, up to D1 resolution

Recording

  • Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
  • Synchronous Playback in Local: 16‑ch

Smart

  • VCA Detection by IPC: Face Detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
  • VCA Search: Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map
  • Smart by IPC: All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Alarms

  • General Alarms: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
  • Alert Alarms: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal

GUI Language

  • 38 Languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

  • SATA: 4 SATA Interfaces
  • Capacity: Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
  • Disk Group: Support
  • Redundant Storage: Support
  • Disk Array Type: RAID 1, 5

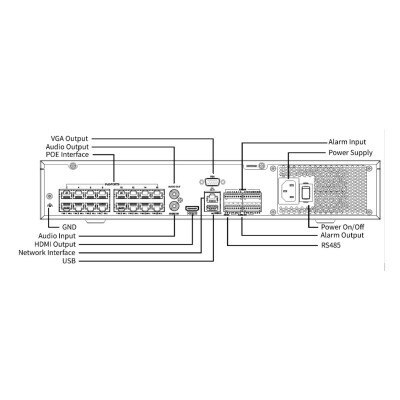

External Interface

  • Network Interface: 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
  • USB: Front panel: 1 x USB2.0; Rear panel: 1 x USB3.0
  • RS232: N/A
  • RS485: 1
  • Alarm In: 16‑ch
  • Alarm Out: 4‑ch
  • Power Supply: AC 100 to 240 V
  • Power Switch: Supported

PoE

  • Interface: 16 RJ45 10M/100M self‑adaptive Ethernet Interface
  • Max Power: Max 30W for single port, Max 150W in total
  • Supported Standard: IEEE 802.3at, IEEE 802.3af

Working Environment

  • Working Temperature: 14 to 131°F (‑10 to 55°C)
  • Working Humidity: ≤ 90% RH (non‑condensing)
  • Power Consumption (without HDD): ≤ 20W
  • Dimensions:
    • Weight (without HDD): ≤ 4Kg (8.82lb)
    • Dimensions: 400mm x 368mm x 74mm (15.7" x 14.5" x 2.9")
  • Certifications: CE; FCC; UL; RoHS; WEEE
    • CE: EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
    • FCC: Part 15 Subpart B
