X10 Push Button Relay Wall Switch

$31.50
SKU: XTWS469

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

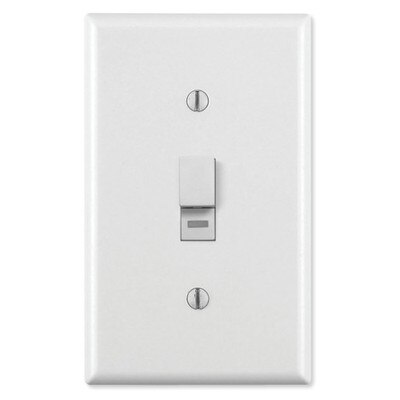

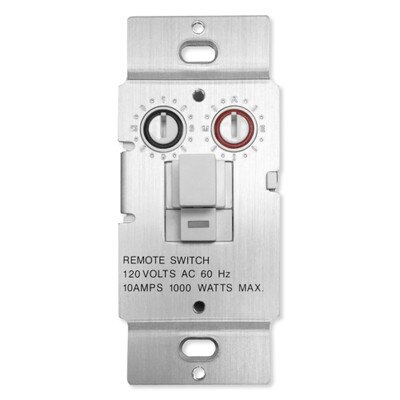

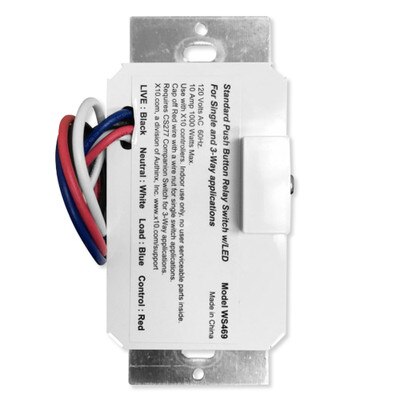

The Push Button Style X10 Relay Wall Switch replaces a normal wall switch to offer X10 On/Off control. The fits in a normal toggle style wall plate and connects to a load by using a neutral wire. The switch has a convenient LED system to let you know if the unit is on or off and will also help you find the switch in complete darkness! This relay wall switch works with all lighting including Incandescent, LED, Halogen, Fluorescent and more!

To install, simply replace your existing switch with the relay switch using a neutral wire, and set the dial to the housecode you want to give the unit and operate with your preferred X10 controller!

The unit is rated at 120 Volts 10 Amps / 1000 Watts

In The Box:

  • X10 Relay Switch

NOTE: Wallplate not included. Neutral wire required.

Tech Specs

  • Part Number: WS469
  • Dimensions: 4.8 x 3 x 3 inches
  • Max Voltage: 10 Amp; 1000 Watts
  • Warranty: 120 Day Limited

Product Docs
