Seco-Larm ENFORCER 30W PoE Injector
Product Description
The Seco-Larm ENFORCER 30W PoE Injector connects to a network switch and can supply power and deliver data via Cat5e/Cat6 cables to a PoE device such as an IP camera, IP access control device, and other PoE enabled device. It supports 10/100/1000BASE-T PoE devices and converts 100 to 240 VAC to low voltage DC.
- Supports 10/100/1000BASE-T PoE devices and up to 30W on 2-pairs
- LEDs indicate power supply input and PoE output
- Easy Plug-and-Play installation with internal AC/DC converter
- Overcurrent, overload, overvoltage, and anti-interference protection
- Supports Cat5e/Cat6 network cables
- Compliant with IEEE 802.3af/at standard
Why You Would Use This Product:

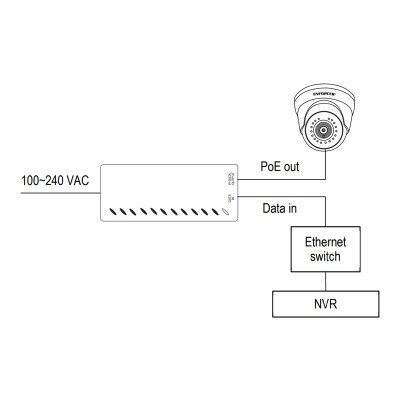

The Seco-Larm ENFORCER 30W PoE Injector is the perfect solution for enhancing the way your networking system is powered and connected because you'll be able to deliver data signals and supply power to a PoE device via the use of Cat5e or Cat6 cables. For example, you can use it to deliver data and supply power from a connected Ethernet switch to an IP camera or an IEEE 802.3af/at compliant network accessory without the use of an external power supply, making installation easier in areas where a power outlet isn't nearby.
In The Box:
- 30W PoE+ Injector
- Manual
Tech Specs
- Part Number: NJ-A301U-T6AQ
- Operating Voltage: 100 to 240 VAC
- Connections:
- Data In: 1 x Shielded RJ45
- PoE Out: 1 x Shielded RJ45
- PoE Power Output: Up to 52VDC, 30W
- Power Link: Pin 1/2 (–), 3/6 (+) up to 30W
- Network Cables: Cat5e or higher
- Protection: Overcurrent, overload, overvoltage, anti-interference
- Ethernet Speed: 10/100/1000 Mbps
- LED Indicators: Green – power in, red – power out
- Operating Humidity: 90% (Maximum, non-condensing)
- Operating Temperature: 14° to 104° F (-10° to 40°C)
- Dimensions: 4-3/4 x 2 x 1-7/16 inches (121 x 50 x 36 mm)
- Certifications: FCC, CE, RoHS
- Warranty: 1 Year
