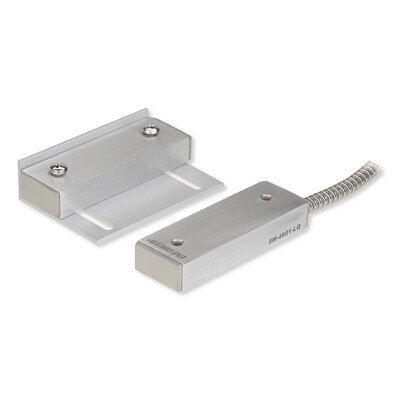

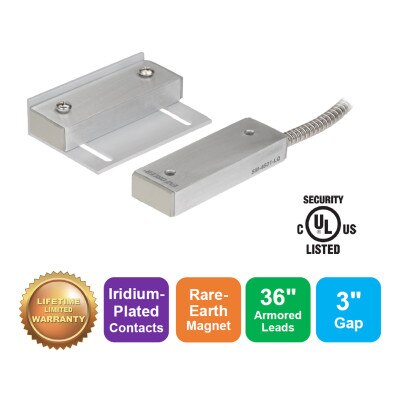

Seco-Larm Industrial Wide-Gap Magnetic Contact, 3" Gap, Closed Loop, UL Listed
Product Description
The Seco-Larm Industrial Wide-Gap Magnetic Contact, 3" Gap, Closed Loop, UL Listed adds remote monitoring of a large open/close object that has a wider than normal gap between the object and the frame. Both the contact switch and the magnet are protected by a waterproof aluminum housing for long lasting usage. The contact switch is also designed to handle high electrical currents for years.
- Weatherproof contact switch for wide-gap (3 inch/76mm) applications
- IP54 weather-resistant aluminum housing sealed for outdoor use
- Iridium-plated magnetic contact has high melting point and Vickers hardness for higher power handling and long life
- 36" (91cm) wire leads enclosed in armored cable
Why You Would Use This Product:
This industrial grade magnetic contact is designed for wide-gap, closed loop applications where either the open/close object is oversized or the gap between the open/close object and the frame or building is larger than normal.
In The Box:
- Magnet
- Contact Switch
- Mounting Bracket
- Installation Hardware
Tech Specs
- Part Number: SM-4601-LQ
- UPC: 676544016014
- Loop Type: N.C.
- Operation Gap: 3" (76mm)
- Case Material: Aluminum
- Terminal Material: 36" (91cm) armored leads
- Contacts: Iridium-plated
- Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
- Operating Temperature: -15° to 160° F (-25° to 70° C)
- Switch Cycles: 50 Million (0.1mA@5VDC)

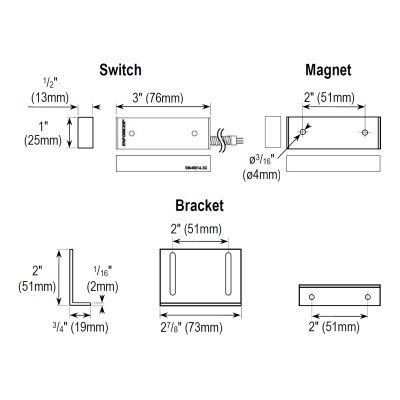

- Switch Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
- Magnet Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
- Magnet Type: Rare-earth neodymium
- IP Rating: Weather-resistant IP54
- Warranty: Limited Lifetime
