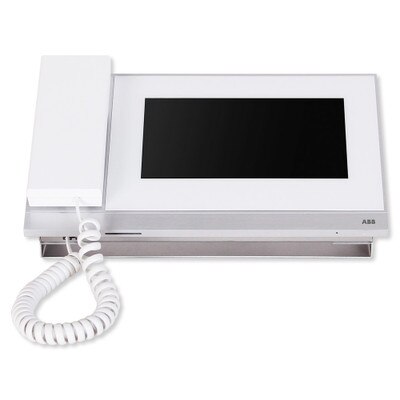

ABB-Welcome IP Guard Unit
Product Description
The ABB-Welcome IP Guard Unit works as a video indoor station designed to provide access to various services using its intuitive icon menu on the touchscreen. It communicates with the ABB-Welcome IP touch panel, outdoor station, or another guard unit. It works as an ideal security monitoring unit for a home's central location or a property's security guard location.
- Can display surveillance video from outdoor stations or IP cameras
- Intercept call functionality to increase the security and service
- Can unlock all doors or dedicated doors in case of emergency
- Receives the alarms and panic calls (SOS) from the IP touch panel
In The Box:
- ABB-Welcome IP Guard Unit
- Manual
NOTES: If using PoE, you need to use PoE standard: 802.3af(-2003), which guarantees that each port on the switch delivers 15.4 Watts per port, enough to power all ABB-Welcome IP devices. The ABB-Welcome IP Guard Unit is only compatible with ABB-Welcome IP devices.
Tech Specs
- Part Number: H8303
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 230 mA
- 24 V DC, 260 mA
- Operating Temperature: 14°F to 131°F (-10 °C to +55 °C)
- Display Size: 7 inches
- Resolution: 1024 x 600 pixels
- PoE Standard: IEEE802.3 af
- Network Connection Standard: IEEE 802.3, 10Base-T/100Base-TX, auto MDI/MDI-X
- Dimensions: 10.4 x 6.50 x 4.5 inches (265 x 165 x 115 mm)
