ABB-Welcome IP Video Outdoor Station, White
Product Description
The ABB Welcome IP Video Outdoor Station, White, serves as an end device for the communication with the IP touch panel, guard unit, or property management. It features an audio/video module, pushbutton module, transponder, and LAN connectivity with PoE.
- HD video streaming (720P) with 130 degree angle
- Super anti-fog coating and in-built heater
- LED indicator for real-time status
- Pushbutton could be programmed as you want (switch on lighting, call indoor station or guard unit)
- Bright back-lit ensures clear nameplate at night time
In The Box:
- Video/Audio Module
- Pushbutton Module
- Station Frame
- Manual
Notes: Requires a connection to a router (sold separately) and an Internet connection. Requires use with a video indoor station, sold separately. Installation hardware and printing on nameplate not included. Mounting boxes for surface mounting or flush-mounted installation sold separately. If using PoE, you need to use PoE standard: 802.3af(-2003), which guarantees that each port on the switch delivers 15.4 Watts per port, enough to power all Welcome IP devices. Requires a myABB-LivingSpace account and connection to the ABB-Welcome IP Gateway (part # 83342-500-01) in order to gain remote access with your smartphone via the ABB-Welcome App.
Tech Specs
- Part Number:

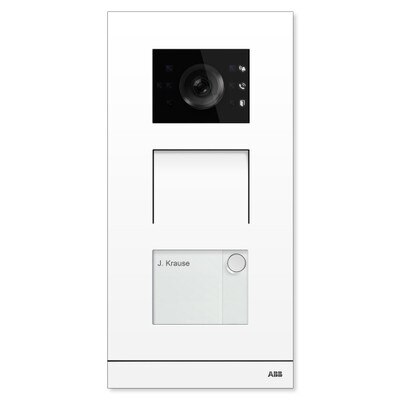

- H81381P1-W (1 Button)

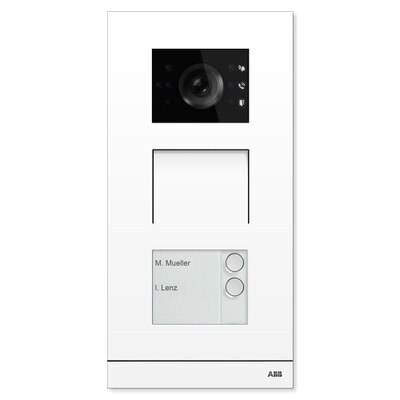

- H81381P2-W (2 Button)

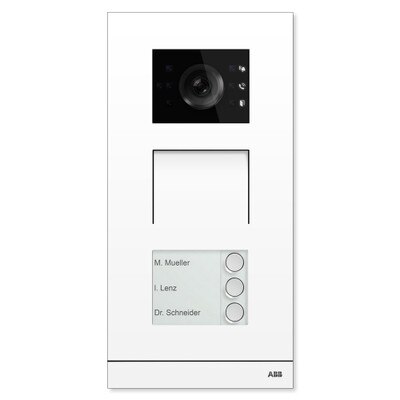

- H81381P3-W (3 Button)
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 410 mA
- 24 V DC, 450 mA
- Operating Temperature: -4° F to 131° F (-20° C to +55° C)
- Display Type: LCD
- Display Size: 2.55 x 4.25 inches (64.8 x 108 mm)
- Camera Type: CMOS
- Camera Viewing Angle: 130°
- Resolution Ratio: HD (1280 x 720 pixel)
- Power Supply for Door Opener: 18 V, 4 A impulse, max. 250 mA holding
- Floating Output for Door Opener:
- 230 V AC, 3 A
- 30 V DC, 3 A
- Video Codec: H.264
- Audio Codec: G.711
- IP Level: IP 54
- IK Level: IK 07
- Network Connection Standard: IEEE 802.3, 10Base-T/100Base-TX, auto MDI/MDI-X
- Dimensions: 5.32 x 13.74 x 0.69 inches (135 x 276.9 x 17.6 mm)
- Warranty: 2 Years
