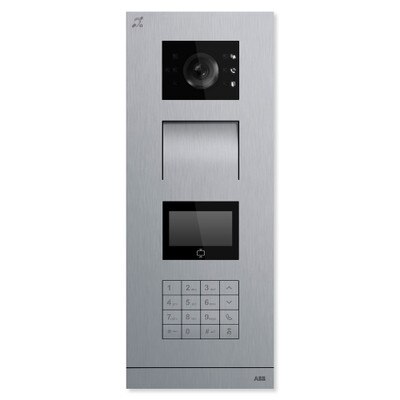

ABB-Welcome IP Video Outdoor Station, w/Keypad and Induction Loop, Stainless Steel

$717.00 to $1,407.84

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

The ABB-Welcome IP Video Outdoor Station, w/ Keypad and Induction Loop, Stainless Steel is a pre-assembled outdoor station for the ABB-Welcome IP system that uses LAN connections for data and power transmission. This outdoor intercom allows for audio communications with residents indoors, who can see and talk to guests in front of the Outdoor Station. Intercom calls can be initiated by the resident at an indoor station or by the visitor at the outdoor station by using the keypad. The station also features a built-in induction loop to make conversations more clear for those with hearing assistive devices.

  • Provides two-way communication with indoor stations
  • Activated by indoor station or built-in pushbutton module
  • Induction loop emits audio signals to users with hearing aids to ensure clear communication
  • Opens door with proximity card/tag (DESFire, NFC, or IC)
  • Live video feed viewable on video indoor station(s)
  • PoE connectivity eliminates the use of separate power supply cables
  • Dustproof and waterproof (IP54 rated), vandal proof (IK07 rated)

In The Box:

  • Outdoor Station
  • Station Frame
  • Manual

NOTES: Requires a connection to a router (sold separately) and an Internet connection. Requires use with a video indoor station, sold separately. Installation hardware and printing on nameplate not included. Mounting boxes for surface mounting or flush-mounted installation sold separately. Requires a myABB-LivingSpace account and connection to the ABB-Welcome IP Gateway (part # 83342-500-01) in order to gain remote access with your smartphone via the ABB-Welcome App.

Tech Specs

  • Part Number:
    • With ID Card Reader: H81383K-S
    • With IC Card Reader: H81384K-S
  • Rating Voltage: 24 V DC
  • Operating Voltage Range: 20-27 V DC
  • Rating Current:
    • 27 V DC, 410 mA
    • 24 V DC, 450 mA
  • Operating Temperature: -20 °C…+55 °C
  • Display Type: LCD
  • Display Size: 2.55 x 4.25 inches (64.8 x 108 mm)
  • Camera Type: CMOS
  • Camera Viewing Angle: 130°
  • Resolution Ratio: HD (1280 x 720 pixel)
  • Power Supply for Door Opener: 18 V, 4 A impulse, max. 250 mA holding
  • Floating Output for Door Opener:
    • 230 V AC, 3 A
    • 30 V DC, 3 A
  • Video Codec: H.264
  • Audio Codec: G.711
  • Ratings and Certifications: IP54, IK07
  • Network Connection Standard: IEEE 802.3, 10Base-T/100Base-TX, auto MDI/MDI-X
  • Dimensions: 5.32 x 13.74 x 0.69 inches (135 x 276.9 x 17.6 mm)
  • Warranty: 2 Years
